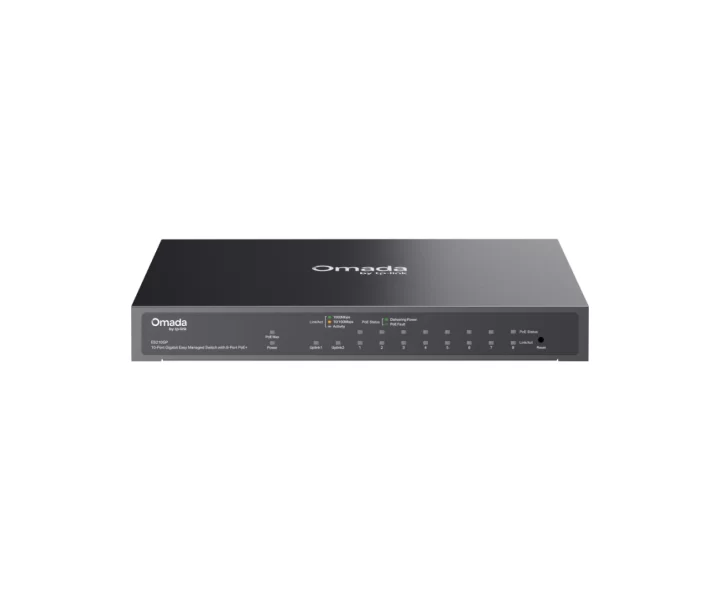

Omada ES210GP özellikleri ve fiyatları

Omada ES210GP teknik özellikleri

Model kodu

ES210GP

Anahtar türü

Agile

Ethernet bağlantıları

• 8× 10/100/1000 Mbps PoE+ RJ45 Ports (802.3af/at-compliant PoE+)• 1× 10/100/1000 Mbps RJ45 Port• 1× Gigabit SFP/RJ45 Combo Port• Auto-Negotiation/Auto MDI/MDIX

İletim yöntemi

Store-And-Forward

MAC adres tablosu

8K

Paket arabelleği

4 Mbit

Jumbo çerçeve

15 KB

Güç kaynağı

AC/DC Adapter (Input: 100-240V AC; Output: 53.5V DC/1.31A)

Boyutlar

8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

Soğutma fanları

Fanless

VLAN özellikleri

• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID

Hizmet kalitesi özellikleri

• Port-based/802.1p/DSCP QoS △ • 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control

Çoklu yayın özellikleri

• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave / Report Suppression

Katman 2 özellikleri

• Link Aggregation- Static Link Aggregation- Up to 4 aggregation groups and up to 6 ports per group• Port Isolation• Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP• IEEE 802.3az EEE

Sertifikalar

FCC, CE

Kutu içeriği

• ES210GP• Power Adapter• Power Cord• Mounting Feet• Installation Guide

Merkezi yönetim

• Omada Cloud-Based Controller (Requires built-in version 6.1.0 or later)• Omada Hardware Controller (Requires built-in version 6.1.0 or later)• Omada Software Controller (Requires built-in version 6.1.0 or later)

Bulut erişimi

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Temassız kurulum

Yes. Requires the use of Omada Cloud-Based Controller

app Support

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Fiziksel güvenlik

√

Aşırı gerilim koruması

±6kV

Fansız tasarım

Var

PoE güç koşulları

• Standard: 802.3af/at PoE+ compliant• PoE Ports: 8 ports• PoE Budget: 63W available for all PoE+ ports, 30W max per port• Fast PoE & Perpetual PoE• PoE Auto Recovery ‡ • Up to 250m PoE transmission distance**

PoE desteği

Var

Toplam PoE bütçesi

63 W

Anahtarlama kapasitesi

20 Gbps

Paket iletme hızı

14.88 Mpps

Çalışma sıcaklığı

-5℃~40℃ (23℉~104℉)•

Saklama sıcaklığı

-40℃~70℃ (-40℉~158℉)•

Çalışma nemi

10%~90% non-condensing•

Depolama nemi

5%~90% non-condensing

Üreticinin ayrıntılı teknik bilgileri

Interface: • 8× 10/100/1000 Mbps PoE+ RJ45 Ports (802.3af/at-compliant PoE+)• 1× 10/100/1000 Mbps RJ45 Port• 1× Gigabit SFP/RJ45 Combo Port• Auto-Negotiation/Auto MDI/MDIX, Fan Quantity: Fanless, Installation: • Desktop• Wall Mount, Physical Security Lock: √, Power Supply: AC/DC Adapter (Input: 100-240V AC; Output: 53.5V DC/1.31A), PoE Ports (RJ45): • Standard: 802.3af/at PoE+ compliant• PoE Ports: 8 ports• PoE Budget: 63W available for all PoE+ ports, 30W max per port• Fast PoE & Perpetual PoE• PoE Auto Recovery ‡ • Up to 250m PoE transmission distance**, Dimensions ( W x D x H ): 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm), Surge Protection: ±6kV, Packet Buffer Memory: 4 Mbit, Jumbo Frame: 15 KB, Switching Capacity: 20 Gbps, Packet Forwarding Rate: 14.88 Mpps, MAC Address Table: 8K, Quality of Service: • Port-based/802.1p/DSCP QoS △ • 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control, L2 Features: • Link Aggregation- Static Link Aggregation- Up to 4 aggregation groups and up to 6 ports per group• Port Isolation• Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP• IEEE 802.3az EEE, L2 Multicast: • IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave / Report Suppression, VLAN: • 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID, Transmission Method: Store-And-Forward, Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller., Centralized Management: • Omada Cloud-Based Controller (Requires built-in version 6.1.0 or later)• Omada Hardware Controller (Requires built-in version 6.1.0 or later)• Omada Software Controller (Requires built-in version 6.1.0 or later), Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller., Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller, Management Features: • HTTPS/HTTP• DHCP Client• Cable Diagnostics• ONVIF***• Automatic Device Discovery † • Batch Configuration † • Batch Firmware Upgrading † • Unified Configuration †, Certification: FCC, CE, Package Content: • ES210GP• Power Adapter• Power Cord• Mounting Feet• Installation Guide, Environment: • Operating Temperature: -5℃~40℃ (23℉~104℉)• Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing
