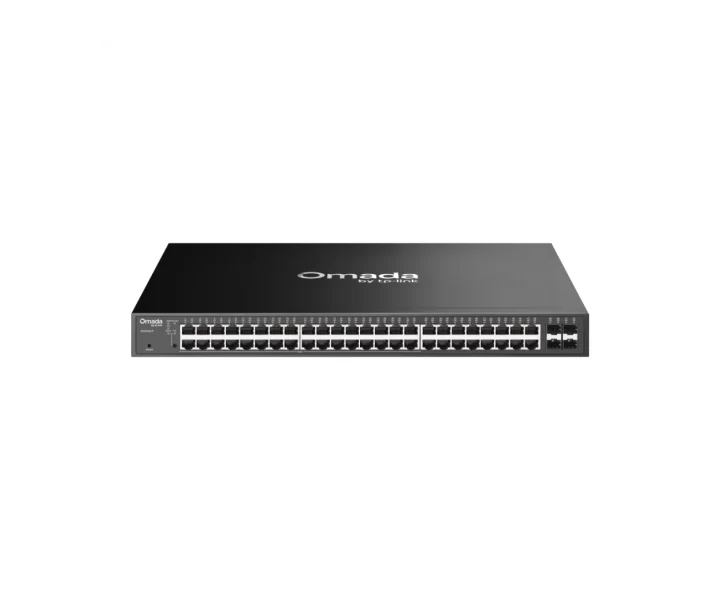

Omada SG2452LP özellikleri ve fiyatları

Omada SG2452LP teknik özellikleri

Model kodu

SG2452LP

Anahtar türü

Access

Ethernet bağlantıları

• 32× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)• 16× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)• 4× Gigabit SFP Slots

MAC adres tablosu

16 K

Paket arabelleği

12 Mbit

Jumbo çerçeve

9 KB

Güç kaynağı

100-240V AC, 50/60 Hz

Güç tüketimi koşulları

• 283.8 W (220 V/50 Hz @ 25 °C) (with 230 W PD connected)• 294.1 W (110 V/60 Hz @ 25 °C) (with 230 W PD connected)

En yüksek ısı yayılımı

• 964.82 BTU/hr (220 V/50 Hz @ 25 °C) (with 230 W PD connected)• 1000.08 BTU/hr (110 V/60 Hz @ 25 °C) (with 230 W PD connected)

Boyutlar

17.3×13.0×1.7 in (440×330×44 mm)

Kurulum biçimi

Rack Mountable

Soğutma fanları

Fanless

VLAN özellikleri

• VLAN Group: Max. 4K VLAN Groups• 802.1Q tag VLAN• MAC VLAN: 12 Entries• Protocol VLAN• GVRP• Voice VLAN

Hizmet kalitesi özellikleri

• 802.1p CoS/DSCP priority• 8 priority queues• Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control: Port/Flow-based Rating Limit• Smoother Performance• Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control

Güvenlik özellikleri

• AAA• 802.1X- Port based authentication- MAC (Host) based authentication- Authentication Method includes PAP/EAP-MD5- MAB- Guest VLAN- Radius authentication and accountability support • IP/IPv6-MAC Binding- 512 Binding Entries- DHCP Snooping- DHCPv6 Snooping- ARP Inspection- ND Detection- ND Snooping• IP Source Guard- 253 Entries- Source IP+Source MAC• IPv6 Source Guard- 183 Entries- Source IPv6 Address+Source MAC• DoS Defend• DHCP Filter• Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port• Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode• Port Isolation• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv1/SSHv2• IP/Port/MAC-based access control

Çoklu yayın özellikleri

• Supports 511 (IPv4, IPv6) IGMP groups• IGMP Snooping• Multicast VLAN Registration (MVR)• Multicast Filtering• Multicast Listener Discovery (MLD) Snooping- MLD v1/v2 Snooping- Fast Leave- MLD Snooping Querier- Static Group Config• Limited IP Multicast (256 profiles and 16 entries per profile)

Sertifikalar

CE, FCC

Kutu içeriği

• SG2452LP• Power Cord• Mounting Brackets• Mounting Feet• Screws• Installation Guide

Ek anahtarlama özellikleri

• Automatic Device Discovery † • Batch Configuration † • Batch Firmware Upgrading † • Intelligent Network Monitoring † • Abnormal Event Warnings † • Unified Configuration † • Reboot Schedule †

Sistem gereksinimleri

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Erişim denetim listeleri

• Support up to 230 entries• Time-Range• Time-based ACL• MAC ACL• IP ACL• IPv6 ACL• Combined ACL• Rule Operation: Permit/Deny• Policy Action - Mirroring - Redirect - Rate Limit - QoS Remark• ACL Rules Binding - Port Binding - VLAN Binding• Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark

Desteklenen MIB tanımları

• MIB II (RFC1213)• Bridge MIB (RFC1493)• P/Q-Bridge MIB (RFC2674)• Radius Accounting Client MIB (RFC2620)• Radius Authentication Client MIB (RFC2618)• Remote Ping, Traceroute MIB (RFC2925)• Support TP-Link private MIBs• RMON MIB(RFC1757, rmon 1,2,3,9)

Merkezi yönetim

• Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later)• Omada Hardware Controller (Requires built-in version 5.15.20 or later)• Omada Software Controller (Requires built-in version 5.15.20 or later)

Bulut erişimi

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Temassız kurulum

Yes. Requiring the use of Omada Cloud-Based Controller.

app Support

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Fiziksel güvenlik

√

Aşırı gerilim koruması

±6 kV

Fansız tasarım

Var

PoE güç koşulları

• Standard: 802.3at/af compliant• PoE+ Ports: 32 Ports (up to 30 W PoE Output per Port)• PoE Power Budget: 230 W*• Fast PoE & Perpetual PoE

PoE desteği

Var

Toplam PoE bütçesi

230 W

Anahtarlama kapasitesi

104 Gbps

Paket iletme hızı

77.37 Mpps

Çalışma sıcaklığı

-5 ̊C–40 ℃ (23 °F–104 ℉);•

Saklama sıcaklığı

-40 °C–70 ℃ (-40 °F–158 ℉)•

Çalışma nemi

10%–90% RH non-condensing•

Depolama nemi

5%–90% RH non-condensing

Üreticinin ayrıntılı teknik bilgileri

Interface: • 32× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)• 16× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)• 4× Gigabit SFP Slots, Fan Quantity: Fanless, Physical Security Lock: √, Power Supply: 100-240V AC, 50/60 Hz, PoE Ports (RJ45): • Standard: 802.3at/af compliant• PoE+ Ports: 32 Ports (up to 30 W PoE Output per Port)• PoE Power Budget: 230 W*• Fast PoE & Perpetual PoE, Dimensions ( W x D x H ): 17.3×13.0×1.7 in (440×330×44 mm), Surge Protection: ±6 kV, Mounting: Rack Mountable, Max. Power Consumption: • 283.8 W (220 V/50 Hz @ 25 °C) (with 230 W PD connected)• 294.1 W (110 V/60 Hz @ 25 °C) (with 230 W PD connected), Max Heat Dissipation: • 964.82 BTU/hr (220 V/50 Hz @ 25 °C) (with 230 W PD connected)• 1000.08 BTU/hr (110 V/60 Hz @ 25 °C) (with 230 W PD connected), Packet Buffer Memory: 12 Mbit, Jumbo Frame: 9 KB, Switching Capacity: 104 Gbps, Packet Forwarding Rate: 77.37 Mpps, MAC Address Table: 16 K, Quality of Service: • 802.1p CoS/DSCP priority• 8 priority queues• Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control: Port/Flow-based Rating Limit• Smoother Performance• Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control, L2 and L2+ Features: • 32 IPv4/IPv6 Interfaces• Static Routing - 32 IPv4/IPv6 Static Routes• DHCP Server• DHCP Relay- DHCP Interface Relay- DHCP VLAN Relay• DHCP L2 Relay• Static ARP• Proxy ARP• Gratuitous ARP• Link Aggregation• Spanning Tree Protocol• Loopback Detection• 802.3x Flow Control• Mirroring• Device Link Detect Protocol (DLDP)• 802.1ab LLDP/ LLDP-MED, L2 Multicast: • Supports 511 (IPv4, IPv6) IGMP groups• IGMP Snooping• Multicast VLAN Registration (MVR)• Multicast Filtering• Multicast Listener Discovery (MLD) Snooping- MLD v1/v2 Snooping- Fast Leave- MLD Snooping Querier- Static Group Config• Limited IP Multicast (256 profiles and 16 entries per profile), Advanced Features: • Automatic Device Discovery † • Batch Configuration † • Batch Firmware Upgrading † • Intelligent Network Monitoring † • Abnormal Event Warnings † • Unified Configuration † • Reboot Schedule †, VLAN: • VLAN Group: Max. 4K VLAN Groups• 802.1Q tag VLAN• MAC VLAN: 12 Entries• Protocol VLAN• GVRP• Voice VLAN, Access Control List: • Support up to 230 entries• Time-Range• Time-based ACL• MAC ACL• IP ACL• IPv6 ACL• Combined ACL• Rule Operation: Permit/Deny• Policy Action - Mirroring - Redirect - Rate Limit - QoS Remark• ACL Rules Binding - Port Binding - VLAN Binding• Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark, Security: • AAA• 802.1X- Port based authentication- MAC (Host) based authentication- Authentication Method includes PAP/EAP-MD5- MAB- Guest VLAN- Radius authentication and accountability support • IP/IPv6-MAC Binding- 512 Binding Entries- DHCP Snooping- DHCPv6 Snooping- ARP Inspection- ND Detection- ND Snooping• IP Source Guard- 253 Entries- Source IP+Source MAC• IPv6 Source Guard- 183 Entries- Source IPv6 Address+Source MAC• DoS Defend• DHCP Filter• Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port• Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode• Port Isolation• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv1/SSHv2• IP/Port/MAC-based access control, IPv6: • IPv6 Static Routing and ACL• IPv4/IPv6 Dual Stack• IPv6 Interface• Multicast Listener Discovery (MLD) Snooping• IPv6 neighbor discovery (ND)• Path maximum transmission unit (MTU) discovery• Internet Control Message Protocol (ICMP) version 6• TCPv6/UDPv6• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP, MIBs: • MIB II (RFC1213)• Bridge MIB (RFC1493)• P/Q-Bridge MIB (RFC2674)• Radius Accounting Client MIB (RFC2620)• Radius Authentication Client MIB (RFC2618)• Remote Ping, Traceroute MIB (RFC2925)• Support TP-Link private MIBs• RMON MIB(RFC1757, rmon 1,2,3,9), Omada App: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller., Centralized Management: • Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later)• Omada Hardware Controller (Requires built-in version 5.15.20 or later)• Omada Software Controller (Requires built-in version 5.15.20 or later), Cloud Access: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller., Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller., Management Features: • Web-based GUI• Command Line Interface (CLI) through telnet• SNMPv1/v2c/v3• SNMP Trap/Inform• RMON (1,2,3,9 groups)• SDM Template• DHCP/BOOTP Client• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• EEE• SNTP• System Log• Dying Gasp• ONVIF• Digital Diagnostic Monitoring (DDM), Certification: CE, FCC, Package Content: • SG2452LP• Power Cord• Mounting Brackets• Mounting Feet• Screws• Installation Guide, System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux., Environment: • Operating Temperature: -5 ̊C–40 ℃ (23 °F–104 ℉);• Storage Temperature: -40 °C–70 ℃ (-40 °F–158 ℉)• Operating Humidity: 10%–90% RH non-condensing• Storage Humidity: 5%–90% RH non-condensing
