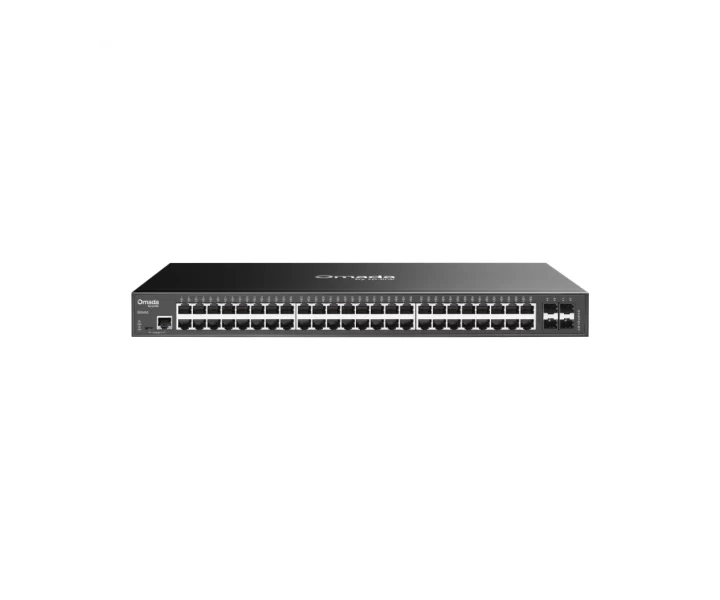

Omada SG3452 özellikleri ve fiyatları

Omada SG3452 teknik özellikleri

Model kodu

SG3452

Anahtar türü

Access

Ethernet bağlantıları

• 48× 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)• 4× 100/1000 Mbps SFP Slots• 1× RJ45 Console Port• 1× Micro-USB Console Port

MAC adres tablosu

16 K

Paket arabelleği

12 Mbit

Jumbo çerçeve

9 KB

Güç kaynağı

100-240 V AC, 50/60 Hz

Güç tüketimi koşulları

• 34.4 W (220 V/50 Hz)• 34.9 W (110 V/60 Hz)

En yüksek ısı yayılımı

• 117.17 BTU/hr (220 V/50 Hz)• 118.87 BTU/hr (110 V/60 Hz)

Boyutlar

17.3×8.7×1.7 in (440×220×44 mm)

Kurulum biçimi

Rack Mountable

Soğutma fanları

Fanless

VLAN özellikleri

• VLAN Group: Max 4K VLAN Groups• 802.1q Tagged VLAN• MAC VLAN: 48 Entries• Protocol VLAN: Protocol Template 16, Protocol VLAN 16• GVRP• VLAN VPN (QinQ): Port-Based QinQ; Selective QinQ• Voice VLAN

Hizmet kalitesi özellikleri

• 8 priority queues• 802.1p CoS/DSCP priority• Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR• Bandwidth Control: Port/Flow based Rating Limiting• Smoother Performance• Action for Flows: QoS remark (802.1P Remark, DSCP Remark)

Güvenlik özellikleri

• IP-MAC-Port Binding - 512 Entries - DHCP Snooping - Dynamic ARP Inspection (DAI) - IPv4 Source Guard: 100 Entries• IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard: 100 Entries• DoS Defend• DHCP Filter• Static/Dynamic Port Security: Up to 64 MAC addresses per port• Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode• 802.1X- Port-based authentication- Mac-base authentication- VLAN Assignment- MAB- Guest VLAN- Radius authentication and accountability support • AAA (including TACACS+)• Port Isolation• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv1/SSHv2• IP/Port/MAC-based access control

Çoklu yayın özellikleri

• Supports 511 (IPv4, IPv6) IGMP groups• IGMP Snooping• IGMP Authentication• Multicast VLAN Registration (MVR)• MLD Snooping• Multicast Filtering: 256 profiles and 16 entries per profile

Sertifikalar

CE, FCC

Kutu içeriği

• SG3452 Switch• Power Cord• Console Cable• Mounting Brackets• Mounting Feet• Screws• Installation Guide

Ek anahtarlama özellikleri

• Automatic Device Discovery † • Batch Configuration † • Batch Firmware Upgrading † • Intelligent Network Monitoring † • Abnormal Event Warnings † • Unified Configuration † • Reboot Schedule † ISP Features *:• Layer 2 Protocol Tunneling (L2PT)• Digital Diagnostic Monitoring(DDM)• Device Link Detect Protocol (DLDP)• PPPoE ID Insertion• sFlow• ERPS

Sistem gereksinimleri

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Erişim denetim listeleri

• Time-based ACL• MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type• IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS, User Priority• Combined ACL• Packet Content ACL• IPv6 ACL• Policy: Mirroring, Redirect, Rate Limit, QoS Remark• ACL apply to Port/VLAN

Desteklenen MIB tanımları

• MIB II (RFC1213)• Interface MIB (RFC2233)• Ethernet Interface MIB (RFC1643)• Bridge MIB (RFC1493)• P/Q-Bridge MIB (RFC2674)• RMON MIB (RFC2819)• RMON2 MIB (RFC2021)• RADIUS Accounting Client MIB (RFC2620)• RADIUS Authentication Client MIB (RFC2618)• Remote Ping, Traceroute MIB (RFC2925)• Support TP-Link Private MIB

Merkezi yönetim

• Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later)• Omada Hardware Controller (Requires built-in version 5.15.20 or later)• Omada Software Controller (Requires built-in version 5.15.20 or later)

Bulut erişimi

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Temassız kurulum

Yes. Requiring the use of Omada Cloud-Based Controller.

app Support

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Fiziksel güvenlik

√

Aşırı gerilim koruması

±6 kV

SFP yuvaları

4 port

Fansız tasarım

Var

Anahtarlama kapasitesi

104 Gbps

Paket iletme hızı

77.38 Mpps

Çalışma sıcaklığı

-5 ̊C–50 ℃ (23 °F–122 ℉);•

Saklama sıcaklığı

-40 °C–70 ℃ (-40 °F–158 ℉)•

Çalışma nemi

10%–90% RH non-condensing•

Depolama nemi

5%–90% RH non-condensing

Üreticinin ayrıntılı teknik bilgileri

Interface: • 48× 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)• 4× 100/1000 Mbps SFP Slots• 1× RJ45 Console Port• 1× Micro-USB Console Port, Fan Quantity: Fanless, Physical Security Lock: √, Power Supply: 100-240 V AC, 50/60 Hz, Dimensions ( W x D x H ): 17.3×8.7×1.7 in (440×220×44 mm), Surge Protection: ±6 kV, Mounting: Rack Mountable, Max. Power Consumption: • 34.4 W (220 V/50 Hz)• 34.9 W (110 V/60 Hz), Max Heat Dissipation: • 117.17 BTU/hr (220 V/50 Hz)• 118.87 BTU/hr (110 V/60 Hz), Packet Buffer Memory: 12 Mbit, Jumbo Frame: 9 KB, Switching Capacity: 104 Gbps, Packet Forwarding Rate: 77.38 Mpps, MAC Address Table: 16 K, Quality of Service: • 8 priority queues• 802.1p CoS/DSCP priority• Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR• Bandwidth Control: Port/Flow based Rating Limiting• Smoother Performance• Action for Flows: QoS remark (802.1P Remark, DSCP Remark), L2 and L2+ Features: • 32 IPv4/IPv6 Interfaces• Static Routing: 48 Static Routes• Static ARP: 128 static entries• 512 ARP Entries• Proxy ARP• Gratuitous ARP• DHCP Server• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay• DHCP L2 Relay• Link Aggregation• Spanning Tree Protocol• Loopback Detection• 802.3x Flow Control• Mirroring, L2 Multicast: • Supports 511 (IPv4, IPv6) IGMP groups• IGMP Snooping• IGMP Authentication• Multicast VLAN Registration (MVR)• MLD Snooping• Multicast Filtering: 256 profiles and 16 entries per profile, Advanced Features: • Automatic Device Discovery † • Batch Configuration † • Batch Firmware Upgrading † • Intelligent Network Monitoring † • Abnormal Event Warnings † • Unified Configuration † • Reboot Schedule † ISP Features *:• Layer 2 Protocol Tunneling (L2PT)• Digital Diagnostic Monitoring(DDM)• Device Link Detect Protocol (DLDP)• PPPoE ID Insertion• sFlow• ERPS, VLAN: • VLAN Group: Max 4K VLAN Groups• 802.1q Tagged VLAN• MAC VLAN: 48 Entries• Protocol VLAN: Protocol Template 16, Protocol VLAN 16• GVRP• VLAN VPN (QinQ): Port-Based QinQ; Selective QinQ• Voice VLAN, Access Control List: • Time-based ACL• MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type• IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS, User Priority• Combined ACL• Packet Content ACL• IPv6 ACL• Policy: Mirroring, Redirect, Rate Limit, QoS Remark• ACL apply to Port/VLAN, Security: • IP-MAC-Port Binding - 512 Entries - DHCP Snooping - Dynamic ARP Inspection (DAI) - IPv4 Source Guard: 100 Entries• IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard: 100 Entries• DoS Defend• DHCP Filter• Static/Dynamic Port Security: Up to 64 MAC addresses per port• Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode• 802.1X- Port-based authentication- Mac-base authentication- VLAN Assignment- MAB- Guest VLAN- Radius authentication and accountability support • AAA (including TACACS+)• Port Isolation• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv1/SSHv2• IP/Port/MAC-based access control, IPv6: • IPv6 Dual IPv4/IPv6• Multicast Listener Discovery (MLD) Snooping• IPv6 ACL• IPv6 Interface• Static IPv6 Routing• IPv6 neighbor discovery (ND)• Path maximum transmission unit (MTU) discovery• Internet Control Message Protocol (ICMP) version 6• TCPv6/UDPv6• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP, MIBs: • MIB II (RFC1213)• Interface MIB (RFC2233)• Ethernet Interface MIB (RFC1643)• Bridge MIB (RFC1493)• P/Q-Bridge MIB (RFC2674)• RMON MIB (RFC2819)• RMON2 MIB (RFC2021)• RADIUS Accounting Client MIB (RFC2620)• RADIUS Authentication Client MIB (RFC2618)• Remote Ping, Traceroute MIB (RFC2925)• Support TP-Link Private MIB, Omada App: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller., Centralized Management: • Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later)• Omada Hardware Controller (Requires built-in version 5.15.20 or later)• Omada Software Controller (Requires built-in version 5.15.20 or later), Cloud Access: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller., Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller., Management Features: • Web-based GUI• Command Line Interface (CLI) through console port, telnet• SNMPv1/v2c/v3- Trap/Inform- RMON (1, 2, 3, 9 groups)• SDM Template• DHCP/BOOTP Client• 802.1ab LLDP/LLDP-MED• DHCP AutoInstall• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• EEE• Password Recovery• SNTP• System Log• Dying Gasp• ONVIF, Certification: CE, FCC, Package Content: • SG3452 Switch• Power Cord• Console Cable• Mounting Brackets• Mounting Feet• Screws• Installation Guide, System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux., Environment: • Operating Temperature: -5 ̊C–50 ℃ (23 °F–122 ℉);• Storage Temperature: -40 °C–70 ℃ (-40 °F–158 ℉)• Operating Humidity: 10%–90% RH non-condensing• Storage Humidity: 5%–90% RH non-condensing
