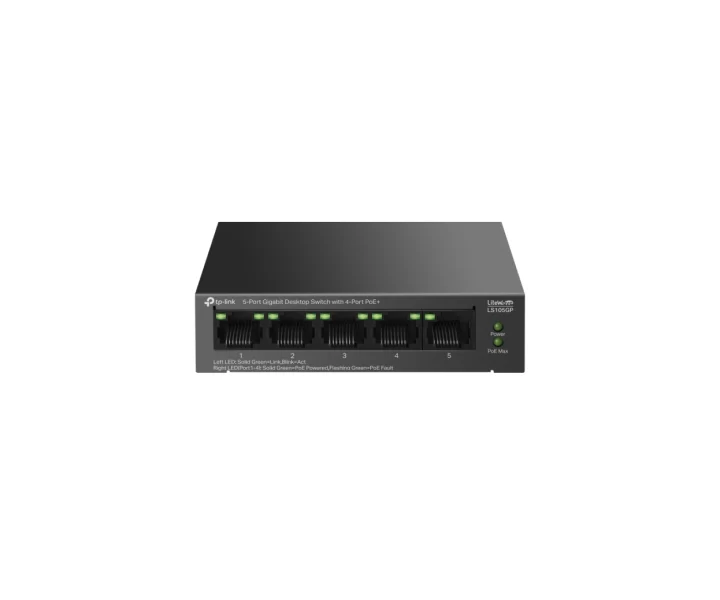

TP-Link LS105GP özellikleri ve fiyatları

TP-Link LS105GP teknik özellikleri

Model kodu

LS105GP

Anahtar türü

Unmanaged

Ethernet bağlantıları

• 5× 10/100/1000Mbps RJ45 Ports (Ports 1–4 supports 802.3af/at PoE+)• AUTO Negotiation• AUTO MDI/MDIX

Desteklenen ağ kabloları

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)

İletim yöntemi

Store-And-Forward

MAC adres tablosu

2K

Jumbo çerçeve

16 KB

Güç kaynağı

External Power Adapter (Output: 53.5 VDC / 1.31 A)

Güç tüketimi koşulları

• 4 W (220/50 Hz. no PD connected)• 74.46 W (220/50 Hz. with 65 W PD connected)

En yüksek ısı yayılımı

• 13.6 BTU/h (no PD connected)• 253.16 BTU/h (with 65 W PD connected)

Boyutlar

3.9×3.9×1.0 in (99.8×98×25 mm)

Soğutma fanları

Fanless

Sertifikalar

FCC, CE

Kutu içeriği

• LS105GP• Power Adapter• Installation Guide

Ek anahtarlama özellikleri

• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)• PoE Auto Recovery Button (Ports 1-4)• Compatible With IEEE 802.3af/at Compliant PDs• Mac Address Auto-Learning and Auto-Aging• IEEE 802.3x Flow Control• 802.1p/DSCP QoS• IGMP Snooping

RJ45 bağlantıları

5 port

Fansız tasarım

Var

PoE güç koşulları

• Standard: 802.3 af/at compliant• PoE Ports: Ports 1–4, up to 30 W PoE output per port• Power Supply: 65 W

PoE desteği

Var

Anahtarlama kapasitesi

10 Gbps

Paket iletme hızı

7.44 Mpps

Çalışma sıcaklığı

0–40 ℃ (32–104 ℉);•

Saklama sıcaklığı

-40–70 ℃ (-40–158 ℉)•

Çalışma nemi

10–90% RH non-condensing•

Depolama nemi

5–90% RH non-condensing

Üreticinin ayrıntılı teknik bilgileri

Interface: • 5× 10/100/1000Mbps RJ45 Ports (Ports 1–4 supports 802.3af/at PoE+)• AUTO Negotiation• AUTO MDI/MDIX, Network Media: • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m), Fan Quantity: Fanless, Installation: • Desktop• Wall Mounting, Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A), PoE Ports (RJ45): • Standard: 802.3 af/at compliant• PoE Ports: Ports 1–4, up to 30 W PoE output per port• Power Supply: 65 W, Dimensions ( W x D x H ): 3.9×3.9×1.0 in (99.8×98×25 mm), Max. Power Consumption: • 4 W (220/50 Hz. no PD connected)• 74.46 W (220/50 Hz. with 65 W PD connected), Max Heat Dissipation: • 13.6 BTU/h (no PD connected)• 253.16 BTU/h (with 65 W PD connected), Jumbo Frame: 16 KB, Switching Capacity: 10 Gbps, Packet Forwarding Rate: 7.44 Mpps, MAC Address Table: 2K, Advanced Features: • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)• PoE Auto Recovery Button (Ports 1-4)• Compatible With IEEE 802.3af/at Compliant PDs• Mac Address Auto-Learning and Auto-Aging• IEEE 802.3x Flow Control• 802.1p/DSCP QoS• IGMP Snooping, Transmission Method: Store-And-Forward, Certification: FCC, CE, Package Content: • LS105GP• Power Adapter• Installation Guide, Environment: • Operating Temperature: 0–40 ℃ (32–104 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
