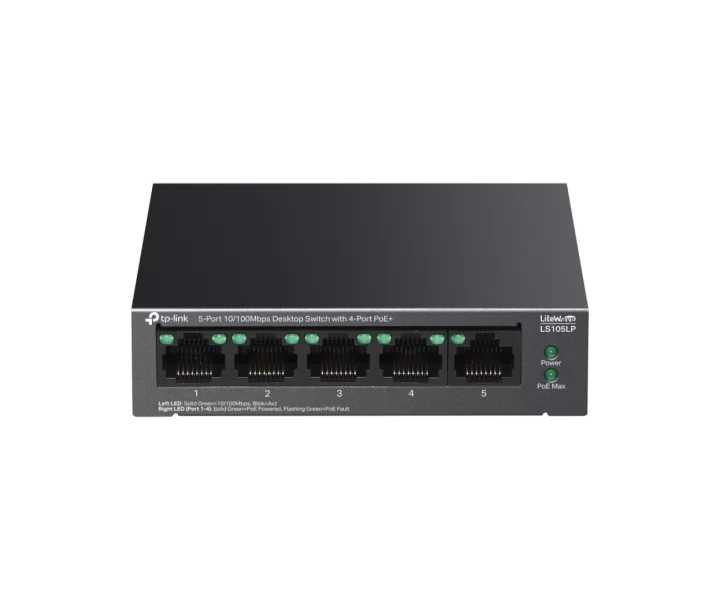

TP-Link LS105LP özellikleri ve fiyatları

TP-Link LS105LP teknik özellikleri

Model kodu

LS105LP

Anahtar türü

Unmanaged

Ethernet bağlantıları

• 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3at PoE Ports)• AUTO Negotiation• AUTO MDI/MDIX

Desteklenen ağ kabloları

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)

İletim yöntemi

Store and Forward

MAC adres tablosu

2K

Jumbo çerçeve

2 KB

Güç kaynağı

External Power Adapter (Output: 53.5VDC / 0.81A)

Güç tüketimi koşulları

• 2.40 W (220 V/50 Hz no PD connected)• 46.45 W (220 V/50 Hz with 41 W PD connected)

En yüksek ısı yayılımı

• 8.15 BTU/h (220 V/50 Hz no PD connected) • 157.93 BTU/h (220 V/50 Hz with 41 W PD connected)

Boyutlar

3.9×3.9×1.0 in (100×98×25 mm)

Soğutma fanları

Fanless

LED göstergeleri

• Power• Link/Act• PoE Status• PoE MAX

Sertifikalar

CE, FCC

Kutu içeriği

• LS105LP• Power Adapter• Installation Guide

Ek anahtarlama özellikleri

• Extend Mode: Ports 1–4• PoE Auto Recovery: Ports 1-4• Compatible With IEEE 802.3af/at Compliant PDs• Mac Address Auto-Learning and Auto-Aging• IEEE 802.3x Flow Control

RJ45 bağlantıları

5 port

Fansız tasarım

Var

PoE güç koşulları

• Standard: 802.3 at compliant• PoE Ports: Ports 1–4, up to 30 W PoE output per port• Power Supply: 41 W

PoE desteği

Var

Anahtarlama kapasitesi

1 Gbps

Paket iletme hızı

0.744 Mpps

Çalışma sıcaklığı

0–40 ℃ (32–104 ℉)•

Saklama sıcaklığı

-40–70 ℃ (-40–158 ℉)•

Çalışma nemi

10–90% RH non-condensing•

Depolama nemi

5–90% RH non-condensing

Üreticinin ayrıntılı teknik bilgileri

Interface: • 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3at PoE Ports)• AUTO Negotiation• AUTO MDI/MDIX, Network Media: • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m), Fan Quantity: Fanless, Installation: • Desktop• Wall Mounting, Power Supply: External Power Adapter (Output: 53.5VDC / 0.81A), LED: • Power• Link/Act• PoE Status• PoE MAX, PoE Ports (RJ45): • Standard: 802.3 at compliant• PoE Ports: Ports 1–4, up to 30 W PoE output per port• Power Supply: 41 W, Dimensions ( W x D x H ): 3.9×3.9×1.0 in (100×98×25 mm), Max. Power Consumption: • 2.40 W (220 V/50 Hz no PD connected)• 46.45 W (220 V/50 Hz with 41 W PD connected), Max Heat Dissipation: • 8.15 BTU/h (220 V/50 Hz no PD connected) • 157.93 BTU/h (220 V/50 Hz with 41 W PD connected), Jumbo Frame: 2 KB, Switching Capacity: 1 Gbps, Packet Forwarding Rate: 0.744 Mpps, MAC Address Table: 2K, Advanced Features: • Extend Mode: Ports 1–4• PoE Auto Recovery: Ports 1-4• Compatible With IEEE 802.3af/at Compliant PDs• Mac Address Auto-Learning and Auto-Aging• IEEE 802.3x Flow Control, Transmission Method: Store and Forward, Certification: CE, FCC, Package Content: • LS105LP• Power Adapter• Installation Guide, Environment: • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
