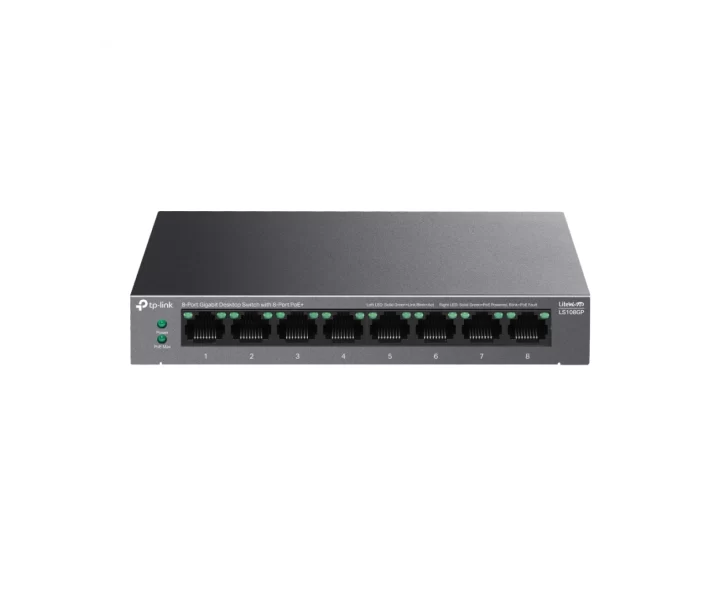

TP-Link LS108GP özellikleri ve fiyatları

TP-Link LS108GP teknik özellikleri

Model kodu

LS108GP

Anahtar türü

Unmanaged

Ethernet bağlantıları

• 8× 10/100/1000Mbps RJ45 Ports (Ports 1–8 supports 802.3af/at PoE+)• AUTO Negotiation• AUTO MDI/MDIX

Desteklenen ağ kabloları

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)

İletim yöntemi

Store-And-Forward

MAC adres tablosu

4K

Jumbo çerçeve

16 KB

Güç kaynağı

External Power Adapter (Output: 53.5 VDC / 1.31 A)

Güç tüketimi koşulları

• 5.53 W (220 V/50 Hz. no PD connected)• 71.61 W (220 V/50 Hz. with 62 W PD connected)

En yüksek ısı yayılımı

• 18.81 BTU/h (220 V/50 Hz. no PD connected)• 243.47 BTU/h (220 V/50 Hz. with 62 W PD connected)

Boyutlar

6.2×3.9×1.0 in (158×99×25 mm)

Soğutma fanları

Fanless

Sertifikalar

FCC, CE

Kutu içeriği

• LS108GP• Power Adapter• Installation Guide

Ek anahtarlama özellikleri

• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)• PoE Auto Recovery Button (Ports 1-8)• Mac Address Auto-Learning and Auto-Aging• IEEE 802.3x Flow Control• 802.1p/DSCP QoS• IGMP Snooping

RJ45 bağlantıları

8 port

Fansız tasarım

Var

PoE güç koşulları

• Standard: 802.3 af/at compliant• PoE Ports: Ports 1–8, up to 30 W PoE output per port• PoE Budget: 62 W

PoE desteği

Var

Toplam PoE bütçesi

62 W

Anahtarlama kapasitesi

16 Gbps

Paket iletme hızı

11.9 Mpps

Çalışma sıcaklığı

0–40 ℃ (32–104 ℉);•

Saklama sıcaklığı

-40–70 ℃ (-40–158 ℉)•

Çalışma nemi

10–90% RH non-condensing•

Depolama nemi

5–90% RH non-condensing

Üreticinin ayrıntılı teknik bilgileri

Interface: • 8× 10/100/1000Mbps RJ45 Ports (Ports 1–8 supports 802.3af/at PoE+)• AUTO Negotiation• AUTO MDI/MDIX, Network Media: • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m), Fan Quantity: Fanless, Installation: • Desktop• Wall Mounting, Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A), PoE Ports (RJ45): • Standard: 802.3 af/at compliant• PoE Ports: Ports 1–8, up to 30 W PoE output per port• PoE Budget: 62 W, Dimensions ( W x D x H ): 6.2×3.9×1.0 in (158×99×25 mm), Max. Power Consumption: • 5.53 W (220 V/50 Hz. no PD connected)• 71.61 W (220 V/50 Hz. with 62 W PD connected), Max Heat Dissipation: • 18.81 BTU/h (220 V/50 Hz. no PD connected)• 243.47 BTU/h (220 V/50 Hz. with 62 W PD connected), Jumbo Frame: 16 KB, Switching Capacity: 16 Gbps, Packet Forwarding Rate: 11.9 Mpps, MAC Address Table: 4K, Advanced Features: • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)• PoE Auto Recovery Button (Ports 1-8)• Mac Address Auto-Learning and Auto-Aging• IEEE 802.3x Flow Control• 802.1p/DSCP QoS• IGMP Snooping, Transmission Method: Store-And-Forward, Certification: FCC, CE, Package Content: • LS108GP• Power Adapter• Installation Guide, Environment: • Operating Temperature: 0–40 ℃ (32–104 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
