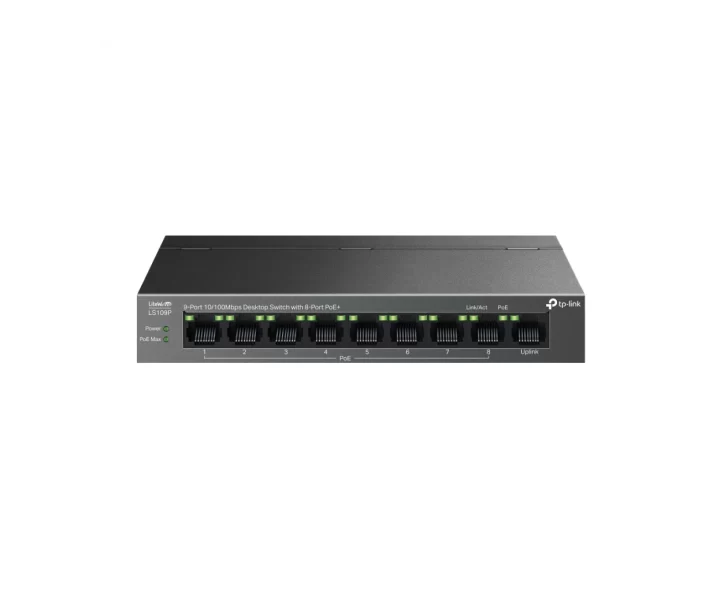

TP-Link LS109P özellikleri ve fiyatları

TP-Link LS109P teknik özellikleri

Model kodu

LS109P

Anahtar türü

Unmanaged

Ethernet bağlantıları

• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports)• AUTO Negotiation• AUTO MDI/MDIX

Desteklenen ağ kabloları

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)

İletim yöntemi

Store and Forward

MAC adres tablosu

2K

Jumbo çerçeve

1.5 KB

Güç kaynağı

External Power Adapter (Output: 53.5VDC / 1.31A)

Güç tüketimi koşulları

• 3.67 W (220 V/50 Hz no PD connected)• 73.24 W (220 V/50 Hz with 63 W PD connected)

En yüksek ısı yayılımı

• 12.48 BTU/h (220 V/50 Hz no PD connected) • 249 BTU/h (220 V/50 Hz with 63 W PD connected)

Boyutlar

6.7×3.9×1.1 in (171×98×27 mm)

Soğutma fanları

Fanless

LED göstergeleri

• Power• Link/Act• PoE Status• PoE MAX

Sertifikalar

CE, FCC

Kutu içeriği

• LS109P• Power Adapter• Installation Guide• Rubber Feet

Ek anahtarlama özellikleri

• Extend Mode Button (Ports 1–4/1–8, Up to 250 m PoE power supply and data transmission)• Isolation Mode Button (Ports 1–8)• PoE Auto Recovery Button (Ports 1–8)• Compatible With IEEE 802.3af/at Compliant PDs• Mac Address Auto-Learning and Auto-Aging• IEEE 802.3x Flow Control

RJ45 bağlantıları

9 port

Fansız tasarım

Var

PoE güç koşulları

• Standard: 802.3 af/at compliant• PoE Ports: Ports 1–8, up to 30 W PoE output per port• Power Supply: 63 W

PoE desteği

Var

Anahtarlama kapasitesi

1.8 Gbps

Paket iletme hızı

1.3392 Mpps

Çalışma sıcaklığı

0–40 ℃ (32–104 ℉)•

Saklama sıcaklığı

-40–70 ℃ (-40–158 ℉)•

Çalışma nemi

10–90% RH non-condensing•

Depolama nemi

5–90% RH non-condensing

Üreticinin ayrıntılı teknik bilgileri

Interface: • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports)• AUTO Negotiation• AUTO MDI/MDIX, Network Media: • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m), Fan Quantity: Fanless, Installation: • Desktop• Wall Mounting, Power Supply: External Power Adapter (Output: 53.5VDC / 1.31A), LED: • Power• Link/Act• PoE Status• PoE MAX, PoE Ports (RJ45): • Standard: 802.3 af/at compliant• PoE Ports: Ports 1–8, up to 30 W PoE output per port• Power Supply: 63 W, Dimensions ( W x D x H ): 6.7×3.9×1.1 in (171×98×27 mm), Max. Power Consumption: • 3.67 W (220 V/50 Hz no PD connected)• 73.24 W (220 V/50 Hz with 63 W PD connected), Max Heat Dissipation: • 12.48 BTU/h (220 V/50 Hz no PD connected) • 249 BTU/h (220 V/50 Hz with 63 W PD connected), Jumbo Frame: 1.5 KB, Switching Capacity: 1.8 Gbps, Packet Forwarding Rate: 1.3392 Mpps, MAC Address Table: 2K, Advanced Features: • Extend Mode Button (Ports 1–4/1–8, Up to 250 m PoE power supply and data transmission)• Isolation Mode Button (Ports 1–8)• PoE Auto Recovery Button (Ports 1–8)• Compatible With IEEE 802.3af/at Compliant PDs• Mac Address Auto-Learning and Auto-Aging• IEEE 802.3x Flow Control, Transmission Method: Store and Forward, Certification: CE, FCC, Package Content: • LS109P• Power Adapter• Installation Guide• Rubber Feet, Environment: • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
