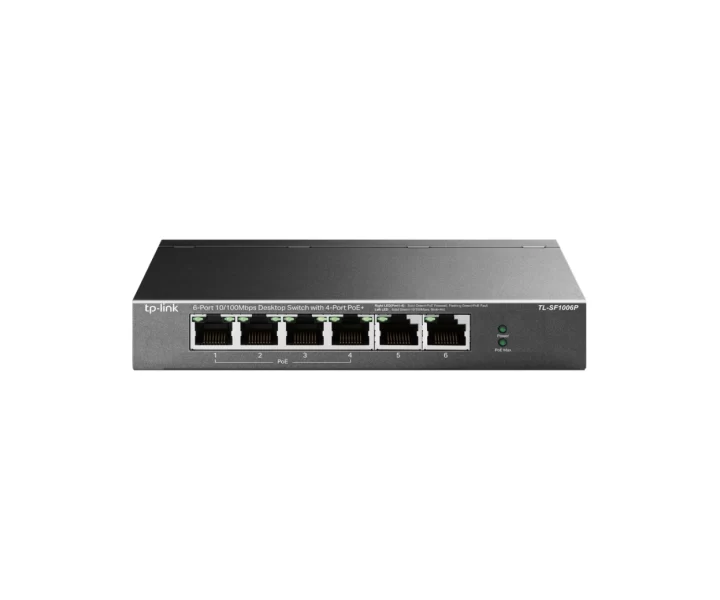

TP-Link TL-SF1006P özellikleri ve fiyatları

TP-Link TL-SF1006P teknik özellikleri

Model kodu

TL-SF1006P

Anahtar türü

Unmanaged

Ethernet bağlantıları

• 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+)• AUTO Negotiation• AUTO MDI/MDIX

Desteklenen ağ kabloları

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)

İletim yöntemi

Store-And-Forward

Jumbo çerçeve

2 KB

Güç kaynağı

External Power Adapter (Output: 53.5 V DC / 1.31 A)

Güç tüketimi koşulları

• 2.52 W (220 V / 50 Hz, no PD connected)• 75.4 W (220 V / 50 Hz, with 67 W PD connected)

En yüksek ısı yayılımı

• 8.59 BTU/h(no PD connected)• 257.11 BTU/h(with 67 W PD connected)

Boyutlar

6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)

Soğutma fanları

Fanless

Sertifikalar

FCC, CE

Kutu içeriği

• TL-SF1006P• Power Adapter• Installation Guide

Ek anahtarlama özellikleri

• Compatible With IEEE 802.3af/at Compliant PDs• Extend Mode Button (Ports 1–4)• Priority Mode Button (Ports 1–2)• PoE Auto Recovery (Ports 1-4)• Mac Address Auto-Learning and Auto-Aging• IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode

Fiziksel güvenlik

Yes

RJ45 bağlantıları

6 port

Fansız tasarım

Var

Paket iletme hızı

0.8928 Mpps

PoE güç koşulları

• Standard: 802.3 af/at compliant• PoE Ports: Ports 1–4• Power Supply: 67 W

PoE desteği

Var

Anahtarlama kapasitesi

1.2 Gbps

Çalışma sıcaklığı

0–40 ℃ (32–104 ℉)•

Saklama sıcaklığı

-40–70 ℃ (-40–158 ℉)•

Çalışma nemi

10–90% RH non-condensing•

Depolama nemi

5–90% RH non-condensing

Üreticinin ayrıntılı teknik bilgileri

Interface: • 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+)• AUTO Negotiation• AUTO MDI/MDIX, Network Media: • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m), Fan Quantity: Fanless, Physical Security Lock: Yes, External Power Supply: External Power Adapter (Output: 53.5 V DC / 1.31 A), Packet Forwarding Rate: 0.8928 Mpps, PoE Ports (RJ45): • Standard: 802.3 af/at compliant• PoE Ports: Ports 1–4• Power Supply: 67 W, Mac Address Table: 2K, Jumbo Frame: 2 KB, Switching Capacity: 1.2 Gbps, Dimensions ( W x D x H ): 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm), Max. Power Consumption: • 2.52 W (220 V / 50 Hz, no PD connected)• 75.4 W (220 V / 50 Hz, with 67 W PD connected), Max Heat Dissipation: • 8.59 BTU/h(no PD connected)• 257.11 BTU/h(with 67 W PD connected), Advanced Features: • Compatible With IEEE 802.3af/at Compliant PDs• Extend Mode Button (Ports 1–4)• Priority Mode Button (Ports 1–2)• PoE Auto Recovery (Ports 1-4)• Mac Address Auto-Learning and Auto-Aging• IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode, Transmission Method: Store-And-Forward, Certification: FCC, CE, Package Content: • TL-SF1006P• Power Adapter• Installation Guide, Environment: • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
