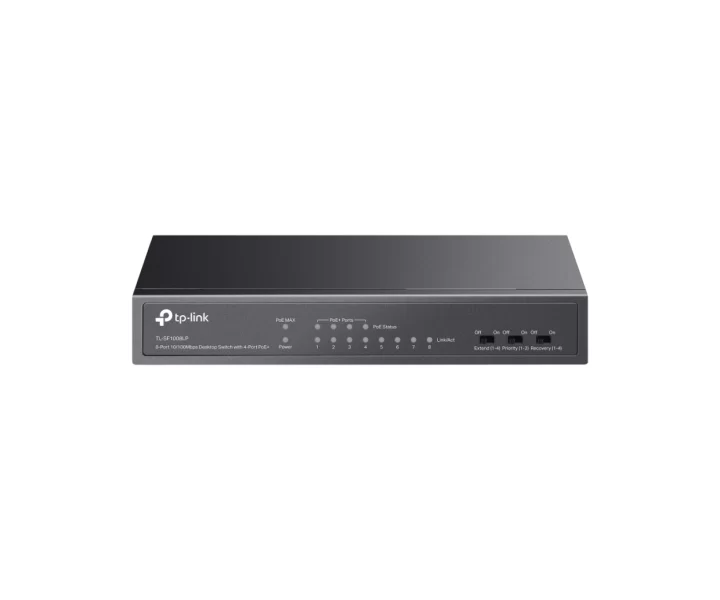

TP-Link TL-SF1008LP özellikleri ve fiyatları

TP-Link TL-SF1008LP teknik özellikleri

Model kodu

TL-SF1008LP

Anahtar türü

Unmanaged

Ethernet bağlantıları

• 8× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af/at PoE)• AUTO Negotiation• AUTO MDI/MDIX

Desteklenen ağ kabloları

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)

İletim yöntemi

Store-And-Forward

Jumbo çerçeve

2 KB

Güç kaynağı

External Power Adapter (Output: 53.5 V DC / 0.81 A)

Güç tüketimi koşulları

• 2.2 W (220 V/ 50 Hz. no PD connected)• 47.1 W (220 V/ 50 Hz. with 41 W PD connected)

En yüksek ısı yayılımı

• 7.5 BTU/h(no PD connected)• 160.61 BTU/h(with 41 W PD connected)

Boyutlar

6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)

Soğutma fanları

Fanless

Sertifikalar

FCC, CE

Kutu içeriği

• TL-SF1008LP• Power Adapter• Installation Guide

Ek anahtarlama özellikleri

• Extend Mode: Ports 1–4• Priority Mode: Ports 1–2• PoE Auto Recovery: Ports 1-4• Compatible With IEEE 802.3af Compliant PDs• Mac Address Auto-Learning and Auto-Aging• IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode

Fiziksel güvenlik

Yes

RJ45 bağlantıları

8 port

Fansız tasarım

Var

Paket iletme hızı

1.1904 Mpps

PoE güç koşulları

• Standard: 802.3 af/at compliant• PoE Ports: Ports 1–4• Power Supply: 41 W

PoE desteği

Var

Anahtarlama kapasitesi

1.6 Gbps

Çalışma sıcaklığı

0–40 ℃ (32–104 ℉)•

Saklama sıcaklığı

-40–70 ℃ (-40–158 ℉)•

Çalışma nemi

10–90% RH non-condensing•

Depolama nemi

5–90% RH non-condensing

Üreticinin ayrıntılı teknik bilgileri

Interface: • 8× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af/at PoE)• AUTO Negotiation• AUTO MDI/MDIX, Network Media: • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m), Fan Quantity: Fanless, Physical Security Lock: Yes, External Power Supply: External Power Adapter (Output: 53.5 V DC / 0.81 A), Packet Forwarding Rate: 1.1904 Mpps, PoE Ports (RJ45): • Standard: 802.3 af/at compliant• PoE Ports: Ports 1–4• Power Supply: 41 W, Mac Address Table: 2K, Jumbo Frame: 2 KB, Switching Capacity: 1.6 Gbps, Dimensions ( W x D x H ): 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm), Max. Power Consumption: • 2.2 W (220 V/ 50 Hz. no PD connected)• 47.1 W (220 V/ 50 Hz. with 41 W PD connected), Max Heat Dissipation: • 7.5 BTU/h(no PD connected)• 160.61 BTU/h(with 41 W PD connected), Advanced Features: • Extend Mode: Ports 1–4• Priority Mode: Ports 1–2• PoE Auto Recovery: Ports 1-4• Compatible With IEEE 802.3af Compliant PDs• Mac Address Auto-Learning and Auto-Aging• IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode, Transmission Method: Store-And-Forward, Certification: FCC, CE, Package Content: • TL-SF1008LP• Power Adapter• Installation Guide, Environment: • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
