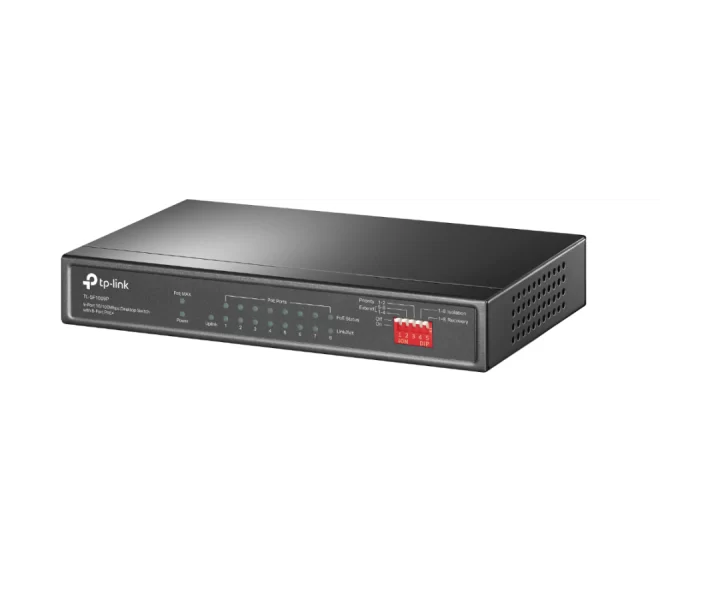

TP-Link TL-SF1009P özellikleri ve fiyatları

TP-Link TL-SF1009P teknik özellikleri

Model kodu

TL-SF1009P

Anahtar türü

Unmanaged

Ethernet bağlantıları

• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)• AUTO Negotiation• AUTO MDI/MDIX

Desteklenen ağ kabloları

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)

İletim yöntemi

Store-And-Forward

Jumbo çerçeve

2 KB(V5.0) 1536Bytes(V6.0)

Güç kaynağı

External Power Adapter (Output: 53.5VDC / 1.31A)

Güç tüketimi koşulları

V5.0：• 3.28 W (220/50 Hz. no PD connected)• 74.33 W (220/50 Hz. with 65 W PD connected)V6.0：• 74.8 W (110V/60Hz) (with 65 W PD connected)

En yüksek ısı yayılımı

V5.0：• 11.18 BTU/h (no PD connected)• 253.47 BTU/h (with 65 W PD connected)V6.0：• 268.06 BTU/h (110V/60Hz) (with 65 W PD connected)

Boyutlar

6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)

Soğutma fanları

Fanless

Sertifikalar

FCC, CE

Kutu içeriği

• TL-SF1009P• Power Adapter• Installation Guide

Ek anahtarlama özellikleri

• Compatible With IEEE 802.3af/at Compliant PDs• Extend Mode Button (Ports 1–4 and Ports 5–8, Up to 250 m PoE power supply and data transmission)• Priority Mode Button (Ports 1–2)• Isolation Mode Button (Ports 1–8)• PoE Auto Recovery Button (Ports 1-8)• Mac Address Auto-Learning and Auto-Aging• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

Fiziksel güvenlik

Yes

RJ45 bağlantıları

9 port

Fansız tasarım

Var

PoE güç koşulları

• Standard: 802.3 af/at compliant• PoE Ports: Ports 1–8• Power Supply: 65 W

PoE desteği

Var

Anahtarlama kapasitesi

1.8 Gbps

Çalışma sıcaklığı

-5–45 ℃ (23–113 ℉)•

Saklama sıcaklığı

-40–70 ℃ (-40–158 ℉)•

Çalışma nemi

10–90% RH non-condensing•

Depolama nemi

5–90% RH non-condensing

Üreticinin ayrıntılı teknik bilgileri

Interface: • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)• AUTO Negotiation• AUTO MDI/MDIX, Network Media: • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m), Fan Quantity: Fanless, Physical Security Lock: Yes, External Power Supply: External Power Adapter (Output: 53.5VDC / 1.31A), Packet Forwarding Rate: 1.3392 Mpps (V5.0)1.34 Mpps (V6.0), PoE Ports (RJ45): • Standard: 802.3 af/at compliant• PoE Ports: Ports 1–8• Power Supply: 65 W, Mac Address Table: 2K, Jumbo Frame: 2 KB(V5.0) 1536Bytes(V6.0), Switching Capacity: 1.8 Gbps, Dimensions ( W x D x H ): 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm), Max. Power Consumption: V5.0：• 3.28 W (220/50 Hz. no PD connected)• 74.33 W (220/50 Hz. with 65 W PD connected)V6.0：• 74.8 W (110V/60Hz) (with 65 W PD connected), Max Heat Dissipation: V5.0：• 11.18 BTU/h (no PD connected)• 253.47 BTU/h (with 65 W PD connected)V6.0：• 268.06 BTU/h (110V/60Hz) (with 65 W PD connected), Advanced Features: • Compatible With IEEE 802.3af/at Compliant PDs• Extend Mode Button (Ports 1–4 and Ports 5–8, Up to 250 m PoE power supply and data transmission)• Priority Mode Button (Ports 1–2)• Isolation Mode Button (Ports 1–8)• PoE Auto Recovery Button (Ports 1-8)• Mac Address Auto-Learning and Auto-Aging• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode, Transmission Method: Store-And-Forward, Certification: FCC, CE, Package Content: • TL-SF1009P• Power Adapter• Installation Guide, Environment: • Operating Temperature: -5–45 ℃ (23–113 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
