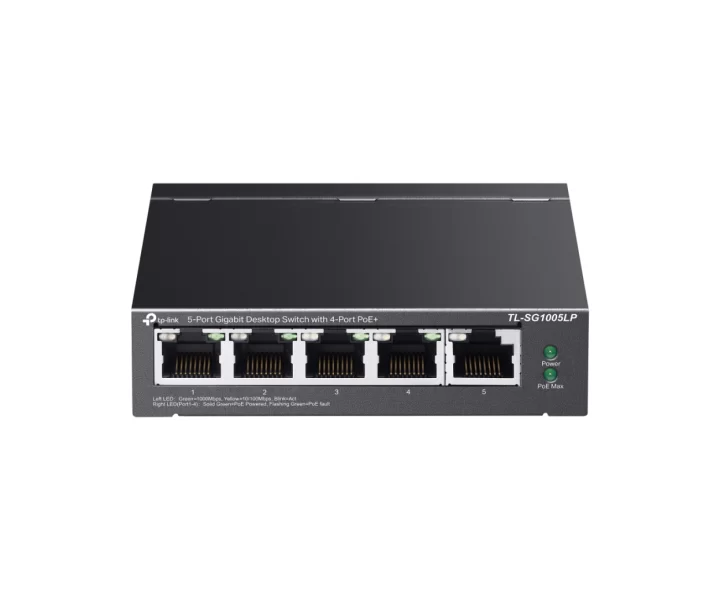

TP-Link TL-SG1005LP özellikleri ve fiyatları

TP-Link TL-SG1005LP teknik özellikleri

Model kodu

TL-SG1005LP

Anahtar türü

Unmanaged

Ethernet bağlantıları

• 5× 10/100/1000Mbps RJ45 Ports• AUTO Negotiation• AUTO MDI/MDIX

Desteklenen ağ kabloları

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)

İletim yöntemi

Store-And-Forward

Jumbo çerçeve

V3: 16 KBV4: 9 KB

Güç kaynağı

External Power Adapter (Output: 53.5 VDC / 0.81 A)

Güç tüketimi koşulları

V3:• 4.12 W (220/50 Hz. no PD connected)• 47.5 W (220/50 Hz. with 40 W PD connected)V4:• 4.12 W (220/50 Hz. no PD connected)• 48.04 W (220/50 Hz. with 40 W PD connected)

En yüksek ısı yayılımı

• 14.05 BTU/h (no PD connected)• 161.98 BTU/h (with 40 W PD connected)

Boyutlar

3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)

Soğutma fanları

Fanless

Sertifikalar

FCC, CE

Kutu içeriği

• TL-SG1005LP• Power Adapter• Installation Guide• Power Cord• Rubber Feet

Ek anahtarlama özellikleri

• Extend Mode: Ports 1–2• PoE Auto Recovery: Ports 1-4• Compatible With IEEE 802.3af/at Compliant PDs• Mac Address Auto-Learning And Auto-Aging• IEEE 802.3x Flow Control• 802.1p/DSCP QoS• IGMP Snooping

RJ45 bağlantıları

5 port

Fansız tasarım

Var

Paket iletme hızı

7.44 Mpps

PoE güç koşulları

• Standard: 802.3 af/at compliant• PoE Ports: Ports 1–4• Power Supply: 40 W

PoE desteği

Var

Anahtarlama kapasitesi

10 Gbps

Çalışma sıcaklığı

-5–40 ℃ (23–104 ℉);•

Saklama sıcaklığı

-40–70 ℃ (-40–158 ℉)•

Çalışma nemi

10–90% RH non-condensing•

Depolama nemi

5–90% RH non-condensing

Üreticinin ayrıntılı teknik bilgileri

Interface: • 5× 10/100/1000Mbps RJ45 Ports• AUTO Negotiation• AUTO MDI/MDIX, Network Media: • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m), Fan Quantity: Fanless, External Power Supply: External Power Adapter (Output: 53.5 VDC / 0.81 A), Packet Forwarding Rate: 7.44 Mpps, PoE Ports (RJ45): • Standard: 802.3 af/at compliant• PoE Ports: Ports 1–4• Power Supply: 40 W, Mac Address Table: 2K, Jumbo Frame: V3: 16 KBV4: 9 KB, Switching Capacity: 10 Gbps, Dimensions ( W x D x H ): 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm), Max. Power Consumption: V3:• 4.12 W (220/50 Hz. no PD connected)• 47.5 W (220/50 Hz. with 40 W PD connected)V4:• 4.12 W (220/50 Hz. no PD connected)• 48.04 W (220/50 Hz. with 40 W PD connected), Max Heat Dissipation: • 14.05 BTU/h (no PD connected)• 161.98 BTU/h (with 40 W PD connected), Advanced Features: • Extend Mode: Ports 1–2• PoE Auto Recovery: Ports 1-4• Compatible With IEEE 802.3af/at Compliant PDs• Mac Address Auto-Learning And Auto-Aging• IEEE 802.3x Flow Control• 802.1p/DSCP QoS• IGMP Snooping, Transmission Method: Store-And-Forward, Certification: FCC, CE, Package Content: • TL-SG1005LP• Power Adapter• Installation Guide• Power Cord• Rubber Feet, Environment: • Operating Temperature: -5–40 ℃ (23–104 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
