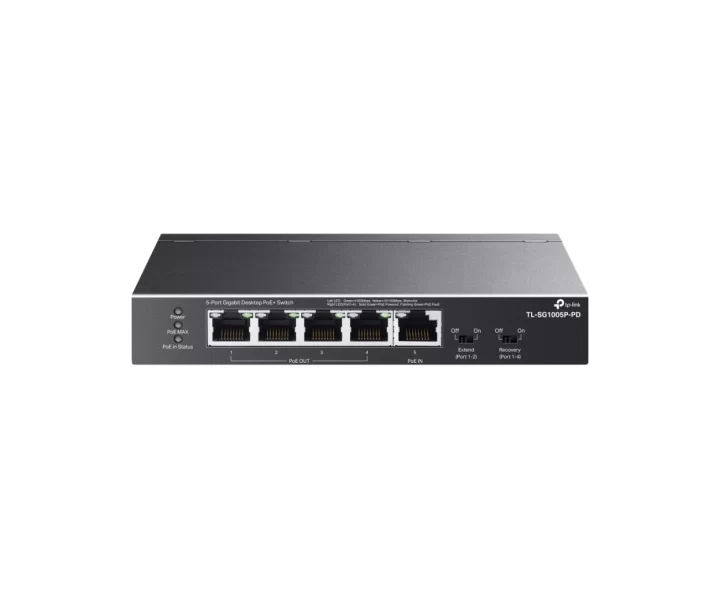

TP-Link TL-SG1005P-PD özellikleri ve fiyatları

TP-Link TL-SG1005P-PD teknik özellikleri

Model kodu

TL-SG1005P-PD

Anahtar türü

Unmanaged

Ethernet bağlantıları

• 5× 10/100/1000Mbps RJ45 Ports• 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4)• 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at)• AUTO Negotiation• AUTO MDI/MDIX

Ağ standartları

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p

Desteklenen ağ kabloları

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)

İletim yöntemi

Store-And-Forward

MAC adres tablosu

2k

Güç kaynağı

Only Powered by PoE Device

Güç tüketimi koşulları

• 2.68 W (90W PoE In, with no PD connected)• 68.59 W (90W PoE In, with 66 W PD connected)

En yüksek ısı yayılımı

• 9.112 BTU/h (90W PoE In, with no PD connected)• 233.206 BTU/h (90W PoE In, with 66 W PD connected)

Boyutlar

6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)

Soğutma fanları

Fanless

Sertifikalar

CE, FCC

Kutu içeriği

• TL-SG1005P-PD• Installation Guide

Ek anahtarlama özellikleri

• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)• PoE Auto Recovery (Ports 1-4)• Mac Address Auto-Learning and Auto-Aging• IEEE 802.3x Flow Control• 802.1p/DSCP QoS• IGMP Snooping

Fansız tasarım

Var

PoE güç koşulları

• PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4• PoE Out Ports: Ports 1-4, compliance with 802.3af/at• PoE Power Budget:-66 W when powered by 802.3bt Type 4 (90 W)-47 W when powered by 802.3bt Type 3 (60 W)-21 W when powered by 802.3at (30 W)-9 W when powered by 802.3af (15.4 W)

PoE desteği

Var

Anahtarlama kapasitesi

10 Gbps

Paket iletme hızı

7.44 Mpps

Çalışma sıcaklığı

-30–70 ℃ (-22–158 ℉);•

Saklama sıcaklığı

-40–70 ℃ (-40–158 ℉)•

Çalışma nemi

10–90% RH non-condensing•

Depolama nemi

5–90% RH non-condensing

Üreticinin ayrıntılı teknik bilgileri

Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p, Interface: • 5× 10/100/1000Mbps RJ45 Ports• 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4)• 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at)• AUTO Negotiation• AUTO MDI/MDIX, Network Media: • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m), Fan Quantity: Fanless, Power Supply: Only Powered by PoE Device, PoE Ports (RJ45): • PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4• PoE Out Ports: Ports 1-4, compliance with 802.3af/at• PoE Power Budget:-66 W when powered by 802.3bt Type 4 (90 W)-47 W when powered by 802.3bt Type 3 (60 W)-21 W when powered by 802.3at (30 W)-9 W when powered by 802.3af (15.4 W), Dimensions ( W x D x H ): 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm), Max. Power Consumption: • 2.68 W (90W PoE In, with no PD connected)• 68.59 W (90W PoE In, with 66 W PD connected), Max Heat Dissipation: • 9.112 BTU/h (90W PoE In, with no PD connected)• 233.206 BTU/h (90W PoE In, with 66 W PD connected), Switching Capacity: 10 Gbps, Packet Forwarding Rate: 7.44 Mpps, MAC Address Table: 2k, Advanced Features: • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)• PoE Auto Recovery (Ports 1-4)• Mac Address Auto-Learning and Auto-Aging• IEEE 802.3x Flow Control• 802.1p/DSCP QoS• IGMP Snooping, Transmission Method: Store-And-Forward, Certification: CE, FCC, Package Content: • TL-SG1005P-PD• Installation Guide, Environment: • Operating Temperature: -30–70 ℃ (-22–158 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
