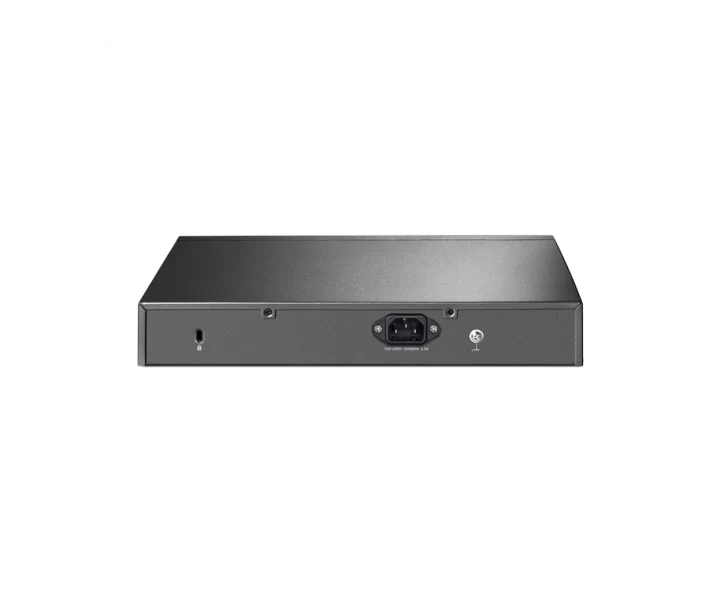

TP-Link TL-SG1016PE özellikleri ve fiyatları

TP-Link TL-SG1016PE teknik özellikleri

Model kodu

TL-SG1016PE

Anahtar türü

Easy Smart

Ethernet bağlantıları

16× 10/100/1000 Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX

Ağ standartları

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Desteklenen ağ kabloları

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)100BASE-TX: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)

İletim yöntemi

Store-And-Forward

MAC adres tablosu

8K

Paket arabelleği

4.1 Mbit

Jumbo çerçeve

10 KB

Güç tüketimi koşulları

13.07 W (220 V/50 Hz with no PD connected)173.88 W (220 V/50 Hz with 150 W PD connected)

En yüksek ısı yayılımı

44.438 BTU/h (220 V/50 Hz with no PD connected)591.192 BTU/h (220 V/50 Hz with 150 W PD connected)

Boyutlar

11.6×7.1×1.7 in (294×180×44 mm)

Kurulum biçimi

Rack Mountable/ Desktop

Soğutma fanları

Fanless

VLAN özellikleri

Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)MTU/Port/Tag VLAN

Hizmet kalitesi özellikleri

Support Port-Based/802.1p/DSCP prioritySupport 4 priority queuesRate LimitStorm Control

Katman 2 özellikleri

IGMP Snooping V1/V2/V3Static Link AggregationPort MirroringCable DiagnosticsLoop Prevention

Sertifikalar

FCC, CE

Kutu içeriği

TL-SG1016PEPower CordInstallation GuideRackmount KitRubber Feet

Sistem gereksinimleri

Microsoft® Windows® for running Utility

Fiziksel güvenlik

Yes

RJ45 bağlantıları

16 port

Fansız tasarım

Var

PoE güç koşulları

Standard: 802.3 af/at compliantPoE Ports: Port 1 to Port 8PoE Power Budget: 150 W

PoE desteği

Var

Toplam PoE bütçesi

150 W

Anahtarlama kapasitesi

32 Gbps

Çalışma sıcaklığı

0–45 ℃ (32–113 ℉)

Saklama sıcaklığı

-40–70 ℃ (-40–158 ℉)

Çalışma nemi

10–90% non-condensing

Depolama nemi

5–90% non-condensing

Üreticinin ayrıntılı teknik bilgileri

Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, Interface: 16× 10/100/1000 Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX, Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)100BASE-TX: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m), Fan Quantity: Fanless, Physical Security Lock: Yes, PoE Ports (RJ45): Standard: 802.3 af/at compliantPoE Ports: Port 1 to Port 8PoE Power Budget: 150 W, Dimensions ( W x D x H ): 11.6×7.1×1.7 in (294×180×44 mm), Mounting: Rack Mountable/ Desktop, Max. Power Consumption: 13.07 W (220 V/50 Hz with no PD connected)173.88 W (220 V/50 Hz with 150 W PD connected), Max Heat Dissipation: 44.438 BTU/h (220 V/50 Hz with no PD connected)591.192 BTU/h (220 V/50 Hz with 150 W PD connected), Packet Buffer Memory: 4.1 Mbit, Jumbo Frame: 10 KB, Switching Capacity: 32 Gbps, Packet Forwarding Rate: 23.8 Mbps, MAC Address Table: 8K, Quality of Service: Support Port-Based/802.1p/DSCP prioritySupport 4 priority queuesRate LimitStorm Control, L2 Features: IGMP Snooping V1/V2/V3Static Link AggregationPort MirroringCable DiagnosticsLoop Prevention, VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)MTU/Port/Tag VLAN, PoE: PoE ManagementExtend Mode PoE Auto Recovery, Management Features: Web-based GUIEasy Smart Configuration Utility, Transmission Method: Store-And-Forward, Certification: FCC, CE, Package Content: TL-SG1016PEPower CordInstallation GuideRackmount KitRubber Feet, System Requirements: Microsoft® Windows® for running Utility, Environment: Operating Temperature: 0–45 ℃ (32–113 ℉)Storage Temperature: -40–70 ℃ (-40–158 ℉)Operating Humidity: 10–90% non-condensingStorage Humidity: 5–90% non-condensing
