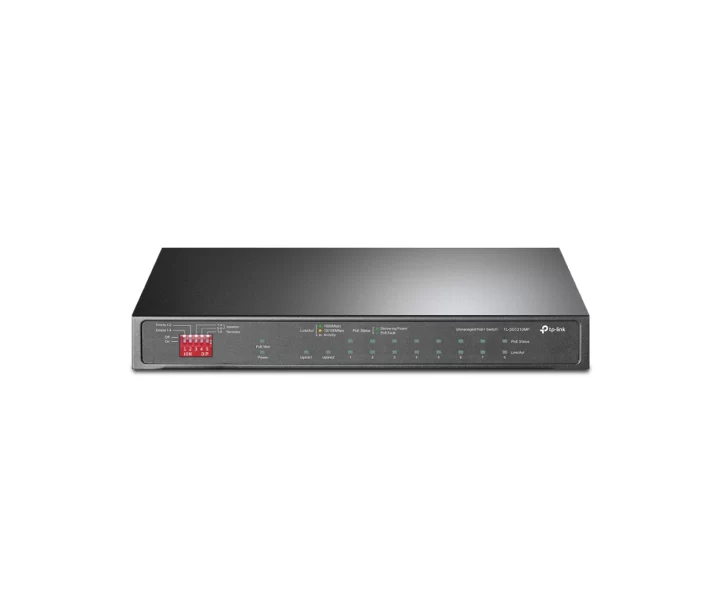

TP-Link TL-SG1210MP özellikleri ve fiyatları

TP-Link TL-SG1210MP teknik özellikleri

Model kodu

TL-SG1210MP

Anahtar türü

Unmanaged

Ethernet bağlantıları

• 9× 10/100/1000 Mbps RJ45 Ports• 1× 1000 Mbps Combo SFP/RJ45 Port• AUTO Negotiation• AUTO MDI/MDIX

Desteklenen ağ kabloları

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)

İletim yöntemi

Store-And-Forward

Jumbo çerçeve

16 KB

Güç kaynağı

External Power Adapter (Output: 53.5VDC / 2.43A)

Güç tüketimi koşulları

• 7.93 W (220V / 50Hz with no PD connected)• 141.40 W (220V / 50Hz with 123 W PD connected)

En yüksek ısı yayılımı

• 27.04 BTU/h (220V / 50Hz with no PD connected)• 482.17 BTU/h (220V / 50Hz with 123 W PD connected)

Boyutlar

8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

Soğutma fanları

Fanless

Sertifikalar

FCC, CE

Kutu içeriği

• TL-SG1210MP• Power Adapter• Installation Guide

Ek anahtarlama özellikleri

• Compatible With IEEE 802.3af/at Compliant PDs• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)• Priority Mode Button (Ports 1–2)• Isolation Mode Button (Ports 1–4 / 5-8)• PoE Auto Recovery (Ports 1-8)• Mac Address Auto-Learning and Auto-Aging• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

Fiziksel güvenlik

Yes

Fansız tasarım

Var

Paket iletme hızı

14.88 Mpps

PoE güç koşulları

• Standard: 802.3 af/at compliant• PoE Ports: Ports 1–8• Power Supply: 123 W

PoE desteği

Var

Anahtarlama kapasitesi

20 Gbps

Çalışma sıcaklığı

0–40 ℃ (32–104 ℉)•

Saklama sıcaklığı

-40–70 ℃ (-40–158 ℉)•

Çalışma nemi

10–90% RH non-condensing•

Depolama nemi

5–90% RH non-condensing

Üreticinin ayrıntılı teknik bilgileri

Interface: • 9× 10/100/1000 Mbps RJ45 Ports• 1× 1000 Mbps Combo SFP/RJ45 Port• AUTO Negotiation• AUTO MDI/MDIX, Network Media: • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m), Fan Quantity: Fanless, Physical Security Lock: Yes, External Power Supply: External Power Adapter (Output: 53.5VDC / 2.43A), Packet Forwarding Rate: 14.88 Mpps, PoE Ports (RJ45): • Standard: 802.3 af/at compliant• PoE Ports: Ports 1–8• Power Supply: 123 W, Mac Address Table: 4K, Jumbo Frame: 16 KB, Switching Capacity: 20 Gbps, Dimensions ( W x D x H ): 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm), Max. Power Consumption: • 7.93 W (220V / 50Hz with no PD connected)• 141.40 W (220V / 50Hz with 123 W PD connected), Max Heat Dissipation: • 27.04 BTU/h (220V / 50Hz with no PD connected)• 482.17 BTU/h (220V / 50Hz with 123 W PD connected), Advanced Features: • Compatible With IEEE 802.3af/at Compliant PDs• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)• Priority Mode Button (Ports 1–2)• Isolation Mode Button (Ports 1–4 / 5-8)• PoE Auto Recovery (Ports 1-8)• Mac Address Auto-Learning and Auto-Aging• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode, Transmission Method: Store-And-Forward, Certification: FCC, CE, Package Content: • TL-SG1210MP• Power Adapter• Installation Guide, Environment: • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
