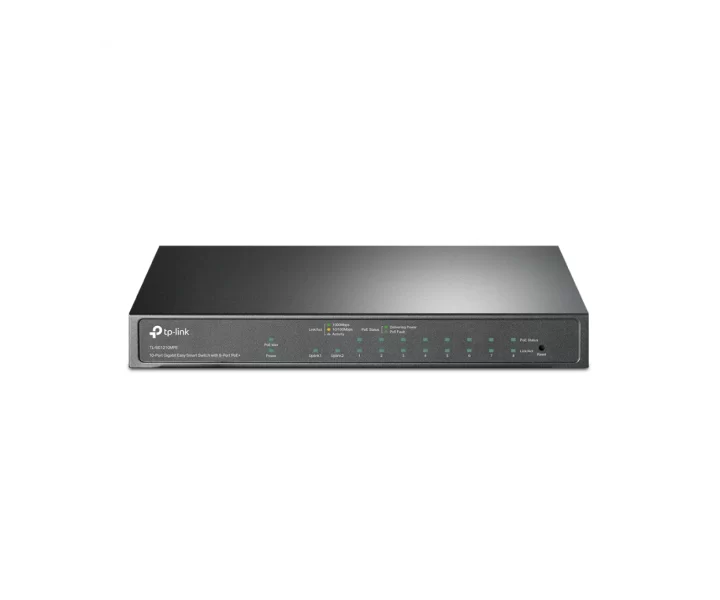

TP-Link TL-SG1210MPE özellikleri ve fiyatları

TP-Link TL-SG1210MPE teknik özellikleri

Model kodu

TL-SG1210MPE

Anahtar türü

Easy Smart

Ethernet bağlantıları

9× 10/100/1000 Mbps RJ45 Ports1× 1000 Mbps Combo SFP/RJ45 PortAUTO Negotiation/AUTO MDI/MDIX

Ağ standartları

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z

Desteklenen ağ kabloları

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)

İletim yöntemi

Store-And-Forward

MAC adres tablosu

4 K

Jumbo çerçeve

16 KB

Güç kaynağı

External Power Adapter (Output: 53.5 VDC/2.43 A)

Güç tüketimi koşulları

7.66 W (220V / 50Hz with no PD connected)141.54 W (220V / 50Hz with 123 W PD connected)

En yüksek ısı yayılımı

26.12 BTU/h (220V / 50Hz with no PD connected)482.65 BTU/h (220V / 50Hz with 123 W PD connected)

Boyutlar

8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

Soğutma fanları

Fanless

VLAN özellikleri

Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN

Hizmet kalitesi özellikleri

Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control

Katman 2 özellikleri

IGMP Snooping V1/V2/V3Static Link AggregationPort MirroringCable DiagnosticsLoop Prevention

Sertifikalar

FCC, CE

Kutu içeriği

TL-SG1210MPEPower AdapterInstallation GuideRubber Feet

Sistem gereksinimleri

Microsoft® Windows® for running Utility

Fansız tasarım

Var

PoE güç koşulları

Standard: 802.3 af/at compliantPoE Ports: Port 1- Port 8PoE Power Budget: 123 W

PoE desteği

Var

Toplam PoE bütçesi

123 W

Anahtarlama kapasitesi

20 Gbps

Paket iletme hızı

14.88 Mpps

Çalışma sıcaklığı

0℃~40℃ (32℉~104℉)

Saklama sıcaklığı

-40℃~70℃ (-40℉~158℉)

Çalışma nemi

10%~90%RH non-condensing

Depolama nemi

5%~95%RH non-condensing

Üreticinin ayrıntılı teknik bilgileri

Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z, Interface: 9× 10/100/1000 Mbps RJ45 Ports1× 1000 Mbps Combo SFP/RJ45 PortAUTO Negotiation/AUTO MDI/MDIX, Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m), Fan Quantity: Fanless, Power Supply: External Power Adapter (Output: 53.5 VDC/2.43 A), PoE Ports (RJ45): Standard: 802.3 af/at compliantPoE Ports: Port 1- Port 8PoE Power Budget: 123 W, Dimensions ( W x D x H ): 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm), Max. Power Consumption: 7.66 W (220V / 50Hz with no PD connected)141.54 W (220V / 50Hz with 123 W PD connected), Max Heat Dissipation: 26.12 BTU/h (220V / 50Hz with no PD connected)482.65 BTU/h (220V / 50Hz with 123 W PD connected), Jumbo Frame: 16 KB, Switching Capacity: 20 Gbps, Packet Forwarding Rate: 14.88 Mpps, MAC Address Table: 4 K, Quality of Service: Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control, L2 Features: IGMP Snooping V1/V2/V3Static Link AggregationPort MirroringCable DiagnosticsLoop Prevention, VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN, PoE: Extend Mode**PoE Auto Recovery, Management Features: Web-based GUI Easy Smart Configuration Utility, Transmission Method: Store-And-Forward, Certification: FCC, CE, Package Content: TL-SG1210MPEPower AdapterInstallation GuideRubber Feet, System Requirements: Microsoft® Windows® for running Utility, Environment: Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~95%RH non-condensing
