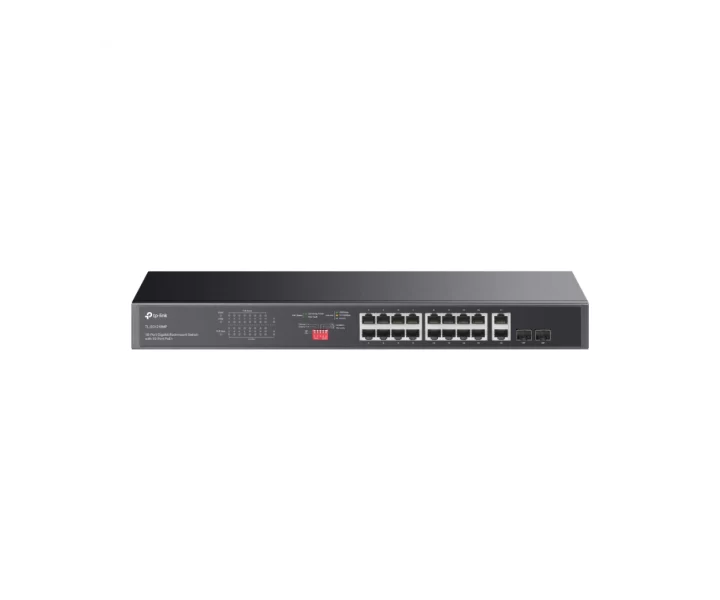

TP-Link TL-SG1218MP özellikleri ve fiyatları

TP-Link TL-SG1218MP teknik özellikleri

Model kodu

TL-SG1218MP

Anahtar türü

Unmanaged

Ethernet bağlantıları

• 16× PoE+ gigabit RJ45 ports• 2× gigabit non-PoE RJ45 ports• 2× combo gigabit SFP slots

Ağ standartları

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z, IEEE 802.1p

Desteklenen ağ kabloları

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-X MMF, SMF

MAC adres tablosu

8K

Paket arabelleği

4.1 Mbit

Jumbo çerçeve

10 KB

Güç kaynağı

100–240 VAC, 50/60 Hz

Güç tüketimi koşulları

• 19 W (220/50 Hz. no PD connected)• 293.34 W (220/50 Hz. with 250 W PD connected)

En yüksek ısı yayılımı

• 64.79 BTU/h (no PD connected)• 1000.29 BTU/h (with 250 W PD connected)

Boyutlar

17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm)

Kurulum biçimi

Rack Mountable

Soğutma fanları

2

Sertifikalar

CE, FCC

Kutu içeriği

• TL-SG1218MP• Installation Guide• Power Cord• Rackmount Kit• Rubber Feet

Ek anahtarlama özellikleri

• Compatible With IEEE 802.3af/at Compliant PDs• 802.1p/DSCP QoS• Mac Address Auto-Learning And Auto-Aging• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode• Extend Mode (Ports 1–4, Up to 250 m PoE power supply and data transmission)• Priority Mode (Ports 1–4)• Isolation Mode (Ports 1-8/9-16)• PoE Auto Recovery (Ports 1-16)

Fiziksel güvenlik

Yes

Dahil edilen fan sayısı

2

PoE güç koşulları

• Standard: 802.3at/802.3af compliant• PoE Ports: Ports 1–16• PoE Power Budget: 250 W

PoE desteği

Var

Toplam PoE bütçesi

250 W

Anahtarlama kapasitesi

36 Gbps

Çalışma sıcaklığı

0–50 °C (32–122 °F)•

Saklama sıcaklığı

-40–70 °C (-40–158 °F)•

Çalışma nemi

10–90% RH non-condensing•

Depolama nemi

5–90% RH non-condensing

Üreticinin ayrıntılı teknik bilgileri

Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z, IEEE 802.1p, Interface: • 16× PoE+ gigabit RJ45 ports• 2× gigabit non-PoE RJ45 ports• 2× combo gigabit SFP slots, Network Media: • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-X MMF, SMF, Fan Quantity: 2, Physical Security Lock: Yes, Power Supply: 100–240 VAC, 50/60 Hz, PoE Ports (RJ45): • Standard: 802.3at/802.3af compliant• PoE Ports: Ports 1–16• PoE Power Budget: 250 W, Dimensions ( W x D x H ): 17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm), Mounting: Rack Mountable, Max. Power Consumption: • 19 W (220/50 Hz. no PD connected)• 293.34 W (220/50 Hz. with 250 W PD connected), Max Heat Dissipation: • 64.79 BTU/h (no PD connected)• 1000.29 BTU/h (with 250 W PD connected), Packet Buffer Memory: 4.1 Mbit, Advanced Features: • Compatible With IEEE 802.3af/at Compliant PDs• 802.1p/DSCP QoS• Mac Address Auto-Learning And Auto-Aging• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode• Extend Mode (Ports 1–4, Up to 250 m PoE power supply and data transmission)• Priority Mode (Ports 1–4)• Isolation Mode (Ports 1-8/9-16)• PoE Auto Recovery (Ports 1-16), Jumbo Frame: 10 KB, Switching Capacity: 36 Gbps, Packet Forwarding Rate: 26.78 Mbps, MAC Address Table: 8K, Certification: CE, FCC, Package Content: • TL-SG1218MP• Installation Guide• Power Cord• Rackmount Kit• Rubber Feet, Environment: • Operating Temperature: 0–50 °C (32–122 °F)• Storage Temperature: -40–70 °C (-40–158 °F)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
