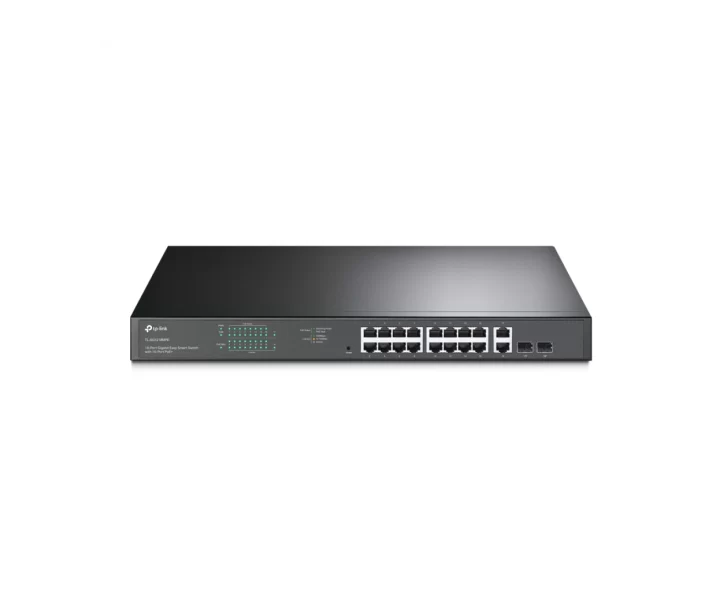

TP-Link TL-SG1218MPE özellikleri ve fiyatları

TP-Link TL-SG1218MPE teknik özellikleri

Model kodu

TL-SG1218MPE

Anahtar türü

Easy Smart

Ethernet bağlantıları

• 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)• 2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)• 2× Combo Gigabit SFP Ports

Ağ standartları

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

Desteklenen ağ kabloları

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF

İletim yöntemi

Store-And-Forward

MAC adres tablosu

8K

Paket arabelleği

4.1 Mbit

Jumbo çerçeve

10 KB

Güç kaynağı

100–240V AC, 50/60 Hz

Güç tüketimi koşulları

v2, v3, 3.20, v4:• 21.4 W (220/50Hz. no PD connected)• 296.3 W (220/50Hz. with 250 W PD connected) v5:• 19.4 W (220V/50Hz. no PD connected)• 293.3 W (220V/50Hz. with 250W PD connected)

En yüksek ısı yayılımı

v2, v3, 3.20, v4:• 72.97 BTU/h (no PD connected)• 1010.38 BTU/h (with 250 W PD connected) v5:• 66.15 BTU/h (no PD connected)• 1000.15 BTU/h (with 250 W PD connected)

Boyutlar

17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Kurulum biçimi

Rack Mountable

Soğutma fanları

2 Fans

VLAN özellikleri

• Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)• MTU/Port/Tag VLAN

Hizmet kalitesi özellikleri

• Support Port-based 802.1p/DSCP priority• Support 4 priority queues• Rate Limit• Storm Control

Katman 2 özellikleri

• IGMP Snooping V1/V2/V3• Static Link Aggregation• Port Mirroring• Cable Diagnostics• Loop Prevention• PoE Auto Recovery

Sertifikalar

CE, FCC

Kutu içeriği

• TL-SG1218MPE• Power Cord• Installation Guide• Rackmount Kit• Rubber Feet

Fiziksel güvenlik

Yes

PoE güç koşulları

• Standard: 802.3at/802.3af compliant• PoE+ Ports: Ports 1–16• Power Supply: 250 W

PoE desteği

Var

Anahtarlama kapasitesi

36 Gbps

Çalışma sıcaklığı

0–50 °C (32–122 °F)•

Saklama sıcaklığı

-40–70 °C (-40–158 °F)•

Çalışma nemi

10–90% RH non-condensing•

Depolama nemi

5–90% RH non-condensing

Üreticinin ayrıntılı teknik bilgileri

Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p, Interface: • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)• 2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)• 2× Combo Gigabit SFP Ports, Network Media: • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF, Fan Quantity: 2 Fans, Physical Security Lock: Yes, Power Supply: 100–240V AC, 50/60 Hz, PoE Ports (RJ45): • Standard: 802.3at/802.3af compliant• PoE+ Ports: Ports 1–16• Power Supply: 250 W, Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm), Mounting: Rack Mountable, Max. Power Consumption: v2, v3, 3.20, v4:• 21.4 W (220/50Hz. no PD connected)• 296.3 W (220/50Hz. with 250 W PD connected) v5:• 19.4 W (220V/50Hz. no PD connected)• 293.3 W (220V/50Hz. with 250W PD connected), Max Heat Dissipation: v2, v3, 3.20, v4:• 72.97 BTU/h (no PD connected)• 1010.38 BTU/h (with 250 W PD connected) v5:• 66.15 BTU/h (no PD connected)• 1000.15 BTU/h (with 250 W PD connected), Packet Buffer Memory: 4.1 Mbit, Jumbo Frame: 10 KB, Switching Capacity: 36 Gbps, Packet Forwarding Rate: 26.78 Mbps, MAC Address Table: 8K, Quality of Service: • Support Port-based 802.1p/DSCP priority• Support 4 priority queues• Rate Limit• Storm Control, L2 Features: • IGMP Snooping V1/V2/V3• Static Link Aggregation• Port Mirroring• Cable Diagnostics• Loop Prevention• PoE Auto Recovery, VLAN: • Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)• MTU/Port/Tag VLAN, Management Features: • Web-based GUI• Easy Smart Configuration Utility, Transmission Method: Store-And-Forward, Certification: CE, FCC, Package Content: • TL-SG1218MPE• Power Cord• Installation Guide• Rackmount Kit• Rubber Feet, Environment: • Operating Temperature: 0–50 °C (32–122 °F)• Storage Temperature: -40–70 °C (-40–158 °F)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
