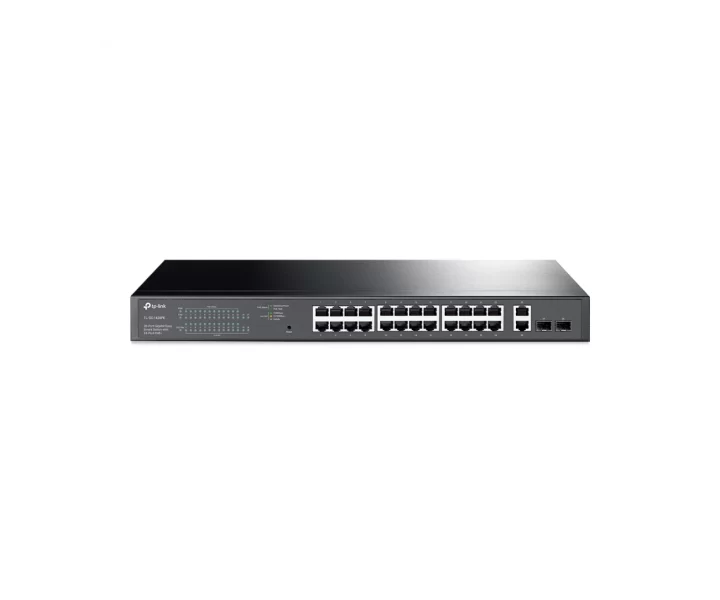

TP-Link TL-SG1428PE özellikleri ve fiyatları

TP-Link TL-SG1428PE teknik özellikleri

Model kodu

TL-SG1428PE

Anahtar türü

Easy Smart

Ethernet bağlantıları

26× 10/100/1000Mbps RJ45 Ports (24× PoE+)2× Gigabit SFP Slots

Ağ standartları

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3xIEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

Desteklenen ağ kabloları

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)100BASE-TX: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF

İletim yöntemi

Store-And-Forward

MAC adres tablosu

8K

Paket arabelleği

4.1 Mbit

Jumbo çerçeve

9 KB

Güç kaynağı

100-240V AC, 50/60 Hz

Güç tüketimi koşulları

27 W (220/50Hz. no PD connected)304.7 W (220/50Hz. with 250 W PD connected)

En yüksek ısı yayılımı

92.07 BTU/h (no PD connected)1039.03 BTU/h (with 250 W PD connected)

Boyutlar

17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)

Kurulum biçimi

Rack Mountable

Soğutma fanları

2 Fans

VLAN özellikleri

Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)MTU/Port/Tag VLAN

Hizmet kalitesi özellikleri

Support Port-based 802.1p/DSCP prioritySupport 4 priority queuesRate LimitStorm Control

Katman 2 özellikleri

IGMP Snooping V1/V2/V3Static Link AggregationPort MirroringCable DiagnosticsLoop PreventionPoE Auto Recovery

Sertifikalar

CE, FCC

Kutu içeriği

TL-SG1428PEPower CordInstallation GuideRackmount KitRubber Feet

Fiziksel güvenlik

Yes

RJ45 bağlantıları

26 port

PoE güç koşulları

Standard: 802.3at/802.3af compliantPoE+ Ports: 24 PortsPower Supply: 250 W

PoE desteği

Var

Anahtarlama kapasitesi

56 Gbps

Çalışma sıcaklığı

0°C~50°C (32°F~122°F)

Saklama sıcaklığı

-40°C~70°C (-40°F~158°F)

Çalışma nemi

10% ~ 90% non-condensing

Depolama nemi

5%~90% non-condensing

Üreticinin ayrıntılı teknik bilgileri

Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3xIEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p, Interface: 26× 10/100/1000Mbps RJ45 Ports (24× PoE+)2× Gigabit SFP Slots, Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)100BASE-TX: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF, Fan Quantity: 2 Fans, Physical Security Lock: Yes, Power Supply: 100-240V AC, 50/60 Hz, PoE Ports (RJ45): Standard: 802.3at/802.3af compliantPoE+ Ports: 24 PortsPower Supply: 250 W, Dimensions ( W x D x H ): 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm), Mounting: Rack Mountable, Max. Power Consumption: 27 W (220/50Hz. no PD connected)304.7 W (220/50Hz. with 250 W PD connected), Max Heat Dissipation: 92.07 BTU/h (no PD connected)1039.03 BTU/h (with 250 W PD connected), Packet Buffer Memory: 4.1 Mbit, Jumbo Frame: 9 KB, Switching Capacity: 56 Gbps, Packet Forwarding Rate: 41.7 Mbps, MAC Address Table: 8K, Quality of Service: Support Port-based 802.1p/DSCP prioritySupport 4 priority queuesRate LimitStorm Control, L2 Features: IGMP Snooping V1/V2/V3Static Link AggregationPort MirroringCable DiagnosticsLoop PreventionPoE Auto Recovery, VLAN: Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)MTU/Port/Tag VLAN, Management Features: Web-Based GUIEasy Smart Configuration Utility, Transmission Method: Store-And-Forward, Certification: CE, FCC, Package Content: TL-SG1428PEPower CordInstallation GuideRackmount KitRubber Feet, Environment: Operating Temperature: 0°C~50°C (32°F~122°F)Storage Temperature: -40°C~70°C (-40°F~158°F)Operating Humidity: 10% ~ 90% non-condensingStorage Humidity: 5%~90% non-condensing
