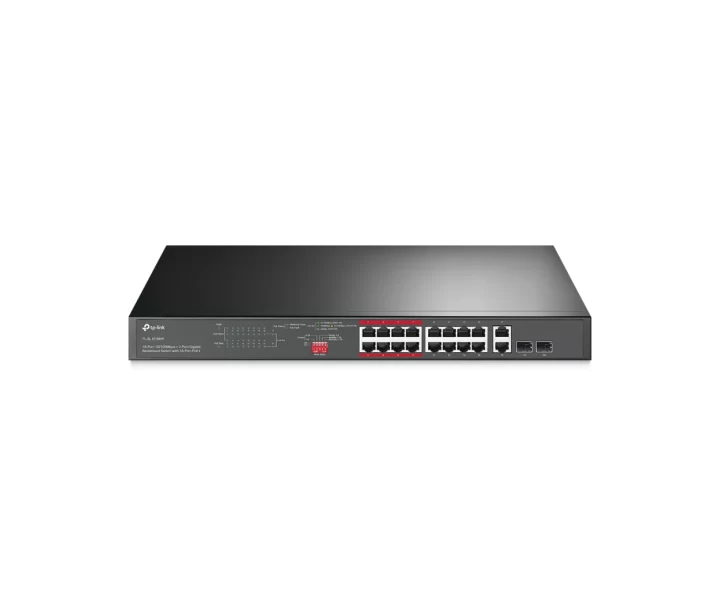

TP-Link TL-SL1218MP özellikleri ve fiyatları

TP-Link TL-SL1218MP teknik özellikleri

Model kodu

TL-SL1218MP

Anahtar türü

Unmanaged

Ethernet bağlantıları

• 16 PoE+ 10/100 Mbps RJ45 Ports• 2× 10/100/1000 Mbps RJ45 Ports• 2× Combo Gigabit SFP Slots

Desteklenen ağ kabloları

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF

İletim yöntemi

Store-And-Forward

MAC adres tablosu

8 K

Jumbo çerçeve

10 KB

Güç kaynağı

100–240V AC, 50/60 Hz

Güç tüketimi koşulları

• 12.55 W (220/50Hz. no PD connected)• 301.71 W (220/50Hz. with 250 W PD connected)

En yüksek ısı yayılımı

• 42.67 BTU/h (no PD connected)• 1025.81 BTU/h (with 250 W PD connected)

Boyutlar

17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Soğutma fanları

2 Fans

Sertifikalar

CE, FCC

Kutu içeriği

• TL-SL1218MP• Power Cable• Installation Guide• Two mounting brackets and the fittings

Ek anahtarlama özellikleri

• Compatible With IEEE 802.3at/af Compliant PDs• Extend Mode (Up to 250m PoE power supply and data transmission)• Priority Mode (Ports 1-8)• Isolation Mode (Ports 1-16)• PoE Auto Recovery (Ports 1-16)• Mac Address Auto-Learning And Auto-Aging• IEEE802.3x Flow Control

Fiziksel güvenlik

Yes

PoE güç koşulları

• Standard: 802.3at/802.3af compliant• PoE Ports: Ports 1–16• PoE Power Budget: 250 W

PoE desteği

Var

Toplam PoE bütçesi

250 W

Anahtarlama kapasitesi

7.2 Gbps

Paket iletme hızı

5.36 Mpps

Çalışma sıcaklığı

0–50 °C (32–122 °F)•

Saklama sıcaklığı

-40–70 °C (-40–158 °F)•

Çalışma nemi

10–90% RH non-condensing•

Depolama nemi

5–90% RH non-condensing

Üreticinin ayrıntılı teknik bilgileri

Interface: • 16 PoE+ 10/100 Mbps RJ45 Ports• 2× 10/100/1000 Mbps RJ45 Ports• 2× Combo Gigabit SFP Slots, Network Media: • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF, Fan Quantity: 2 Fans, Physical Security Lock: Yes, Power Supply: 100–240V AC, 50/60 Hz, PoE Ports (RJ45): • Standard: 802.3at/802.3af compliant• PoE Ports: Ports 1–16• PoE Power Budget: 250 W, Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm), Max. Power Consumption: • 12.55 W (220/50Hz. no PD connected)• 301.71 W (220/50Hz. with 250 W PD connected), Max Heat Dissipation: • 42.67 BTU/h (no PD connected)• 1025.81 BTU/h (with 250 W PD connected), Jumbo Frame: 10 KB, Switching Capacity: 7.2 Gbps, Packet Forwarding Rate: 5.36 Mpps, MAC Address Table: 8 K, Advanced Features: • Compatible With IEEE 802.3at/af Compliant PDs• Extend Mode (Up to 250m PoE power supply and data transmission)• Priority Mode (Ports 1-8)• Isolation Mode (Ports 1-16)• PoE Auto Recovery (Ports 1-16)• Mac Address Auto-Learning And Auto-Aging• IEEE802.3x Flow Control, Transmission Method: Store-And-Forward, Certification: CE, FCC, Package Content: • TL-SL1218MP• Power Cable• Installation Guide• Two mounting brackets and the fittings, Environment: • Operating Temperature: 0–50 °C (32–122 °F)• Storage Temperature: -40–70 °C (-40–158 °F)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
