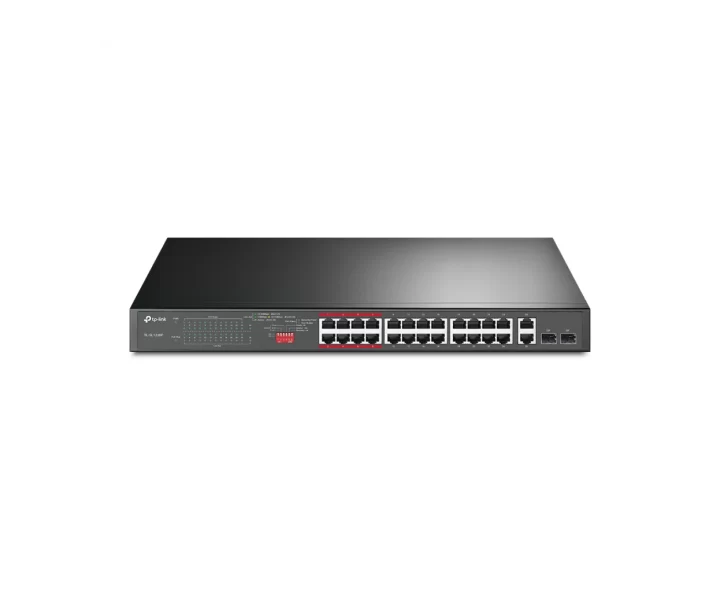

TP-Link TL-SL1226P özellikleri ve fiyatları

TP-Link TL-SL1226P teknik özellikleri

Model kodu

TL-SL1226P

Anahtar türü

Unmanaged

Ethernet bağlantıları

24× PoE+ 10/100 Mbps RJ45 Ports 2× 10/100/1000 Mbps RJ45 Ports 2× Combo Gigabit SFP Slots

Desteklenen ağ kabloları

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF

İletim yöntemi

Store-And-Forward

Jumbo çerçeve

10 KB

Güç kaynağı

100-240 VAC, 50/60 Hz

Güç tüketimi koşulları

14.81 W (220/50 Hz. no PD connected)302.88 W (220/50 Hz. with 250 W PD connected)

En yüksek ısı yayılımı

50.35 BTU/h (no PD connected)1029.79 BTU/h (with 250 W PD connected)

Boyutlar

17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Soğutma fanları

2 Fans

Sertifikalar

CE, FCC

Kutu içeriği

TL-SL1226P Power Cable Installation Guide Two mounting brackets and the fittings

Ek anahtarlama özellikleri

Compatible With IEEE 802.3at/af Compliant PDs Extend Mode (Up to 250m PoE power supply and data transmission) Priority Mode (Ports 1-8) Isolation Mode (Ports 1-24) PoE Auto Recovery (Ports 1-24) PD Detection Intelligent Power Supply Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control

Fiziksel güvenlik

Yes

Paket iletme hızı

6.54 Mpps

PoE güç koşulları

Standard: 802.3at/802.3af compliant PoE Ports: Port 1 – Port 24 PoE Power Budget: 250 W

PoE desteği

Var

Toplam PoE bütçesi

250 W

Anahtarlama kapasitesi

8.8 Gbps

Çalışma sıcaklığı

0–50 °C (32–122 °F)

Saklama sıcaklığı

-40–70 °C (-40–158 °F)

Çalışma nemi

10–90% non-condensing

Depolama nemi

5–90% non-condensing

Üreticinin ayrıntılı teknik bilgileri

Interface: 24× PoE+ 10/100 Mbps RJ45 Ports 2× 10/100/1000 Mbps RJ45 Ports 2× Combo Gigabit SFP Slots, Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF, Fan Quantity: 2 Fans, Physical Security Lock: Yes, Power Supply: 100-240 VAC, 50/60 Hz, Packet Forwarding Rate: 6.54 Mpps, PoE Ports (RJ45): Standard: 802.3at/802.3af compliant PoE Ports: Port 1 – Port 24 PoE Power Budget: 250 W, Mac Address Table: 8 K, Jumbo Frame: 10 KB, Switching Capacity: 8.8 Gbps, Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm), Max. Power Consumption: 14.81 W (220/50 Hz. no PD connected)302.88 W (220/50 Hz. with 250 W PD connected), Max Heat Dissipation: 50.35 BTU/h (no PD connected)1029.79 BTU/h (with 250 W PD connected), Advanced Features: Compatible With IEEE 802.3at/af Compliant PDs Extend Mode (Up to 250m PoE power supply and data transmission) Priority Mode (Ports 1-8) Isolation Mode (Ports 1-24) PoE Auto Recovery (Ports 1-24) PD Detection Intelligent Power Supply Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control, Transmission Method: Store-And-Forward, Certification: CE, FCC, Package Content: TL-SL1226P Power Cable Installation Guide Two mounting brackets and the fittings, Environment: Operating Temperature: 0–50 °C (32–122 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% non-condensing Storage Humidity: 5–90% non-condensing
