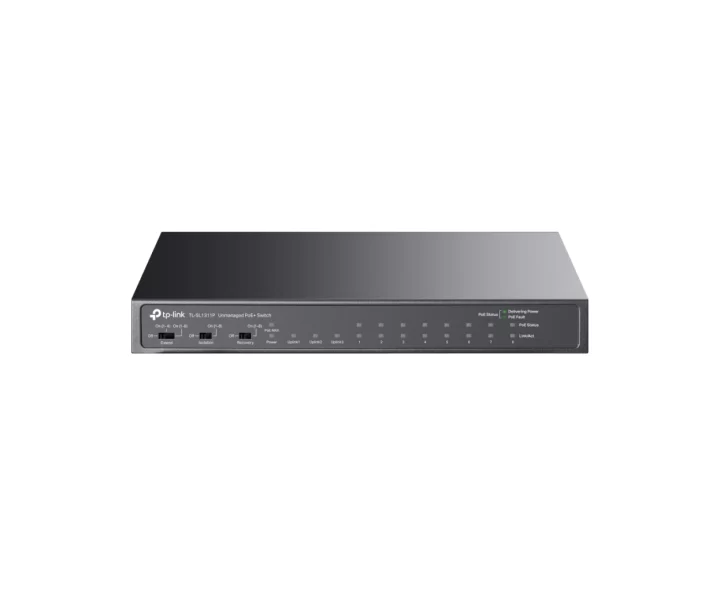

TP-Link TL-SL1311P özellikleri ve fiyatları

TP-Link TL-SL1311P teknik özellikleri

Model kodu

TL-SL1311P

Anahtar türü

Unmanaged

Ethernet bağlantıları

• 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port• AUTO Negotiation• AUTO MDI/MDIX

Desteklenen ağ kabloları

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)

İletim yöntemi

Store-And-Forward

Jumbo çerçeve

16 KB

Güç kaynağı

External Power Adapter (Output: 53.5 VDC / 1.31 A)

Güç tüketimi koşulları

• 5.61 W (220 V/50 Hz. no PD connected)• 77.32 W (110 V/50 Hz. with 65 W PD connected)

En yüksek ısı yayılımı

• 19.13 BTU/h (no PD connected)• 263.7 BTU/h (with 65 W PD connected)

Boyutlar

8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

Soğutma fanları

Fanless

Sertifikalar

FCC, CE

Kutu içeriği

• TL-SL1311P• Power Adapter• Installation Guide

Ek anahtarlama özellikleri

• Compatible With IEEE 802.3af/at Compliant PDs• Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)• Isolation Mode Button (Ports 1–8)• PoE Auto Recovery Button (Ports 1–8)• Mac Address Auto-Learning and Auto-Aging• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

Fiziksel güvenlik

Yes

Fansız tasarım

Var

Paket iletme hızı

5.6544 Mpps

PoE güç koşulları

• Standard: 802.3 af/at compliant• PoE Ports: Ports 1–8• Power Supply: 65 W

PoE desteği

Var

Anahtarlama kapasitesi

7.6 Gbps

Çalışma sıcaklığı

0–40 ℃ (32–104 ℉)•

Saklama sıcaklığı

-40–70 ℃ (-40–158 ℉)•

Çalışma nemi

10–90% RH non-condensing•

Depolama nemi

5–90% RH non-condensing

Üreticinin ayrıntılı teknik bilgileri

Interface: • 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port• AUTO Negotiation• AUTO MDI/MDIX, Network Media: • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m), Fan Quantity: Fanless, Physical Security Lock: Yes, External Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A), Packet Forwarding Rate: 5.6544 Mpps, PoE Ports (RJ45): • Standard: 802.3 af/at compliant• PoE Ports: Ports 1–8• Power Supply: 65 W, Mac Address Table: 2K, Jumbo Frame: 16 KB, Switching Capacity: 7.6 Gbps, Dimensions ( W x D x H ): 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm), Max. Power Consumption: • 5.61 W (220 V/50 Hz. no PD connected)• 77.32 W (110 V/50 Hz. with 65 W PD connected), Max Heat Dissipation: • 19.13 BTU/h (no PD connected)• 263.7 BTU/h (with 65 W PD connected), Advanced Features: • Compatible With IEEE 802.3af/at Compliant PDs• Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)• Isolation Mode Button (Ports 1–8)• PoE Auto Recovery Button (Ports 1–8)• Mac Address Auto-Learning and Auto-Aging• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode, Transmission Method: Store-And-Forward, Certification: FCC, CE, Package Content: • TL-SL1311P• Power Adapter• Installation Guide, Environment: • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
