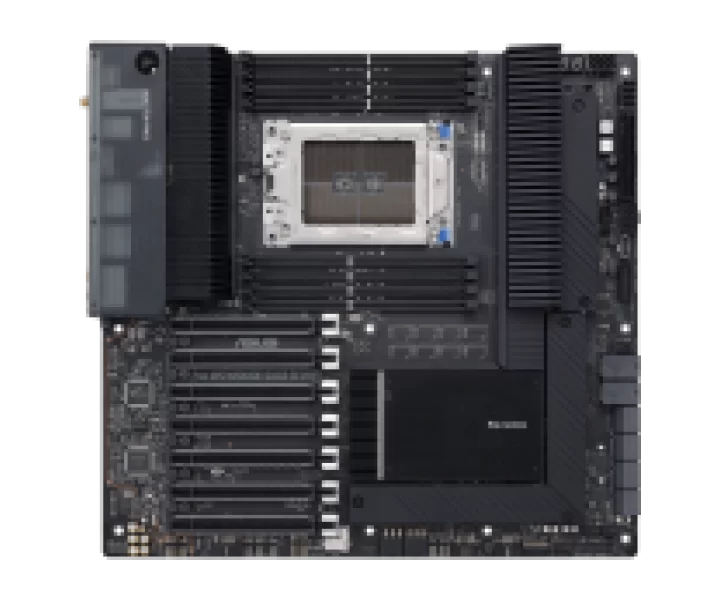

Pro WS WRX80E-SAGE SE WIFI özellikleri ve fiyatları

Pro WS WRX80E-SAGE SE WIFI teknik özellikleri

Model kodu

Pro WS WRX80E-SAGE SE WIFI

İşlemci soketi

SWRX8

Anakart yonga seti

AMD WRX80 Chipset

Anakart biçimi

E-ATX

RAM türü

DDR4

Uyumlu işlemciler

AMD Socket sWRX8 for AMD Ryzen Threadripper PRO Series Processors*; * Refer to www.asus.com for CPU support list.

Desteklenen bellek yapılandırmaları

8 x DIMM, Max. 2048GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM, 3DS R-DIMM and LR-DIMM Memory*; 8 Channel Memory Architecture; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

RAM yuvası sayısı

8

Desteklenen en yüksek RAM

2048 GB

PCIe yuvaları

AMD Ryzen Threadripper PRO Series Processors; 7 x PCIe 4.0/3.0 x16 slot(s)*; * Support PCIe bandwidth bifurcation for RAID on CPU function.

PCIe şerit paylaşımı ve işlemci koşulları

AMD Ryzen Threadripper PRO Series Processors; 7 x PCIe 4.0/3.0 x16 slot(s)*; * Support PCIe bandwidth bifurcation for RAID on CPU function.

M.2 uyumluluğu ve şerit paylaşımı

Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports; AMD Ryzen Threadripper PRO Series Processors; M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes); M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes); U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices*; AMD WRX80 Chipset; M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes); U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices*; 4 x SATA 6Gb/s ports; ASMedia ASM1061 Controller; 4 x SATA 6Gb/s ports; Supports NVMe RAID configurations via M.2 storages; *The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is purchased separately.

RAID desteği

Supports NVMe RAID configurations via M.2 storages

Depolama için M.2 yuvası sayısı

3

SATA bağlantı sayısı

8

USB bağlantısı

Rear USB (Total 10 ports); 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C); 9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C); Front USB (Total 7 ports); 1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C); 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Kablolu ağ bağlantısı

1 x Intel X550-AT2 dual 10Gb Ethernet

Wi-Fi

Wi-Fi 6; 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax); Supports 2.4/5GHz frequency band; Bluetooth v5.2

Ses çıkışı

Realtek ALC4080 7.1 Surround Sound High Definition Audio CODEC; - Impedance sense for front and rear headphone outputs; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input; - Supports up to 32-Bit/384 kHz playback

Ses yongası

Realtek ALC4080 7.1 Surround Sound High Definition Audio CODEC

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C); 9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C); 1 x Wi-Fi Module; 2 x Intel X550-AT2 dual 10Gb Ethernet ports; 5 x Audio jacks; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack button; 1 x Clear CMOS button

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 1 x 4-pin CPU Fan header(s); 1 x 4-pin CPU OPT Fan header(s); 6 x 4-pin Chassis Fan header(s); 1 x VRM heatsink Fan header; 1 x Chipset Fan header; Power related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connector; 2 x 6-pin PCIe Graphics Card connector; 1 x 8-pin PCIe Power connector; Storage related; 3 x M.2 slots (Key M); 8 x SATA 6Gb/s ports; 2 x U.2 slots; USB; 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C); 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports; BMC Related; 1 x BMC switch; 1 x IPMI switch; 1 x Messange LED header; 1 x Micro SD card socket; 2 x LAN LED header(s); 1 x Location LED header; 1 x Location button header; 1 x PSU_SMB header; 1 x SMART_PSU switch; 1 x VGA switch; 1 x VGA header; 1 x VPP_I2C header; Miscellaneous; 1 x COM Port header; 1 x FlexKey button; 1 x Front Panel Audio header (AAFP); 1 x SPI TPM header (14-1pin); 1 x Start button; 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x RTC Battery header; 1 x Thermal Sensor header

Fan ve pompa bağlantıları

Fan and Cooling related; 1 x 4-pin CPU Fan header(s); 1 x 4-pin CPU OPT Fan header(s); 6 x 4-pin Chassis Fan header(s); 1 x VRM heatsink Fan header; 1 x Chipset Fan header

Güç bağlantıları

1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connector; 1 x 8-pin PCIe Power connector

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS Q-Design; - Q-Code; - Q-Connector; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; - Clear CMOS button; - ProCool II; - Pre-mounted I/O shield; - SafeSlot; Bespoke Motherboard Design & Business Focused Features; - Event Log in ASMB9-iKVM; - 24/7 Reliability; - Overcurrent Protection; ASMB9-iKVM for KVM-over-Internet

Boyutlar

EATX(EEB) Form Factor; 12.2 inch x 13 inch ( 30.98 cm x 33.02 cm )

Kutu içeriği

Cables; 6 x SATA 6Gb/s cables; 1 x VGA cable; Miscellaneous; 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas; 1 x Hyper M.2 X16 Gen 4 Card; 4 x M.2 Rubber Package(s); 6 x M.2 SSD screw package(s); 1 x Q-connector; Installation Media; 1 x Support DVD; Documentation; 1 x User manual

Üreticinin ayrıntılı teknik bilgileri

Model: Pro WS WRX80E-SAGE SE WIFI, News & Updates: Socket sWRX8, CPU: AMD Socket sWRX8 for AMD Ryzen Threadripper PRO Series Processors* * Refer to www.asus.com for CPU support list., Chipset: AMD WRX80 Chipset, Memory: 8 x DIMM, Max. 2048GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM, 3DS R-DIMM and LR-DIMM Memory* 8 Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Expansion Slots: AMD Ryzen Threadripper PRO Series Processors 7 x PCIe 4.0/3.0 x16 slot(s)* * Support PCIe bandwidth bifurcation for RAID on CPU function., Multi-GPU Support: Supports NVIDIA 4-Way/3-Way/2-Way SLI Technology, Storage: Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports AMD Ryzen Threadripper PRO Series Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices* AMD WRX80 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices* 4 x SATA 6Gb/s ports ASMedia ASM1061 Controller 4 x SATA 6Gb/s ports Supports NVMe RAID configurations via M.2 storages *The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is purchased separately., Ethernet: 1 x Intel X550-AT2 dual 10Gb Ethernet, Wireless & Bluetooth: Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2, USB: Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports, Audio: Realtek ALC4080 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback, Back Panel I/O Ports: 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C) 1 x Wi-Fi Module 2 x Intel X550-AT2 dual 10Gb Ethernet ports 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button, Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 6 x 4-pin Chassis Fan header(s) 1 x VRM heatsink Fan header 1 x Chipset Fan header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 2 x 6-pin PCIe Graphics Card connector 1 x 8-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 8 x SATA 6Gb/s ports 2 x U.2 slots USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports BMC Related 1 x BMC switch 1 x IPMI switch 1 x Messange LED header 1 x Micro SD card socket 2 x LAN LED header(s) 1 x Location LED header 1 x Location button header 1 x PSU_SMB header 1 x SMART_PSU switch 1 x VGA switch 1 x VGA header 1 x VPP_I2C header Miscellaneous 1 x COM Port header 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x Start button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x RTC Battery header 1 x Thermal Sensor header, Special Features: ASUS Q-Design - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot Bespoke Motherboard Design & Business Focused Features - Event Log in ASMB9-iKVM - 24/7 Reliability - Overcurrent Protection ASMB9-iKVM for KVM-over-Internet, Software Features: ASUS Exclusive Software Armoury Crate ASUS CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS:X Ultra Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE, Accessories: Cables 6 x SATA 6Gb/s cables 1 x VGA cable Miscellaneous 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas 1 x Hyper M.2 X16 Gen 4 Card 4 x M.2 Rubber Package(s) 6 x M.2 SSD screw package(s) 1 x Q-connector Installation Media 1 x Support DVD Documentation 1 x User manual, Operating System: Windows 10 64-bit, Form Factor: EATX(EEB) Form Factor 12.2 inch x 13 inch ( 30.98 cm x 33.02 cm )
