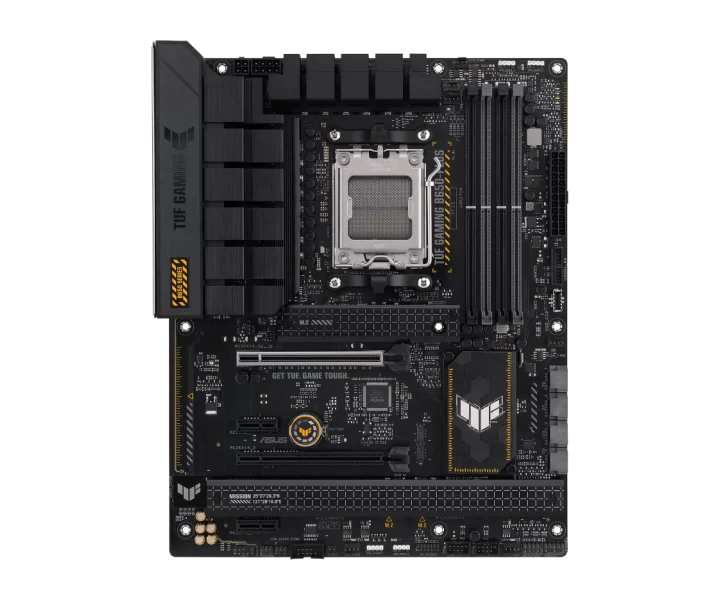

TUF GAMING B650-PLUS özellikleri ve fiyatları

TUF GAMING B650-PLUS teknik özellikleri

Model kodu

TUF GAMING B650-PLUS

İşlemci soketi

AM5

Anakart yonga seti

AMD B650

Anakart biçimi

ATX

RAM türü

DDR5

Uyumlu işlemciler

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*; * Refer to www.asus.com for CPU support list.

Desteklenen bellek yapılandırmaları

4 x DIMM, Max. 256GB, DDR5; 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports AMD EXTended Profiles for Overclocking (EXPO); OptiMem II; * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.; ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

256 GB

Bellek kanalı sayısı

2 kanal

PCIe yuvaları

AMD Ryzen 9000 & 7000 Series Desktop Processors*; 1 x PCIe 4.0/3.0 x16 slot(s); AMD Ryzen 8000 Series Desktop Processors*; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**; AMD B650 Chipset; 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode); 2 x PCIe 4.0/3.0 x1 slots; * Please check PCIe bifurcation table on support site (https://www.asus.com/support/FAQ/1037507/).; ** Specifications vary by CPU types.; - To ensure compatibility of the device installed, please refer to; https://www.asus.com/support/ for the list of supported peripherals.

PCIe şerit paylaşımı ve işlemci koşulları

AMD Ryzen 9000 & 7000 Series Desktop Processors*; 1 x PCIe 4.0/3.0 x16 slot(s); AMD Ryzen 8000 Series Desktop Processors*; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**; AMD B650 Chipset; 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode); 2 x PCIe 4.0/3.0 x1 slots; * Please check PCIe bifurcation table on support site (https://www.asus.com/support/FAQ/1037507/).; ** Specifications vary by CPU types.; - To ensure compatibility of the device installed, please refer to; https://www.asus.com/support/ for the list of supported peripherals.

M.2 uyumluluğu ve şerit paylaşımı

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); AMD Ryzen 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**; AMD B650 Chipset; M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**; 4 x SATA 6Gb/s ports; *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.; ** Specifications vary by CPU types.; *** M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is populated.

RAID desteği

*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Depolama için M.2 yuvası sayısı

3

SATA bağlantı sayısı

4

USB bağlantısı

Rear USB (Total 8 ports); 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C); 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C); 4 x USB 2.0 port(s) (4 x Type-A); Front USB (Total 7 ports); 1 x USB 3.2Gen 1 connector (supports USB Type-C); 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Kablolu ağ bağlantısı

1 x Realtek 2.5Gb Ethernet; TUF LANGuard

Ses çıkışı

Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Power pre-regulator reduces power input noise to ensure consistent performance; - Premium audio capacitors; - Dedicated audio PCB layers; - Audio cover; - Unique de-pop circuit; * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.; ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Ses yongası

Realtek 7.1 Surround Sound High Definition Audio CODEC*

Ses kanalı yapılandırması

7.1 kanal

Arka panel bağlantıları

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C); 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C); 4 x USB 2.0 port(s) (4 x Type-A); 1 x DisplayPort; 1 x HDMI port; 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x BIOS FlashBack button

Dahili bağlantılar ve ön panel başlıkları

Fan and Cooling related; 1 x 4-pin CPU Fan header(s); 1 x 4-pin CPU OPT Fan header(s); 1 x 4-pin AIO Pump header(s); 4 x 4-pin Chassis Fan header(s); Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; Storage related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C ); 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 header(s); 1 x Aura RGB header(s); 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt (USB4) header

Fan ve pompa bağlantıları

Fan and Cooling related; 1 x 4-pin CPU Fan header(s); 1 x 4-pin CPU OPT Fan header(s); 1 x 4-pin AIO Pump header(s); 4 x 4-pin Chassis Fan header(s)

Güç bağlantıları

1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector

Görüntü çıkışları ve kullanım koşulları

1 x DisplayPort*; 1 x HDMI port**; * Supports max. 8K@60Hz as specified in DisplayPort 1.4.; ** Supports 4K@60Hz as specified in HDMI 2.1.; *** VGA resolution support depends on processors' or graphic cards' resolution.

BIOS özellikleri

256 Mb Flash ROM, UEFI AMI BIOS

Diğer anakart özellikleri

ASUS TUF PROTECTION; - DIGI+ VRM (- Digital power design with DrMOS); - Enhanced DRAM Overcurrent Protection; - ESD Guards; - TUF LANGuard; - Overvoltage Protection; - SafeSlot Core+; - Stainless-Steel Back I/O; ASUS Q-Design; - M.2 Q-Latch; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; - ProCool; - Pre-mounted I/O shield; - SafeDIMM; Aura Sync; - Aura RGB header(s); - Addressable Gen 2 header(s)

Boyutlar

ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Üreticinin ayrıntılı teknik bilgileri

Model: TUF GAMING B650-PLUS, News & Updates: Socket AM5, CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list., Chipset: AMD B650, Memory: 4 x DIMM, Max. 256GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function, Graphics: 1 x DisplayPort* 1 x HDMI port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution., Expansion Slots: AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0/3.0 x16 slot(s) AMD Ryzen 8000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 4.0/3.0 x1 slots * Please check PCIe bifurcation table on support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals., Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. ** Specifications vary by CPU types. *** M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is populated., Ethernet: 1 x Realtek 2.5Gb Ethernet TUF LANGuard, USB: Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports, Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output., Back Panel I/O Ports: 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button, Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C ) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x Aura RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header, Special Features: ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header(s) - Addressable Gen 2 header(s), Software Features: ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Operating System: Windows 11 Windows 10 64-bit, Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
