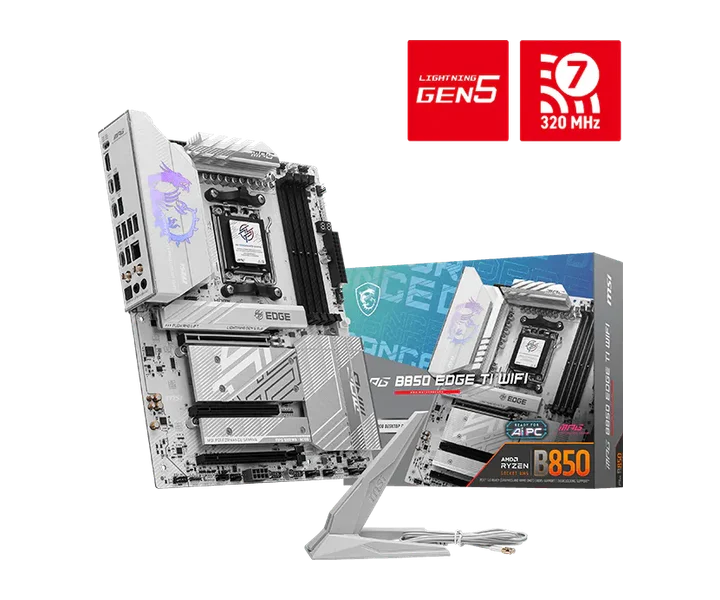

MSI MPG B850 EDGE TI WIFI

Mağaza ve satıcı teklifleri

Tam üretici kodunu, boyut veya kapasite sürümünü ve paket içeriğini birlikte kontrol et. Bölgesel özellikler, aksesuarlar ve garanti koşulları satıcıya göre farklı olabilir. Son 48 saatte görülen stoktaki teklifler önce gösterilir.

0 teklif gösteriliyor. Kargosu bilinmeyen ürün fiyatı, kesin toplam maliyet değildir.

Diğer mağazalarda aynı modeli ara

Arama bağlantıları fiyat, stok veya satışta olma kanıtı değildir.

Tüm teknik özellikler

25 kaynaklı alan. Kaynakta açıklanmayan bilgiler için değer tahmin edilmez. Her alanın üretici belgesini ve kontrol tarihini inceleyebilirsin.

25 alan gösteriliyor

Üreticinin model / aile bilgisi

MPG B850 EDGE TI WIFIMSI resmî teknik özellikleri ↗13 Eki 2026

İşlemci soketi

AM5MSI resmî teknik özellikleri ↗13 Eki 2026

Anakart yonga seti

AMD B850MSI resmî teknik özellikleri ↗13 Eki 2026

Anakart boyut standardı

ATXMSI resmî teknik özellikleri ↗13 Eki 2026

RAM teknolojisi

DDR5MSI resmî teknik özellikleri ↗13 Eki 2026

Üreticinin işlemci destek bilgisi

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5MSI resmî teknik özellikleri ↗13 Eki 2026

Desteklenen bellek

4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO TM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard only have single-sided latche. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.MSI resmî teknik özellikleri ↗13 Eki 2026

PCIe yuvaları ve hat sayıları

3x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot (From CPU) • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) PCI_E2 slot (From B850 chipset) • Supports up to PCIe 3.0 x1 PCI_E3* slot (From B850 chipset) • Supports up to PCIe 4.0 x4 *PCI_E3 slot will run x2 speed when installing devices in the M.2_3 slotMSI resmî teknik özellikleri ↗13 Eki 2026

pcie Slot Conditions

3x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot (From CPU) • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) PCI_E2 slot (From B850 chipset) • Supports up to PCIe 3.0 x1 PCI_E3* slot (From B850 chipset) • Supports up to PCIe 4.0 x4 *PCI_E3 slot will run x2 speed when installing devices in the M.2_3 slotMSI resmî teknik özellikleri ↗13 Eki 2026

storage Interfaces

4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) M.2_1 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) • Supports 2280/22110 storage devices M.2_2 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600 / 8400 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) M2_3* slot (From Chipset) • Supports up to PCIe 4.0 x2 • Supports 2260/2280 storage devices M2_4 slot (From Chipset) • Supports up to PCIe 4.0 x4 • Supports 2260/2280 storage devices * PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot.MSI resmî teknik özellikleri ↗13 Eki 2026

M.2 uyumluluğu ve hat paylaşımı

4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) M.2_1 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) • Supports 2280/22110 storage devices M.2_2 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600 / 8400 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) M2_3* slot (From Chipset) • Supports up to PCIe 4.0 x2 • Supports 2260/2280 storage devices M2_4 slot (From Chipset) • Supports up to PCIe 4.0 x4 • Supports 2260/2280 storage devices * PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot.MSI resmî teknik özellikleri ↗13 Eki 2026

raid Support

• Supports RAID 0, RAID 1 and RAID 10* for M.2 NVMe storage devices *RAID 10 for M.2 NVMe storage devices is only supported by AMD Ryzen 9000/7000 series CPUMSI resmî teknik özellikleri ↗13 Eki 2026

USB bağlantısı

4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 3x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)MSI resmî teknik özellikleri ↗13 Eki 2026

Ethernet

1x Realtek ® 8126 5G LANMSI resmî teknik özellikleri ↗13 Eki 2026

Ön panel / dahili bağlantılar

1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x PUMP_SYS Fan 6x System Fan 1x ARGB+FAN+USB2.0 Header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C portsMSI resmî teknik özellikleri ↗13 Eki 2026

Arka bağlantılar

Clear CMOS Button USB 10Gbps Type-A USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button HDMI™ USB 10Gbps Type-C USB 10Gbps Type-A USB 10Gbps Type-C Optical S/PDIF OutMSI resmî teknik özellikleri ↗13 Eki 2026

Harici görüntü çıkışları

1x HDMI™ Support HDMI TM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.MSI resmî teknik özellikleri ↗13 Eki 2026

Ses çıkışı

Realtek ® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF outputMSI resmî teknik özellikleri ↗13 Eki 2026

motherboard Features

4x EZ Debug LED 1x EZ Digit Debug LED 1x EZ Memory Detection LEDMSI resmî teknik özellikleri ↗13 Eki 2026

RAM yuvası sayısı

4MSI resmî teknik özellikleri ↗13 Eki 2026

Desteklenen en yüksek bellek

256 GBMSI resmî teknik özellikleri ↗13 Eki 2026

Wi-Fi

Wi-Fi 7MSI resmî teknik özellikleri ↗13 Eki 2026

Bluetooth sürümü

5.4MSI resmî teknik özellikleri ↗13 Eki 2026

wifi Module

Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth ® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.MSI resmî teknik özellikleri ↗13 Eki 2026

Üreticinin ayrıntılı teknik tablosu

• Chipset: AMD B850
• CPU: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
• Memory: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO TM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard only have single-sided latche. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
• Onboard Graphics: 1x HDMI™ Support HDMI TM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Slot: 3x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot (From CPU) • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) PCI_E2 slot (From B850 chipset) • Supports up to PCIe 3.0 x1 PCI_E3* slot (From B850 chipset) • Supports up to PCIe 4.0 x4 *PCI_E3 slot will run x2 speed when installing devices in the M.2_3 slot
• Audio: Realtek ® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output
• Storage: 4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) M.2_1 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) • Supports 2280/22110 storage devices M.2_2 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600 / 8400 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) M2_3* slot (From Chipset) • Supports up to PCIe 4.0 x2 • Supports 2260/2280 storage devices M2_4 slot (From Chipset) • Supports up to PCIe 4.0 x4 • Supports 2260/2280 storage devices * PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot.
• RAID: • Supports RAID 0, RAID 1 and RAID 10* for M.2 NVMe storage devices *RAID 10 for M.2 NVMe storage devices is only supported by AMD Ryzen 9000/7000 series CPU
• USB: 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 3x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
• LAN: 1x Realtek ® 8126 5G LAN
• Internal IO: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x PUMP_SYS Fan 6x System Fan 1x ARGB+FAN+USB2.0 Header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
• WIRELESS LAN & BLUETOOTH: Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth ® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
• LED FEATURE: 4x EZ Debug LED 1x EZ Digit Debug LED 1x EZ Memory Detection LED
• BACK PANEL PORTS: Clear CMOS Button USB 10Gbps Type-A USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button HDMI™ USB 10Gbps Type-C USB 10Gbps Type-A USB 10Gbps Type-C Optical S/PDIF Out
• OPERATING SYSTEM: Support for Windows ® 11 64-bit
• PCB Info: ATX 304.8mmx243.84mm

MSI resmî teknik özellikleri ↗13 Eki 2026
