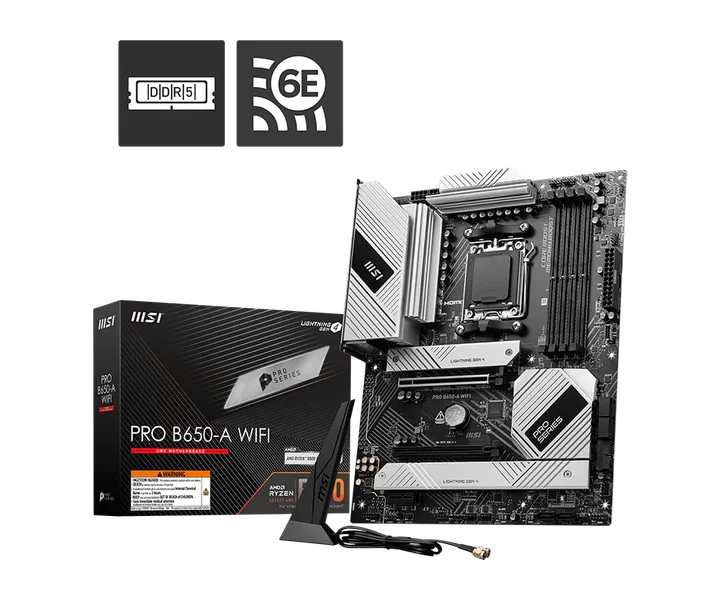

MSI PRO B650 A WIFI

Mağaza ve satıcı teklifleri

Tam üretici kodunu, boyut veya kapasite sürümünü ve paket içeriğini birlikte kontrol et. Bölgesel özellikler, aksesuarlar ve garanti koşulları satıcıya göre farklı olabilir. Son 48 saatte görülen stoktaki teklifler önce gösterilir.

0 teklif gösteriliyor. Kargosu bilinmeyen ürün fiyatı, kesin toplam maliyet değildir.

Diğer mağazalarda aynı modeli ara

Arama bağlantıları fiyat, stok veya satışta olma kanıtı değildir.

Tüm teknik özellikler

25 kaynaklı alan. Kaynakta açıklanmayan bilgiler için değer tahmin edilmez. Her alanın üretici belgesini ve kontrol tarihini inceleyebilirsin.

25 alan gösteriliyor

Üreticinin model / aile bilgisi

PRO B650 A WIFIMSI resmî teknik özellikleri ↗13 Eki 2026

İşlemci soketi

AM5MSI resmî teknik özellikleri ↗13 Eki 2026

Anakart yonga seti

AMD B650MSI resmî teknik özellikleri ↗13 Eki 2026

Anakart boyut standardı

ATXMSI resmî teknik özellikleri ↗13 Eki 2026

RAM teknolojisi

DDR5MSI resmî teknik özellikleri ↗13 Eki 2026

Üreticinin işlemci destek bilgisi

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5MSI resmî teknik özellikleri ↗13 Eki 2026

Desteklenen bellek

4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7600+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPOMSI resmî teknik özellikleri ↗13 Eki 2026

PCIe yuvaları ve hat sayıları

2x PCI-E x16 slot (Qty) • Supports x16/x2 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8/x2 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4/x2 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) * PCI_E2 & M2_3 share the bandwidth. PCI_E2 will run at x2 speed and M2_3 will run at x2 speed when installing devices in both slots.MSI resmî teknik özellikleri ↗13 Eki 2026

pcie Slot Conditions

2x PCI-E x16 slot (Qty) • Supports x16/x2 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8/x2 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4/x2 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) * PCI_E2 & M2_3 share the bandwidth. PCI_E2 will run at x2 speed and M2_3 will run at x2 speed when installing devices in both slots.MSI resmî teknik özellikleri ↗13 Eki 2026

storage Interfaces

3x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G (Qty) * The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor ** M2_3 & PCI_E2 share the bandwidth. M2_3 will run at x2 speed and PCI_E2 will run at x2 speed when installing devices in both slots.MSI resmî teknik özellikleri ↗13 Eki 2026

M.2 uyumluluğu ve hat paylaşımı

3x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G (Qty) * The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor ** M2_3 & PCI_E2 share the bandwidth. M2_3 will run at x2 speed and PCI_E2 will run at x2 speed when installing devices in both slots.MSI resmî teknik özellikleri ↗13 Eki 2026

raid Support

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices* Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices * SATA_A1 & SATA_A2 do not support RAID function.MSI resmî teknik özellikleri ↗13 Eki 2026

USB bağlantısı

2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)MSI resmî teknik özellikleri ↗13 Eki 2026

Ethernet

Realtek ® RTL8125B 2.5Gbps LANMSI resmî teknik özellikleri ↗13 Eki 2026

Ön panel / dahili bağlantılar

1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C portsMSI resmî teknik özellikleri ↗13 Eki 2026

Arka bağlantılar

DisplayPort 2.5G LAN USB 2.0 USB 5Gbps Type-A Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button HDMI™ USB 10Gbps Type-A USB 20Gbps Type-C Optical S/PDIF OUTMSI resmî teknik özellikleri ↗13 Eki 2026

Harici görüntü çıkışları

1x HDMI™ Support HDMI TM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4 port with HBR3, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.MSI resmî teknik özellikleri ↗13 Eki 2026

Ses çıkışı

Realtek ® ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panelMSI resmî teknik özellikleri ↗13 Eki 2026

motherboard Features

4x EZ Debug LEDMSI resmî teknik özellikleri ↗13 Eki 2026

RAM yuvası sayısı

4MSI resmî teknik özellikleri ↗13 Eki 2026

Desteklenen en yüksek bellek

256 GBMSI resmî teknik özellikleri ↗13 Eki 2026

Wi-Fi

Wi-Fi 6EMSI resmî teknik özellikleri ↗13 Eki 2026

Bluetooth sürümü

5.3MSI resmî teknik özellikleri ↗13 Eki 2026

wifi Module

AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth ® 5.3** * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.MSI resmî teknik özellikleri ↗13 Eki 2026

Üreticinin ayrıntılı teknik tablosu

• Chipset: AMD B650
• CPU: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
• Memory: 4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7600+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
• Onboard Graphics: 1x HDMI™ Support HDMI TM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4 port with HBR3, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Slot: 2x PCI-E x16 slot (Qty) • Supports x16/x2 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8/x2 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4/x2 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) * PCI_E2 & M2_3 share the bandwidth. PCI_E2 will run at x2 speed and M2_3 will run at x2 speed when installing devices in both slots.
• Audio: Realtek ® ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
• Storage: 3x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G (Qty) * The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor ** M2_3 & PCI_E2 share the bandwidth. M2_3 will run at x2 speed and PCI_E2 will run at x2 speed when installing devices in both slots.
• RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices* Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices * SATA_A1 & SATA_A2 do not support RAID function.
• USB: 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
• LAN: Realtek ® RTL8125B 2.5Gbps LAN
• Internal IO: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
• WIRELESS LAN & BLUETOOTH: AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth ® 5.3** * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.
• LED FEATURE: 4x EZ Debug LED
• BACK PANEL PORTS: DisplayPort 2.5G LAN USB 2.0 USB 5Gbps Type-A Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button HDMI™ USB 10Gbps Type-A USB 20Gbps Type-C Optical S/PDIF OUT
• OPERATING SYSTEM: Support for Windows ® 11 64-bit, Windows ® 10 64-bit
• PCB Info: ATX 243.84mmx304.8mm

MSI resmî teknik özellikleri ↗13 Eki 2026
