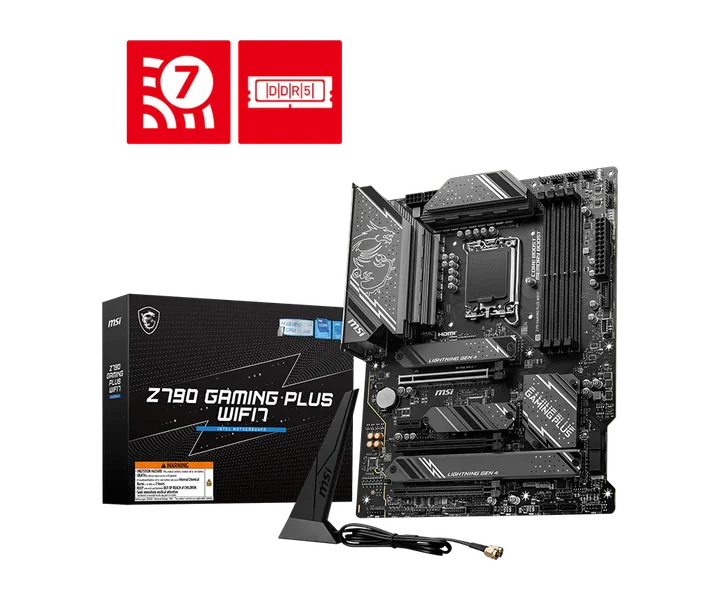

MSI Z790 GAMING PLUS WIFI7

Mağaza ve satıcı teklifleri

Tam üretici kodunu, boyut veya kapasite sürümünü ve paket içeriğini birlikte kontrol et. Bölgesel özellikler, aksesuarlar ve garanti koşulları satıcıya göre farklı olabilir. Son 48 saatte görülen stoktaki teklifler önce gösterilir.

0 teklif gösteriliyor. Kargosu bilinmeyen ürün fiyatı, kesin toplam maliyet değildir.

Diğer mağazalarda aynı modeli ara

Arama bağlantıları fiyat, stok veya satışta olma kanıtı değildir.

Tüm teknik özellikler

25 kaynaklı alan. Kaynakta açıklanmayan bilgiler için değer tahmin edilmez. Her alanın üretici belgesini ve kontrol tarihini inceleyebilirsin.

25 alan gösteriliyor

Üreticinin model / aile bilgisi

Z790 GAMING PLUS WIFI7MSI resmî teknik özellikleri ↗13 Eki 2026

İşlemci soketi

LGA 1700MSI resmî teknik özellikleri ↗13 Eki 2026

Anakart yonga seti

INTEL Z790MSI resmî teknik özellikleri ↗13 Eki 2026

Anakart boyut standardı

ATXMSI resmî teknik özellikleri ↗13 Eki 2026

RAM teknolojisi

DDR5MSI resmî teknik özellikleri ↗13 Eki 2026

Üreticinin işlemci destek bilgisi

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700MSI resmî teknik özellikleri ↗13 Eki 2026

Desteklenen bellek

4x DDR5, Maximum Memory Capacity 256GB Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel ® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memoryMSI resmî teknik özellikleri ↗13 Eki 2026

PCIe yuvaları ve hat sayıları

3x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)MSI resmî teknik özellikleri ↗13 Eki 2026

pcie Slot Conditions

3x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)MSI resmî teknik özellikleri ↗13 Eki 2026

storage Interfaces

4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G (Qty)MSI resmî teknik özellikleri ↗13 Eki 2026

M.2 uyumluluğu ve hat paylaşımı

4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G (Qty)MSI resmî teknik özellikleri ↗13 Eki 2026

raid Support

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devicesMSI resmî teknik özellikleri ↗13 Eki 2026

USB bağlantısı

4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)MSI resmî teknik özellikleri ↗13 Eki 2026

Ethernet

Intel ® 2.5Gbps LANMSI resmî teknik özellikleri ↗13 Eki 2026

Ön panel / dahili bağlantılar

1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C portsMSI resmî teknik özellikleri ↗13 Eki 2026

Arka bağlantılar

Keyboard / Mouse DisplayPort USB 2.0 2.5G LAN Port Wi-Fi / Bluetooth Antenna Audio Connectors Flash BIOS Button USB 2.0 HDMI™ 2.1 Port USB 5Gbps Type-A USB 20Gbps Type-C USB 10Gbps Type-AMSI resmî teknik özellikleri ↗13 Eki 2026

Harici görüntü çıkışları

1x HDMI™ Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.MSI resmî teknik özellikleri ↗13 Eki 2026

Ses çıkışı

Realtek ® ALC897 Codec 7.1-Channel High Definition AudioMSI resmî teknik özellikleri ↗13 Eki 2026

motherboard Features

4x EZ Debug LEDMSI resmî teknik özellikleri ↗13 Eki 2026

RAM yuvası sayısı

4MSI resmî teknik özellikleri ↗13 Eki 2026

Desteklenen en yüksek bellek

256 GBMSI resmî teknik özellikleri ↗13 Eki 2026

Wi-Fi

Wi-Fi 7MSI resmî teknik özellikleri ↗13 Eki 2026

Bluetooth sürümü

5.4MSI resmî teknik özellikleri ↗13 Eki 2026

wifi Module

Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth ® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.MSI resmî teknik özellikleri ↗13 Eki 2026

Üreticinin ayrıntılı teknik tablosu

• Chipset: INTEL Z790
• CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
• Memory: 4x DDR5, Maximum Memory Capacity 256GB Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel ® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
• Onboard Graphics: 1x HDMI™ Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Slot: 3x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
• Audio: Realtek ® ALC897 Codec 7.1-Channel High Definition Audio
• Storage: 4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G (Qty)
• RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
• USB: 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
• LAN: Intel ® 2.5Gbps LAN
• Internal IO: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
• WIRELESS LAN & BLUETOOTH: Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth ® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
• LED FEATURE: 4x EZ Debug LED
• BACK PANEL PORTS: Keyboard / Mouse DisplayPort USB 2.0 2.5G LAN Port Wi-Fi / Bluetooth Antenna Audio Connectors Flash BIOS Button USB 2.0 HDMI™ 2.1 Port USB 5Gbps Type-A USB 20Gbps Type-C USB 10Gbps Type-A
• OPERATING SYSTEM: Support for Windows ® 11 64-bit, Windows ® 10 64-bit
• PCB Info: ATX 243.84mmx304.8mm

MSI resmî teknik özellikleri ↗13 Eki 2026
