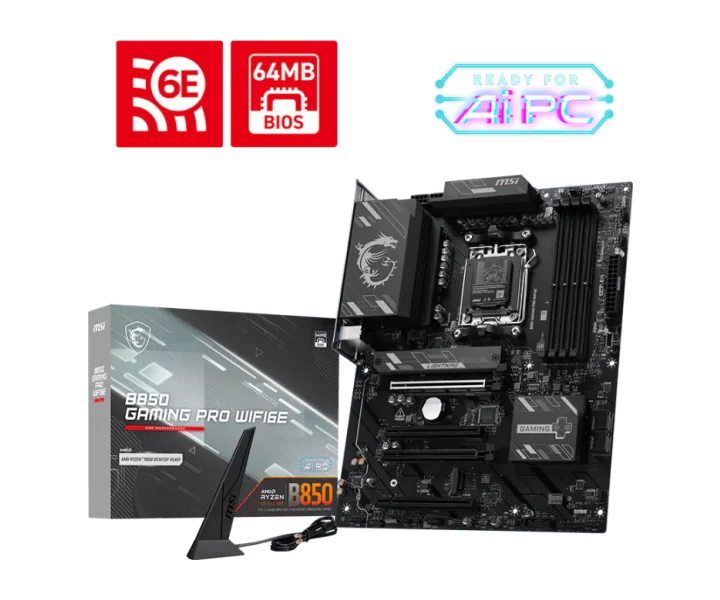

B850 GAMING PRO WIFI6E özellikleri ve fiyatları

B850 GAMING PRO WIFI6E teknik özellikleri

Model kodu

B850 GAMING PRO WIFI6E

İşlemci soketi

AM5

Anakart yonga seti

AMD B850

Anakart biçimi

ATX

RAM türü

DDR5

Uyumlu işlemciler

AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

256 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

Memory DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; AMD POR Speed and JEDEC Speed; Memory Overclocking and AMD EXPO; CUDIMM, Clock Driver bypass mode only*

Bellek hızı ve uyumluluk koşulları

Ryzen 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8200+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 6000+ MT/s; CUDIMM, Clock Driver bypass mode only*; CUDIMM and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.; Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

4x PCI-E x16 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E1 slot; Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors); Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors); Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)

PCIe şerit paylaşımı ve işlemci koşulları

PCI_E1 slot; Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors); Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors); Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)

PCIe sürümü

PCIe 4.0

Depolama için M.2 yuvası sayısı

2

SATA bağlantı sayısı

4

M.2 uyumluluğu ve şerit paylaşımı

2x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices; M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G; M2_1 slot; Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors); Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors); M2_2 slot; Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors); Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors); Please refer to the manual for M.2 SSD heatsink restrictions.

Desteklenen M.2 boyut kodları

22110 / 2280 / 2260

RAID desteği

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB bağlantısı

4x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 3x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear); 1x USB 10Gbps Type C (Front)

Kablolu ağ bağlantısı

Realtek 8125D 2.5G LAN

Kablolu ağ denetleyicisi

Realtek 8125D 2.5G LAN

Ses yongası

Realtek ALC897

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC897; 7.1-Channel High Definition Audio

Dahili bağlantılar ve ön panel başlıkları

1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 4x System Fan; 1x EZ Conn-header (JAF_1); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 1x OC dashboard connector(JDASH1); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports

Güç bağlantıları

1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR)

Fan ve pompa bağlantıları

1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 4x System Fan

Fan bağlantısı sayısı

6

RGB aydınlatma bağlantısı sayısı

4

Arka panel bağlantıları

Clear CMOS Button; DisplayPort 1.4; 2.5G LAN; USB 5Gbps (Type-A); Wi-Fi / Bluetooth; Audio Connectors; Flash BIOS Button; HDMI; USB 10Gbps (Type-A); USB 10Gbps (Type-C)

Görüntü çıkışları ve kullanım koşulları

1x HDMI; Support HDMI 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DisplayPort 1.4, maximum resolution of 4K 60Hz*; Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

BIOS özellikleri

Clear CMOS Button; Flash BIOS Button

Diğer anakart özellikleri

4x EZ Debug LED; 1x EZ Memory Detection LED

TPM güvenlik modülü bağlantısı

1x TPM pin header(Support TPM 2.0)

Wi-Fi

Wi-Fi 6E Solution; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.3, FIPS, FISMA; Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.; Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Wi-Fi standardı

Wi-Fi 6E

Bluetooth sürümü

5.3

Boyutlar

243.84mmx304.8mm
