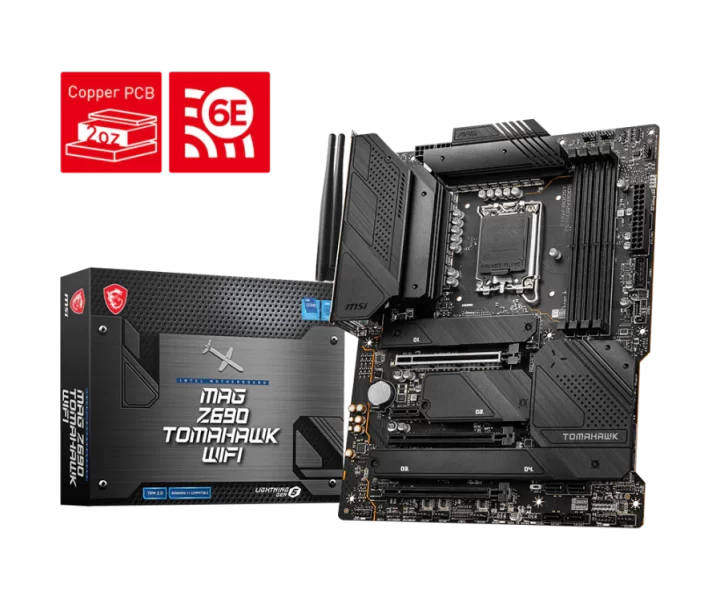

MAG Z690 TOMAHAWK WIFI özellikleri ve fiyatları

MAG Z690 TOMAHAWK WIFI teknik özellikleri

Model kodu

MAG Z690 TOMAHAWK WIFI

İşlemci soketi

LGA1700

Anakart yonga seti

Intel Z690

Anakart biçimi

ATX

RAM türü

DDR5

Uyumlu işlemciler

Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA1700;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

192 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

1R 5600 MHz (by JEDEC & POR); Intel XMP 3.0 OC

Bellek hızı ve uyumluluk koşulları

1DPC 1R Max speed up to 6400+ MHz; 1DPC 2R Max speed up to 6000+ MHz; 2DPC 1R Max speed up to 6000+ MHz; 2DPC 2R Max speed up to 5600+ MHz

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

3x PCIe x16 slots; PCI_E1 (From CPU); Support up to PCIe 5.0 x16; PCI_E3 (From Z690 chipset); Support up to PCIe 3.0 x4; PCI_E4 (From Z690 chipset); Support up to PCIe 3.0 x1; 1x PCIe 3.0 x1 slot (From Z690 chipset)

PCIe sürümü

PCIe 5.0

Depolama için M.2 yuvası sayısı

4

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

6x SATA 6Gb/s ports (From Z690 chipset); 4x M.2 slots (Key M); M2_1 slot (From CPU); Supports up to PCIe 4.0 x4; Supports 2242/ 2260/ 2280/ 22110 storage devices; M2_2 slot (From Z690 chipset); Supports up to PCIe 4.0 x4; Supports 2242/ 2260/ 2280 storage devices; M2_3 slot (From Z690 chipset); Supports up to PCIe 3.0 x4; Supports up to SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; M2_4 slot (From Z690 chipset); Supports up to PCIe 4.0 x4; Supports up to SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; Intel Optane Memory Ready for M.2 slots from Z690 Chipset; Supports Intel Smart Response Technology for Intel Core processors

Desteklenen M.2 boyut kodları

2242 / 2260 / 2280 / 22110

M.2 bağlantı anahtarı

M-Key

RAID desteği

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

USB bağlantısı

### Intel Z690 Chipset; 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel; 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3 Type-A ports on the back panel); 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal connector); 1x USB 2.0 Type-A port on the back panel; ### Hub-GL850G; 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)

Kablolu ağ bağlantısı

1x Intel I225V 2.5Gbps LAN controller

Kablolu ağ denetleyicisi

1x Intel I225V 2.5Gbps LAN controller

Ses yongası

Realtek ALC4080

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

### Realtek ALC4080 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors; 6x SATA 6Gb/s connectors; 4x M.2 slots (M-Key); 1x USB 3.2 Gen 2 10Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x TPM module connector; 1x Clear CMOS jumper; 1x TBT connector (supports RTD3); 1x Tuning Controller connector

Güç bağlantıları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors

Fan bağlantısı sayısı

8

RGB aydınlatma bağlantısı sayısı

4

Arka panel bağlantıları

DisplayPort 1.4; USB 2.0 Port; USB 3.2 Gen 2 10Gbps Type-A; 2.5G LAN Port; Wi-Fi / Bluetooth Antenna; HD Audio Connectors; HDMI 2.1 Port; Flash BIOS Button; USB 3.2 Gen 1 5Gbps Type-A; USB 3.2 Gen 2x2 20Gbps Type-C; Optical S/PDIF OUT

Görüntü çıkışları ve kullanım koşulları

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz /; 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz /; Available only on processors featuring integrated graphics.; Graphics specifications may vary depending on the CPU installed.

BIOS özellikleri

Flash BIOS Button

Diğer anakart özellikleri

1x EZ LED Control switch; 1x 4-pin RGB LED connectors; 3x 3-pin RAINBOW LED connectors; 4x EZ Debug LED

TPM güvenlik modülü bağlantısı

1x TPM module connector

Wi-Fi

### Intel Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz; (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.3 , FIPS, FISMA; Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.; Bluetooth 5.3 will be ready in Windows 10 version 21H1 and Windows 11.

Wi-Fi standardı

Wi-Fi 6E

Bluetooth sürümü

5.3

Boyutlar

12 in. x 9.6 in. (30.5 cm x 24.4 cm)
