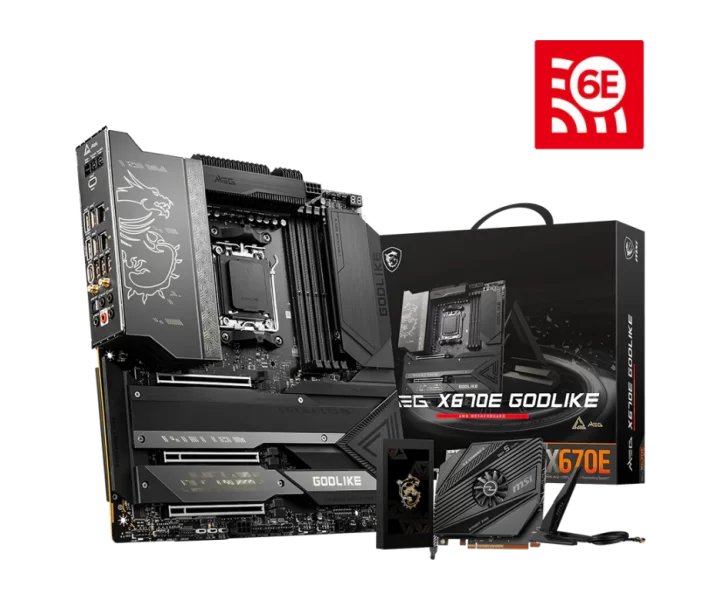

MEG X670E GODLIKE özellikleri ve fiyatları

MEG X670E GODLIKE teknik özellikleri

Model kodu

MEG X670E GODLIKE

İşlemci soketi

AM5

Anakart yonga seti

AMD X670

Anakart biçimi

E-ATX

RAM türü

DDR5

Uyumlu işlemciler

AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

256 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

Memory DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; AMD EXPO

Bellek hızı ve uyumluluk koşulları

1DPC 1R Max speed up to 8000+ MHz; 1DPC 2R Max speed up to 6400+ MHz; 2DPC 1R Max speed up to 6400+ MHz; 2DPC 2R Max speed up to 5400+ MHz

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

3x PCI-E x16 slot; Supports x16/x0/x4 or x8/x8/x4 (For Ryzen 9000/ 7000 Series processors); Supports x8/x0/x4 (For Ryzen 8700/ 8600/ 8400 Series processors); Supports x4/x0/x2 (For Ryzen 8500/ 8300 Series processors); PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU); PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU); This rear USB 3.2 Gen 2x2 20Gbps Type-C port and PCI_E3 slot share the same bandwidth. When installing a device in the PCI_E3 slot, the port would be unavailable by default. You can go to BIOS > Setting > Advanced > PCIe/PCI Subsystem Setting > PCI_E3/Rear USB-C 20 Switch to select the available device.

PCIe şerit paylaşımı ve işlemci koşulları

Supports x16/x0/x4 or x8/x8/x4 (For Ryzen 9000/ 7000 Series processors); Supports x8/x0/x4 (For Ryzen 8700/ 8600/ 8400 Series processors); Supports x4/x0/x2 (For Ryzen 8500/ 8300 Series processors); This rear USB 3.2 Gen 2x2 20Gbps Type-C port and PCI_E3 slot share the same bandwidth. When installing a device in the PCI_E3 slot, the port would be unavailable by default. You can go to BIOS > Setting > Advanced > PCIe/PCI Subsystem Setting > PCI_E3/Rear USB-C 20 Switch to select the available device.

PCIe sürümü

PCIe 5.0

Depolama için M.2 yuvası sayısı

4

SATA bağlantı sayısı

8

M.2 uyumluluğu ve şerit paylaşımı

4x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 8x SATA 6G

Desteklenen M.2 boyut kodları

2280 / 2260

RAID desteği

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices; SATA_A1_A2, SATA_B1_B2 and SATA_B3_B4 do not support RAID function.; RAID 5 configuration is only supported by Ryzen 9000 series processors.; RAID 10 for M.2 NVMe storage devices is only supported by Ryzen 9000/7000 series processors.

USB bağlantısı

4x USB 2.0 (Front); 4x USB 5Gbps Type A (Front); 7x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Front); 2x USB 20Gbps Type C (Rear); 1x USB 20Gbps Type C (Front)

Kablolu ağ bağlantısı

Marvell AQC113CS-B1-C 10Gbps LAN; Intel I225V 2.5Gbps LAN

Kablolu ağ denetleyicisi

Marvell AQC113CS-B1-C 10Gbps LAN; Intel I225V 2.5Gbps LAN

Ses yongası

Realtek ALC4082

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA; 7.1-Channel USB High Performance Audio; Supports S/PDIF output; Supports up to 32-Bit/384 kHz playback on front panel

Dahili bağlantılar ve ön panel başlıkları

1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 4pin or 6 pin); 1x Front Type-C Quick Charge Connector(PD_PWR1); 1x CPU Fan; 2x Pump Fan; 6x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Water Flow connector; 1x Front Audio (JAUD); 2x Thermal Sensor connectors(T_SEN); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); V-check point; 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports; 1x USB 20Gbps Type C ports

Güç bağlantıları

1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 4pin or 6 pin)

Fan ve pompa bağlantıları

1x CPU Fan; 2x Pump Fan; 6x System Fan

Fan bağlantısı sayısı

9

RGB aydınlatma bağlantısı sayısı

4

Arka panel bağlantıları

Clear CMOS Button; Flash BIOS Button; 2.5G LAN; 10G Super LAN; USB 3.2 Gen 2 10Gbps (Type-A); Wi-Fi / Bluetooth; HD Audio Connectors; Smart Button; USB 3.2 Gen 2x2 20Gbps (Type-C); Optical S/PDIF-Out

BIOS özellikleri

Clear CMOS Button; Flash BIOS Button; Smart Button

Diğer anakart özellikleri

1x EZ LED Control switch; 4x EZ Debug LED; 1x 2-Digit Debug Code LED

TPM güvenlik modülü bağlantısı

1x TPM pin header(Support TPM 2.0)

Wi-Fi

AMD Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX; Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.3**; Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.; Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Wi-Fi standardı

Wi-Fi 6E

Bluetooth sürümü

5.3

Boyutlar

288mmx304.8mm
