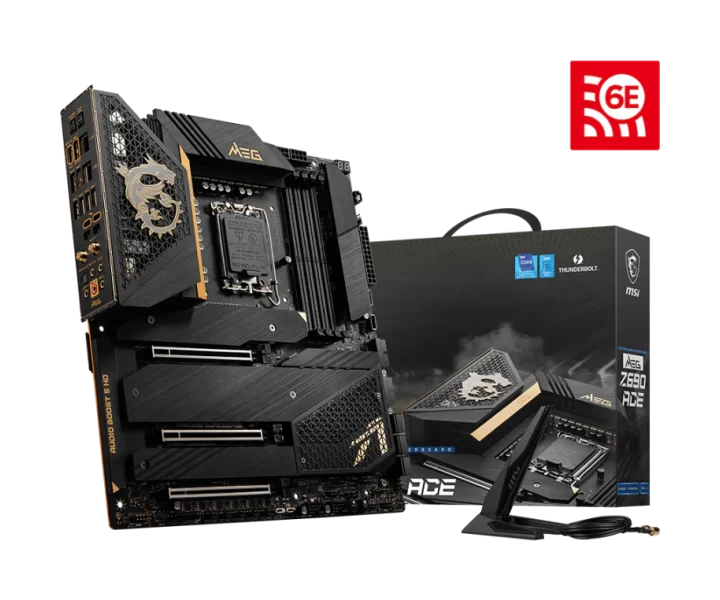

MEG Z690 ACE özellikleri ve fiyatları

MEG Z690 ACE teknik özellikleri

Model kodu

MEG Z690 ACE

İşlemci soketi

LGA1700

Anakart yonga seti

Intel Z690

Anakart biçimi

E-ATX

RAM türü

DDR5

Uyumlu işlemciler

Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA1700;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

192 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

1R 5600 MHz (by JEDEC & POR); Intel XMP 3.0 OC

Bellek hızı ve uyumluluk koşulları

1DPC 1R Max speed up to 6666+ MHz; 1DPC 2R Max speed up to 6000+ MHz; 2DPC 1R Max speed up to 6000+ MHz; 2DPC 2R Max speed up to 5600+ MHz

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

3x PCIe x16 slots; Supports x16/x0/x4, x8/x8/x4; PCI_E1 & PCI_E2 slots (From CPU); PCI_E1 supports up to PCIe 5.0 x16; PCI_E2 supports up to PCIe 5.0 x8; PCI_E3 (From Z690 chipset); ▫Supports up to PCIe 4.0 x4; PCI_E3 & M2_4 share the bandwidth. PCI_E3 will run at x1 speed and M2_4 will run at x2 speed when installing devices in both slots.

PCIe şerit paylaşımı ve işlemci koşulları

PCI_E3 & M2_4 share the bandwidth. PCI_E3 will run at x1 speed and M2_4 will run at x2 speed when installing devices in both slots.

PCIe sürümü

PCIe 5.0

Depolama için M.2 yuvası sayısı

5

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

6x SATA 6Gb/s ports (From Z690 chipset); SATA5~8 (From Z690 chipset); SATAA~B (From ASM1061); 5x M.2 slots (Key M); M2_1 slot (From CPU); Supports up to PCIe 4.0 x4; Supports 2260/ 2280/ 22110 storage devices; M2_2 & M2_3 slots (From Z690 chipset); M2_2 slot supports up to PCIe 4.0 x4; M2_3 slot supports up to PCIe 3.0 x4; Supports 2260/ 2280 storage devices; M2_4 & M2_5 slots (From Z690 chipset); Supports up to PCIe 4.0 x4; Supports up to SATA 6Gb/s; M2_4 slot supports 2280/ 22110 storage devices; M2_5 slot supports 2260/ 2280 storage devices; M2_2~5 slots support Intel Optane Memory; Supports Intel Smart Response Technology for Intel Core processors; SATA7 will be unavailable when installing M.2 SATA SSD in the M2_5 slot.

Desteklenen M.2 boyut kodları

2260 / 2280 / 22110

M.2 bağlantı anahtarı

M-Key

RAID desteği

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices; SATAA & SATAB do not support RAID function.

USB bağlantısı

Intel Z690 Chipset; 2x USB3.2 Gen2x2 20Gbps ports (2 Type-C internal connectors); 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C port on the back panel, 3 Type-A ports on the back panel); Hub-GL3590; 4x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel; ASM1074; 4x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connecto; Hub-GL850G; 4x USB 2.0 Type-A ports available through the internal connectors

Kablolu ağ bağlantısı

2x Intel I225V 2.5Gbps LAN controllers

Kablolu ağ denetleyicisi

2x Intel I225V 2.5Gbps LAN controllers

Ses yongası

Realtek ALC4082

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

### Realtek ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA; 7.1-Channel High Definition Audio; Supports S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors; 6x SATA 6Gb/s connectors; 5x M.2 slots (M-Key); 2x USB 3.2 Gen 2x2 20Gbps Type-C ports; 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x 3-pin Water Flow connector; 2x 2-pin Thermal sensor connectors; 1x TPM module connector; 1x Tuning Controller connector

Güç bağlantıları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors

Fan bağlantısı sayısı

8

RGB aydınlatma bağlantısı sayısı

3

Arka panel bağlantıları

Clear CMOS Button; 2.5G LAN; USB 3.2 Gen 2 10Gbps (Type-A); Thunderbolt 4 40Gbps (Type-C); Wi-Fi / Bluetooth; HD Audio Connectors; Flash BIOS Button; USB 3.2 Gen 2 10Gbps (Type-C Display port); Mini DisplayPort Input (for Thunderbolt passthrough); Optical S/PDIF-Out

Görüntü çıkışları ve kullanım koşulları

1x Type-C Display port, supporting a maximum resolution of 4K 60Hz; Available only on processors featuring integrated graphics.; Graphics specifications may vary depending on the CPU installed.

BIOS özellikleri

Clear CMOS Button; Flash BIOS Button

Diğer anakart özellikleri

1x EZ LED Control switch; 1x 4-pin RGB LED connector; 2x 3-pin RAINBOW LED connectors; 1x 3-pin CORSAIR LED connector; 4x EZ Debug LED; 1x 2-Digit Debug Code LED

TPM güvenlik modülü bağlantısı

1x TPM module connector

Wi-Fi

Intel Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.3 , FIPS, FISMA; Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.; Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Wi-Fi standardı

Wi-Fi 6E

Bluetooth sürümü

5.3

Boyutlar

12 in. x 9.6 in. (30.5 cm x 27.7 cm)
