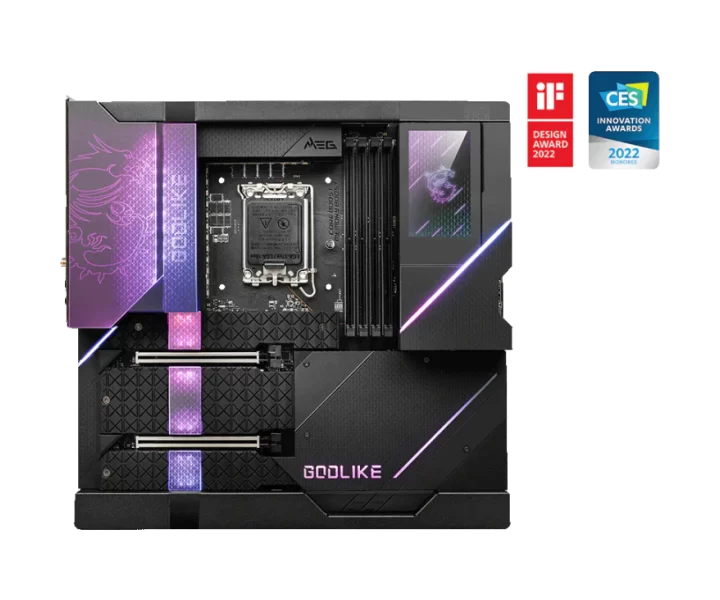

MEG Z690 GODLIKE özellikleri ve fiyatları

MEG Z690 GODLIKE teknik özellikleri

Model kodu

MEG Z690 GODLIKE

İşlemci soketi

LGA1700

Anakart yonga seti

Intel Z690

Anakart biçimi

E-ATX

RAM türü

DDR5

Uyumlu işlemciler

Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA1700;

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

192 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

1R 5600 MHz (by JEDEC & POR); Intel XMP 3.0 OC

Bellek hızı ve uyumluluk koşulları

1DPC 1R Max speed up to 6666+ MHz; 1DPC 2R Max speed up to 6000+ MHz; 2DPC 1R Max speed up to 6000+ MHz; 2DPC 2R Max speed up to 5600+ MHz

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

3x PCIe x16 slots; Supports x16/x0/x4, x8/x8/x4; PCI_E1 supports PCIe 5.0 x16 (From CPU); PCI_E2 supports PCIe 5.0 x8 (From CPU); PCI_E3 supports PCIe 4.0 x4 (From Z690 chipset); PCI_E1 will run at x8 speed when install M.2 PCIe SSD in the M2_3 slot; M2_3 will be unavailable when installing device in the PCI_E2 slot; PCI_E3 will be unavailable when installing M.2 SATA SSD in the M2_4 slot. PCI_E3 will run at x1 speed and M2_4 will run at x2 speed when installing PCIe device in PCI_E3 slot and M.2 PCIe SSD in M2_4 slot simultaneously

PCIe şerit paylaşımı ve işlemci koşulları

PCI_E1 will run at x8 speed when install M.2 PCIe SSD in the M2_3 slot; M2_3 will be unavailable when installing device in the PCI_E2 slot; PCI_E3 will be unavailable when installing M.2 SATA SSD in the M2_4 slot. PCI_E3 will run at x1 speed and M2_4 will run at x2 speed when installing PCIe device in PCI_E3 slot and M.2 PCIe SSD in M2_4 slot simultaneously

PCIe sürümü

PCIe 5.0

Depolama için M.2 yuvası sayısı

6

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

6x SATA 6Gb/s ports (From Z690 chipset); SATA5~8 (From Z690 chipset); SATAA~B (From ASM1061); 6x M.2 slots (Key M); M2_1 slot (From CPU); Supports up to PCIe 4.0 x4; Supports 2260/ 2280/ 22110 storage devices; M2_2 slot (From Z690 chipset); Supports up to PCIe 4.0 x4; Supports 2260/ 2280 storage devices; M2_3 slot (From CPU); Supports up to PCIe 5.0 x4; Supports 2260/ 2280/ 22110 storage devices; M2_4 slot (From Z690 chipset); Supports up to PCIe 4.0 x4; Supports SATA 6Gb/s; Supports 2260/ 2280 storage devices; M2_5 slot (From Z690 chipset); Supports up to PCIe 4.0 x4; Supports SATA 6Gb/s; Supports 2260/ 2280 storage devices; M2_6 slot (From Z690 chipset); Supports up to PCIe 3.0 x4; Supports 2260/ 2280/ 22110 storage devices; M2_2, M2_4, M2_5 and M2_6 slots support Intel Optane Memory; Supports Intel Smart Response Technology for Intel Core processors; SATA7 will be unavailable when installing M.2 SATA SSD in the M2_5 slot.; M2_3 will be unavailable when installing device in the PCI_E2 slot.; PCI_E3 will be unavailable when installing M.2 SATA SSD in the M2_4 slot. PCI_E3 will run at x1 speed and M2_4 will run at x2 speed when installing PCIe device in PCI_E3 slot and M.2 PCIe SSD in M2_4 slot simultaneously.

Desteklenen M.2 boyut kodları

2260 / 2280 / 22110

M.2 bağlantı anahtarı

M-Key

RAID desteği

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices; SATAA & SATAB do not support RAID function.

USB bağlantısı

Intel Z690 Chipset; 2x USB 3.2 Gen 2x2 20Gbps Type-C internal connectors; 4x USB 3.2 Gen 2 10Gbps ports on the back panel; Hub-GL3590; 4x USB 3.2 Gen 2 10Gbps ports on the back panel; ASM1074; 4x USB 3.2 Gen 1 5Gbps ports through internal USB connectors; Hub-GL850G; 4x USB 2.0 ports through internal USB connectors

Kablolu ağ bağlantısı

1x Aquantia AQC113CS 10Gbps LAN controller; 1x Intel I225-V 2.5Gbps LAN controller

Kablolu ağ denetleyicisi

1x Aquantia AQC113CS 10Gbps LAN controller; 1x Intel I225-V 2.5Gbps LAN controller

Ses yongası

Realtek ALC4082

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC4082 Codec + ES9218PQ Combo DAC/HPA; 7.1-Channel High Definition Audio; Supports S/PDIF output

Dahili bağlantılar ve ön panel başlıkları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors; 6x SATA 6Gb/s connectors; 6x M.2 slots (M-Key); 2x USB 3.2 Gen 2x2 20Gbps Type-C ports; 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 8x 4-pin system fan connectors; 1x Water Flow meter connector; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 2x 2-pin Thermal Sensors connectors; 1xTPM module connector; 1x Tuning Controller connector

Güç bağlantıları

1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors

Fan ve pompa bağlantıları

1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 8x 4-pin system fan connectors

Fan bağlantısı sayısı

10

RGB aydınlatma bağlantısı sayısı

3

Arka panel bağlantıları

Clear CMOS Button; 2.5G LAN; 10G Super LAN; Thunderbolt 4 40Gbps (Type-C); Wi-Fi / Bluetooth; HD Audio Connectors; Flash BIOS Button; USB 3.2 Gen2 10Gbps (Type-A); M-VISION Dashboard Port; Mini DisplayPort Input (for Thunderbolt passthrough); Optical S/PDIF-Out

BIOS özellikleri

Clear CMOS Button; Flash BIOS Button

Diğer anakart özellikleri

1x 2-Digit Debug Code LED; 4x EZ Debug LED; 1x 4-pin RGB LED connector; 2x 3-pin RAINBOW LED connectors; 1x 3-pin CORSAIR LED connector

TPM güvenlik modülü bağlantısı

1xTPM module connector

Wi-Fi

Intel Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.3 , FIPS, FISMA; Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.; Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Wi-Fi standardı

Wi-Fi 6E

Bluetooth sürümü

5.3

Boyutlar

12 in. x 12 in. (30.5 cm x 31.0 cm)
