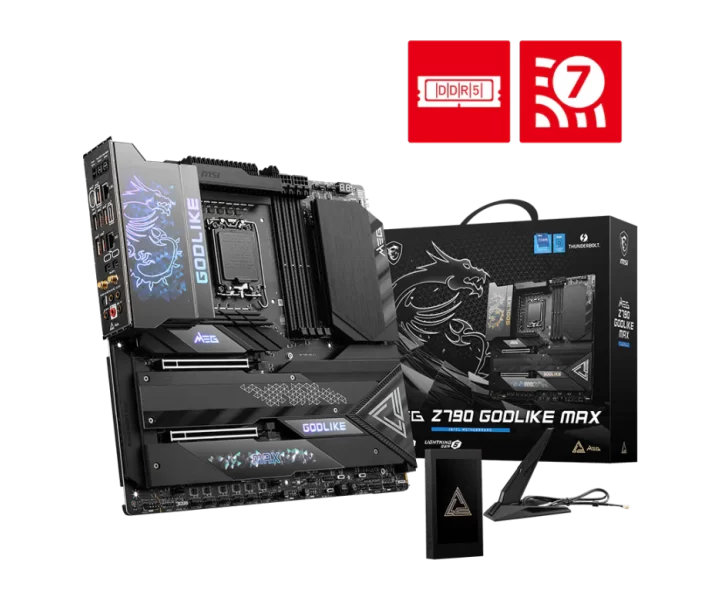

MEG Z790 GODLIKE MAX özellikleri ve fiyatları

MEG Z790 GODLIKE MAX teknik özellikleri

Model kodu

MEG Z790 GODLIKE MAX

İşlemci soketi

LGA1700

Anakart yonga seti

INTEL Z790

Anakart biçimi

E-ATX

RAM türü

DDR5

Uyumlu işlemciler

Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA 1700

RAM yuvası sayısı

4

Desteklenen en yüksek RAM

256 GB

Bellek kanalı sayısı

2 kanal

Desteklenen bellek yapılandırmaları

Memory 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Intel XMP3.0 OC

Bellek hızı ve uyumluluk koşulları

1DPC 1R Max speed up to 7800+ MHz; 1DPC 2R Max speed up to 6800+ MHz; 2DPC 1R Max speed up to 6400+ MHz; 2DPC 2R Max speed up to 6000+ MHz

Bellekte hata düzeltme (ECC)

Non-ECC

Bellek tamponlama türü

Unbuffered

PCIe yuvaları

2x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)

PCIe sürümü

PCIe 5.0

Depolama için M.2 yuvası sayısı

7

SATA bağlantı sayısı

6

M.2 uyumluluğu ve şerit paylaşımı

7x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices; M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices; M.2_5 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices; M.2_6 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_7 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 6x SATA 6G; PCI_E2 slot will be unavailable when installing M.2 SSD in the M2_4 slot.; SATA3~4 will be unavailable when installing M.2 PCIe/ SATA SSD in the M2_3 slot.; SATA5~8 will be unavailable when installing M.2 PCIe SSD in the M2_5 slot.; SATA7~8 will be unavailable when installing M.2 SATA SSD in the M2_5 slot.

Desteklenen M.2 boyut kodları

22110 / 2280 / 2260

RAID desteği

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

USB bağlantısı

4x USB 2.0 (Front); 4x USB 5Gbps Type A (Front); 7x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear); 2x USB 20Gbps Type C (Front); To achieve 60W PD fast charging for JUSB6, the PD_PWR1 connector needs to be connected to the power supply unit.; JUSB6 doesn’t support USB 2.0 and older USB devices.

Kablolu ağ bağlantısı

Marvell AQC113CS-B1-C 10Gbps LAN; Intel 2.5Gbps LAN

Kablolu ağ denetleyicisi

Marvell AQC113CS-B1-C 10Gbps LAN; Intel 2.5Gbps LAN

Ses yongası

Realtek ALC4082

Ses kanalı yapılandırması

7.1 kanal

Ses çıkışı

Realtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA; 7.1-Channel USB High Performance Audio; Supports S/PDIF output; Supports up to 32-Bit/384 kHz playback on front panel

Dahili bağlantılar ve ön panel başlıkları

1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Front Type-C Quick Charge Connector(PD_PWR1); 1x CPU Fan; 2x Pump Fan; 7x System Fan; 1x EZ Conn-header (JAF_1); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Water Flow connector; 1x Slow Mode Booting Jumper(JSLOW); 1x Front Audio (JAUD); 2x Thermal Sensor connectors(T_SEN); 1x Tuning Controller connector(JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); V-check point; 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 2x USB 20Gbps Type C ports

Güç bağlantıları

1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR)

Fan ve pompa bağlantıları

1x CPU Fan; 2x Pump Fan; 7x System Fan

Fan bağlantısı sayısı

10

RGB aydınlatma bağlantısı sayısı

4

Arka panel bağlantıları

Clear CMOS Button; Flash BIOS Button; 2.5G LAN; 10G Super LAN; Thunderbolt 4 40Gbps (Type-C); Wi-Fi / Bluetooth; Audio Connectors; Smart Button; USB 3.2 Gen 2 10Gbps (Type-C); USB 3.2 Gen 2 10Gbps (Type-A); Mini DisplayPort Input (for Thunderbolt passthrough); Optical S/PDIF-Out

BIOS özellikleri

Clear CMOS Button; Flash BIOS Button; Smart Button

Diğer anakart özellikleri

1x EZ LED Control switch; 4x EZ Debug LED; 1x 2-Digit Debug Code LED

TPM güvenlik modülü bağlantısı

1x TPM pin header(Support TPM 2.0)

Wi-Fi

Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; Supports Bluetooth 5.4**, MLO, 4KQAM; 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.; The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.

Wi-Fi standardı

Wi-Fi 7

Bluetooth sürümü

5.4

Boyutlar

310mmx304.8mm

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
