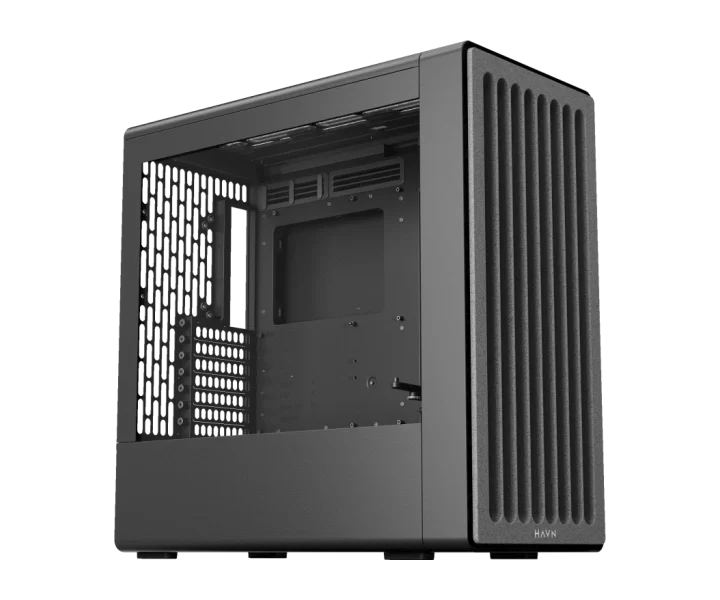

HAVN BF 360 Black HVN-CA-BF360-02 özellikleri ve fiyatları

HAVN BF 360 Black HVN-CA-BF360-02 teknik özellikleri

Model kodu

HVN-CA-BF360-02

part Number

HVN-CA-BF360-02

case Form Factor

Mid Tower

motherboard Support

E-ATX* / ATX / Micro-ATX / ITX; ; *To install an E-ATX motherboard, the built-in GPU support bracket must be removed.

Boyutlar

515 x 254 x 522.6 mm

panel Materials

SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets

Ağırlık

13630 g

color

Black

front Io

USB 3.2 Gen 2 Type-C x1; USB 3.2 Gen 1 Type-A x2; Audio Jack x1; Power & Reset Button x1

Garanti

1 year; ; Notice; Warranty support is only available for orders shipped within the United States. Orders via forwarding services are not supported.; Please review our full warranty terms for more information.

fan Mounts

Maximum Amount: 7; Top: 2 x 180 mm / 2 x 140 mm / 3 x 120 mm; ; Front: 2 x 180 mm / 3 x 140 mm / 3 x 120 mm; Left: N/A; Right: N/A; Bottom: N/A; Rear: 1 x 140 mm / 1 x 120 mm

fan Capacity

7

fan Controller

Fan Ports: 1 x PWM repeaters, 6 ports total; Location: 1 x Cable Management Tray; Fan Connectors: 6 ports per repeater x 4-pin PWM ; ; (Connect your primary fan to the white port to control PWM signal.; All other ports mirror the white port's signal.); Fan Rated Voltage: 12V; Fan Safety Current: Up to 2.6A across 6 ports; Power Connector: 1 x SATA Power; Power Safety Current: 1 x SATA connector power input, 12V → 2.6A (max)

radiator Support

Top: 240 / 280 / 360 mm; Front: 240 / 280 / 360 / 420 mm; Left: N/A; Right: N/A; Bottom: N/A; ; AIO Thickness Support: Up to 60mm

drive Bays

Right Mount: 2 Storage Bays: 2 x 3.5'' / 4 x 2.5''; Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5'' ; Storage Bays Included: 2 x (2 x 3.5" / 4 x 2.5")

psu Support

ATX; Length: Up to 200mm (Clearance - 260mm)

psu Form Factor

ATX

dust Filters

Front: 1 (Built-in); Top: 1 (Built-in); Rear Bottom: 1 (Removable)

psu Max Length Mm

200

gpu Max Length Mm

410

cpu Cooler Max Height Mm

195

clearance Conditions

CPU Tower Cooler Clearance: Height: Up to 195 mm.; Graphics Card Clearance: Length: Up to 410 mm; Width: Up to 195 mm.; RAM Clearance: If the radiator & fans thickness is greater than 80 mm: 280 mm - 40 mm / 360 mm - 60 mm; Motherboard Support: E-ATX* / ATX / Micro-ATX / ITX; ; *To install an E-ATX motherboard, the built-in GPU support bracket must be removed.

expansion Slots

7

Üreticinin ayrıntılı teknik bilgileri

Form Factor: Mid Tower, Material: SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets, PC Case Dimensions (L x W x H): 515 x 254 x 522.6 mm, Net Weight: 13.63 kg, Warranty: 1 year; ; Notice; Warranty support is only available for orders shipped within the United States. Orders via forwarding services are not supported.; Please review our full warranty terms for more information., Front I/O: USB 3.2 Gen 2 Type-C x1; USB 3.2 Gen 1 Type-A x2; Audio Jack x1; Power & Reset Button x1, Motherboard Support: E-ATX* / ATX / Micro-ATX / ITX; ; *To install an E-ATX motherboard, the built-in GPU support bracket must be removed., Expansion Slots: 7, Fan Support: Maximum Amount: 7; Top: 2 x 180 mm / 2 x 140 mm / 3 x 120 mm; ; Front: 2 x 180 mm / 3 x 140 mm / 3 x 120 mm; Left: N/A; Right: N/A; Bottom: N/A; Rear: 1 x 140 mm / 1 x 120 mm, Fan PWM Repeater: Fan Ports: 1 x PWM repeaters, 6 ports total; Location: 1 x Cable Management Tray; Fan Connectors: 6 ports per repeater x 4-pin PWM ; ; (Connect your primary fan to the white port to control PWM signal.; All other ports mirror the white port's signal.); Fan Rated Voltage: 12V; Fan Safety Current: Up to 2.6A across 6 ports; Power Connector: 1 x SATA Power; Power Safety Current: 1 x SATA connector power input, 12V → 2.6A (max), CPU Tower Cooler Clearance: Height: Up to 195 mm., Liquid Cooling Support: Top: 240 / 280 / 360 mm; Front: 240 / 280 / 360 / 420 mm; Left: N/A; Right: N/A; Bottom: N/A; ; AIO Thickness Support: Up to 60mm, Graphics Card Clearance: Length: Up to 410 mm; Width: Up to 195 mm., GPU Support: 1 - 4.5 Slots, RAM Clearance: If the radiator & fans thickness is greater than 80 mm: 280 mm - 40 mm / 360 mm - 60 mm, Power Supply Support: ATX; Length: Up to 200mm (Clearance - 260mm), Storage: Right Mount: 2 Storage Bays: 2 x 3.5'' / 4 x 2.5''; Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5'' ; Storage Bays Included: 2 x (2 x 3.5" / 4 x 2.5"), Dust Filter: Front: 1 (Built-in); Top: 1 (Built-in); Rear Bottom: 1 (Removable)
