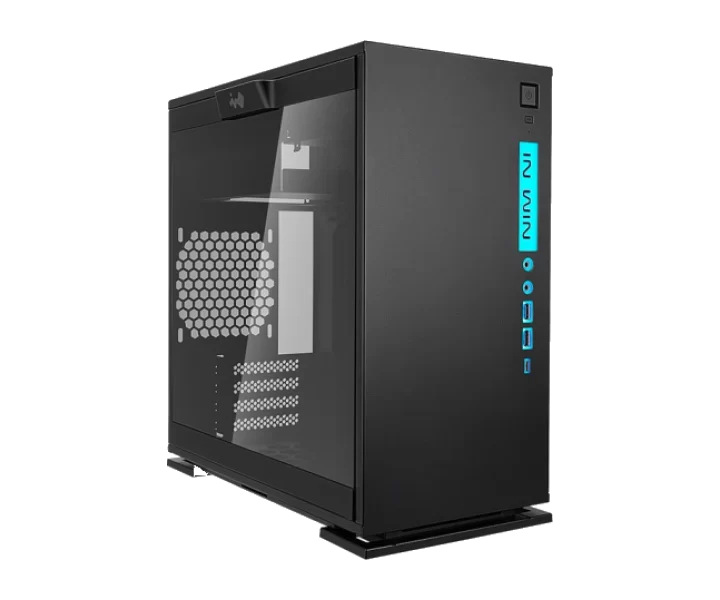

InWin 301C özellikleri ve fiyatları

InWin 301C teknik özellikleri

Model kodu

301C

case Form Factor

Mini Tower

motherboard Support

Micro-ATX, Mini-ITX

Boyutlar

365 x 188 x 379mm 14.3"x 7.4” x 14.9"

Boy

365 mm

En

188 mm

device Depth

379

panel Materials

Specifications / Case Material: Tempered Glass, SECC

front Io

Specifications / Front Ports: 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.0 HD Audio

drive Bays

Specifications / Internal Drive Bays: 1 x 3.5"/ 2.5" 2 x 2.5"

psu Support

Specifications / Power Supply Compatibility: PSII: ATX12V - Length up to 160mm

fan Mounts

Specifications / Thermal Solution Compatibility: 2 x 120mm Front Fan / 240mm Radiator 1 x 120mm Rear Fan / 120mm Radiator 2 x 120mm Bottom Fan (Occupy a PCI-E slot）

clearance Conditions

Specifications / Maximum Compatibility: VGA Card Length: 310mm (Height: 162mm) VGA Card Length (With Front Fan + Radiator 35mm): 265mm CPU Heatsink Height: 158 mm

cpu Cooler Max Height Mm

158

Ağırlık

6500 g

Üreticinin ayrıntılı teknik bilgileri

Specifications / Model: 301C; Specifications / Color: Black, White; Specifications / Case Type: Mini Tower; Specifications / Case Material: Tempered Glass, SECC; Specifications / M/B Compatibility: Micro-ATX, Mini-ITX; Specifications / Expansion Slots: PCI-E x 4; Specifications / Maximum Compatibility: VGA Card Length: 310mm (Height: 162mm) VGA Card Length (With Front Fan + Radiator 35mm): 265mm CPU Heatsink Height: 158 mm; Specifications / Front Ports: 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.0 HD Audio; Specifications / Internal Drive Bays: 1 x 3.5"/ 2.5" 2 x 2.5"; Specifications / Thermal Solution Compatibility: 2 x 120mm Front Fan / 240mm Radiator 1 x 120mm Rear Fan / 120mm Radiator 2 x 120mm Bottom Fan (Occupy a PCI-E slot）; Specifications / Power Supply Compatibility: PSII: ATX12V - Length up to 160mm; Specifications / Product Dimension (H x W x D): 365 x 188 x 379mm 14.3"x 7.4” x 14.9"; Specifications / Product Dimension (H x W x D) with screw & handle height: 381 x 209 x 390mm 15" x 8.2" x 15.4"; Specifications / Package Dimension (H x W x D): 450 x 272 x 458mm 17.7"x 10.7"x 18"; Specifications / Net Weight: 6.50KG / 14.3lb; Specifications / Gross Weight: 7.59KG / 16.7lb
