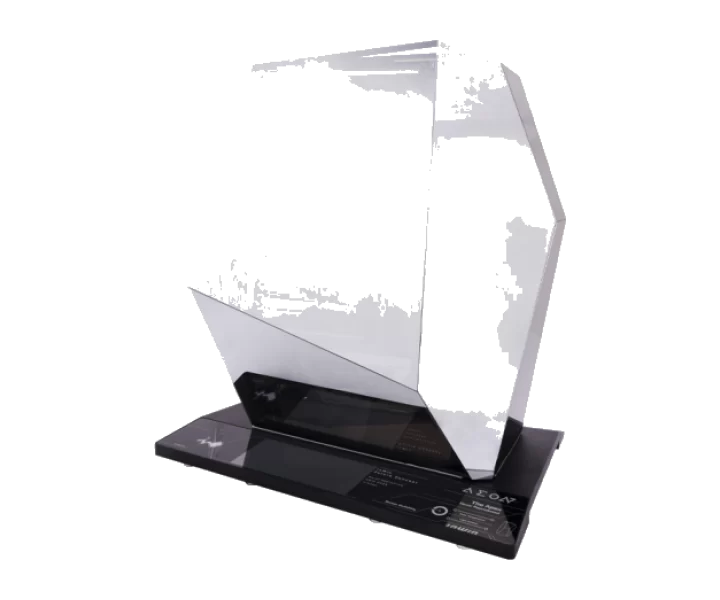

InWin AEON özellikleri ve fiyatları

InWin AEON teknik özellikleri

Model kodu

AEON

case Form Factor

Full Tower

motherboard Support

12" x 13" (305 x 330 mm) E-ATX, ATX, Micro-ATX, Mini-ITX

Boyutlar

839 x 691 x 912 mm 33.0 × 27.2 × 35.9"

device Depth

839

En

691 mm

Boy

912 mm

panel Materials

Specifications / Materials: Aluminium, Tempered Glass, Stainless Steel, SGCC

front Io

Specifications / I/O Ports: Power Button Reset Button 2 x USB 3.2 Gen 1 1 x USB 3.2 Gen 2x2 Type-C (60W PD) 1 x USB 3.2 Gen 2x2 Type-C HD Audio (CTIA - SPK/MIC)

drive Bays

Specifications / Internal Drive Bays: 4 x 2.5"

psu Support

Specifications / Power Supply Compatibility: 2 x PSII : ATX12V - Length up to 270 mm

fan Mounts

Top: 3 x 120/140 mm Bottom: 3 x 120/140 mm

clearance Conditions

Specifications / Maximum Compatibility: GPU Length: 360 mm CPU Heatsink Height: 140 mm

radiator Support

Top: 1 x 360/420 mm (Thickness max. up to 30 mm) Bottom: 1 x 360/420 mm (Thickness max. up to 40 mm)

cpu Cooler Max Height Mm

140

gpu Max Length Mm

360

Ağırlık

71500 g

part Number

IW-CS-AEON

case Features

Specifications / Model Number: IW-CS-AEON

Üreticinin ayrıntılı teknik bilgileri

Specifications / Model: AEON; Specifications / Model Number: IW-CS-AEON; Specifications / Color: Silver; Specifications / Case Type: Full Tower; Specifications / Materials: Aluminium, Tempered Glass, Stainless Steel, SGCC; Specifications / M/B Compatibility: 12" x 13" (305 x 330 mm) E-ATX, ATX, Micro-ATX, Mini-ITX; Specifications / Expansion Slots: 8 x PCIe; Specifications / Maximum Compatibility: GPU Length: 360 mm CPU Heatsink Height: 140 mm; Specifications / I/O Ports: Power Button Reset Button 2 x USB 3.2 Gen 1 1 x USB 3.2 Gen 2x2 Type-C (60W PD) 1 x USB 3.2 Gen 2x2 Type-C HD Audio (CTIA - SPK/MIC); Specifications / Internal Drive Bays: 4 x 2.5"; Specifications / Thermal Solution Compatibility: Air Cooling Fans: Top: 3 x 120/140 mm Bottom: 3 x 120/140 mm Water Cooling Radiator: Top: 1 x 360/420 mm (Thickness max. up to 30 mm) Bottom: 1 x 360/420 mm (Thickness max. up to 40 mm); Specifications / Power Supply Compatibility: 2 x PSII : ATX12V - Length up to 270 mm; Specifications / Product Dimensions (L x W x H): 839 x 691 x 912 mm 33.0 × 27.2 × 35.9"; Specifications / Package Dimensions in Expand Mode (L x W x H): 1310 x 691 x 912 mm 51.6 × 27.2 × 35.9"; Specifications / Package Dimensions (L x W x H): 971 x 851 x 1094 mm 38.2 × 33.5 × 43.1"; Specifications / Net Weight: 71.5 kg / 157.6 lbs; Specifications / Gross Weight: 123 kg / 271.2 lbs

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
