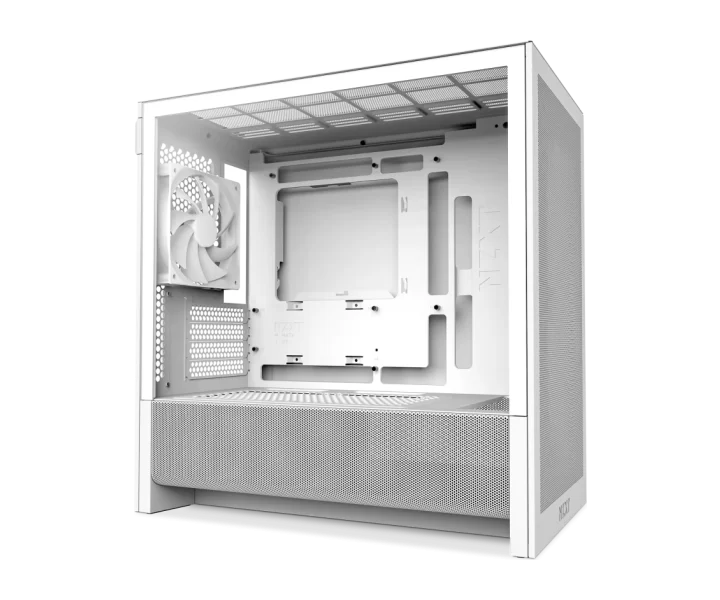

NZXT H3 Flow özellikleri ve fiyatları

NZXT H3 Flow teknik özellikleri

Model kodu

H3 Flow

part Number

CC-H31FW-01

motherboard Support

Micro-ATX, Mini-ITX

case Form Factor

Micro-ATX Airflow Case

case Volume

35

Boyutlar

400 x 225 x 389 mm (15.7 x 8.9 x 15.3 in)

cpu Cooler Max Height Mm

170

gpu Max Length Mm

377

psu Max Length Mm

185

clearance Conditions

CPU Cooler Height: 170 mm (6.7 in), GPU Length: Up to 377 mm (without front fans) Up to 352 mm (with front fans) Up to 317 mm (with front radiator and fans), PSU Length: Up to 185 mm (7.3 in), Cable Routing Space: Up to 31.5 mm (1.2 in), Front Radiator + Fan Thickness: Up to 63 mm (2.5 in), Top Radiator + Fan Thickness: Up to 70 mm (2.8 in)

front Io

USB 3.2 Type-A: 1, USB 3.2 Gen 2x2 Type-C: 1

usb A

1

usb C

1

expansion Slots

4

drive Bays

2.5" Drive Bays: 1+2, 3.5" Drive Bays: 1

fan Mounts

Front Fans: 2 x 120 mm / 2 x 140 mm, Top Fans: 2 x 120 mm / 2 x 140 mm, Bottom Fans: 2 x 120 mm, Rear Fan: 1 x 120 mm (1 included)

included Fans

Model: F120Q (Case Version), Quantity: 1, Speed: 1,350 ± 150 RPM, Airflow: 60.2 CFM, Static Pressure: 1.05 mmH₂O, Noise Level: 24.1 dBA, Fan Connector: 3-pin

radiator Support

Front Radiator: Up to 280 mm, Top Radiator: Up to 240 mm

Garanti süresi

2 yıl

Garanti

2 years

color

White

Üreticinin ayrıntılı teknik bilgileri

General / Enclosure Type: Micro-ATX case, General / Motherboard Support: Micro-ATX, Mini-ITX, General / Back-Connect Motherboard Support: Yes (Micro-ATX), General / Power Supply Type: ATX, General / Materials: SGCC steel, clear tempered glass (white), tinted tempered glass (black), Dimensions / Dimensions (H x W x D): 400 x 225 x 389 mm (15.7 x 8.9 x 15.3 in), Dimensions / Volume: 35.0 L, Dimensions / Weight: 5.017 kg (11.1 lb), Clearance / CPU Cooler Height: 170 mm (6.7 in), Clearance / GPU Length: Up to 377 mm (without front fans) Up to 352 mm (with front fans) Up to 317 mm (with front radiator and fans), Clearance / PSU Length: Up to 185 mm (7.3 in), Clearance / Cable Routing Space: Up to 31.5 mm (1.2 in), Clearance / Front Radiator + Fan Thickness: Up to 63 mm (2.5 in), Clearance / Top Radiator + Fan Thickness: Up to 70 mm (2.8 in), Front I/O / USB 3.2 Type-A: 1, Front I/O / USB 3.2 Gen 2x2 Type-C: 1, Expansion & Drives / Expansion Slots: 4, Expansion & Drives / 2.5" Drive Bays: 1+2, Expansion & Drives / 3.5" Drive Bays: 1, Cooling Support / Front Fans: 2 x 120 mm / 2 x 140 mm, Cooling Support / Top Fans: 2 x 120 mm / 2 x 140 mm, Cooling Support / Bottom Fans: 2 x 120 mm, Cooling Support / Rear Fan: 1 x 120 mm (1 included), Cooling Support / Front Radiator: Up to 280 mm, Cooling Support / Top Radiator: Up to 240 mm, Included Fan Specs / Model: F120Q (Case Version), Included Fan Specs / Quantity: 1, Included Fan Specs / Speed: 1,350 ± 150 RPM, Included Fan Specs / Airflow: 60.2 CFM, Included Fan Specs / Static Pressure: 1.05 mmH₂O, Included Fan Specs / Noise Level: 24.1 dBA, Included Fan Specs / Fan Connector: 3-pin, Product Info / Warranty: 2 years, Product Info / Model Number: CC-H31FW-01 (White) / CC-H31FB-01 (Black) / CC-H31FW-02 (White AU) / CC-H31FB-02 (Black AU), Product Info / UPC: 810074848039 (White) / 810074848046 (Black) / 810074843508 (White AU) / 810074843515 (Black AU), Product Info / EAN: 5056547207971 (White) / 5056547207988 (Black) / 5056547203393 (White AU) / 5056547203409 (Black AU), Key Specs / Dimensions (H x W x D): 400 x 225 x 389 mm (15.7 x 8.9 x 15.3 in), Key Specs / Volume: 35.0 L, Key Specs / Motherboard Support: Micro-ATX, Mini-ITX, Key Specs / GPU Clearance: Up to 377 mm (352 mm with front fans, 317 mm with front radiator and fans), Key Specs / CPU Cooler Clearance: Up to 170 mm (6.7 in), Key Specs / Front I/O: 1x USB 3.2 Type-A, 1x USB 3.2 Gen 2x2 Type-C
