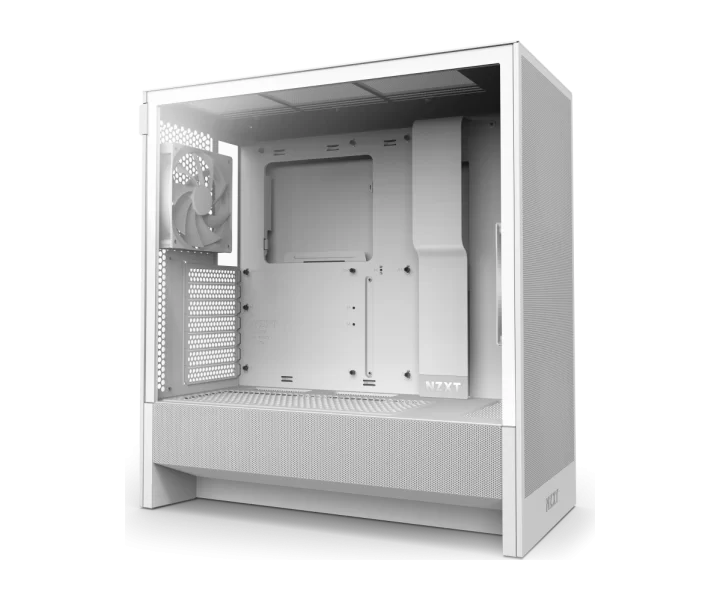

NZXT H5 Flow özellikleri ve fiyatları

NZXT H5 Flow teknik özellikleri

Model kodu

H5 Flow

part Number

CC-H52FW-01

motherboard Support

E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX

case Form Factor

Compact Mid-Tower ATX Airflow Case

case Volume

45

Boyutlar

465 x 225 x 430 mm (18.3 x 8.9 x 16.9 in)

cpu Cooler Max Height Mm

170

gpu Max Length Mm

410

psu Max Length Mm

200

clearance Conditions

CPU Cooler Height: Up to 170 mm (6.7 in), GPU Length: Up to 410 mm (16.1 in), PSU Length: Up to 200 mm (7.9 in), Cable Routing Space: Up to 28.7 mm (1.1 in), Top Radiator + Fan Thickness: Up to 55 mm (2.2 in)

front Io

USB 3.2 Type-A: 1, USB 3.2 Gen 2x2 Type-C (20 Gbps): 1, Headset Jack: 1

usb A

1

expansion Slots

7

drive Bays

2.5" Drive Bays: 2, 3.5" Drive Bays: 1

fan Mounts

Front Fans: 3 x 120 mm / 2 x 140 mm (1 included), Top Fans: 2 x 120 mm / 2 x 140 mm, Bottom Fans: 2 x 120 mm, Rear Fan: 1 x 120 mm (1 included)

included Fans

Model: F120Q (Case Version), Quantity: 2, Speed: 1,350 ± 150 RPM, Airflow: 60.2 CFM, Static Pressure: 1.05 mmH₂O, Noise Level: 24.1 dBA, Fan Connector: 3-pin DC

radiator Support

Front Radiator: Up to 360 mm, Top Radiator: Up to 240 mm (280 mm with low-profile memory only)

Garanti süresi

2 yıl

Garanti

2 years

color

White

Üreticinin ayrıntılı teknik bilgileri

General / Enclosure Type: Mid-tower, General / Motherboard Support: E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX, General / Back-Connect Motherboard Support: No, General / Power Supply Type: ATX, General / Materials: SGCC steel, ultra-clear tempered glass (white), dark tinted tempered glass (black), General / Filters: High-performance mesh, Dimensions / Dimensions (H x W x D): 465 x 225 x 430 mm (18.3 x 8.9 x 16.9 in), Dimensions / Volume: 45.0 L, Dimensions / Weight: 7.28 kg (16.0 lb), Clearance / CPU Cooler Height: Up to 170 mm (6.7 in), Clearance / GPU Length: Up to 410 mm (16.1 in), Clearance / PSU Length: Up to 200 mm (7.9 in), Clearance / Cable Routing Space: Up to 28.7 mm (1.1 in), Clearance / Top Radiator + Fan Thickness: Up to 55 mm (2.2 in), Front I/O / USB 3.2 Type-A: 1, Front I/O / USB 3.2 Gen 2x2 Type-C (20 Gbps): 1, Front I/O / Headset Jack: 1, Expansion & Drives / Expansion Slots: 7, Expansion & Drives / 2.5" Drive Bays: 2, Expansion & Drives / 3.5" Drive Bays: 1, Cooling Support / Front Fans: 3 x 120 mm / 2 x 140 mm (1 included), Cooling Support / Top Fans: 2 x 120 mm / 2 x 140 mm, Cooling Support / Bottom Fans: 2 x 120 mm, Cooling Support / Rear Fan: 1 x 120 mm (1 included), Cooling Support / Front Radiator: Up to 360 mm, Cooling Support / Top Radiator: Up to 240 mm (280 mm with low-profile memory only), Included Fan Specs / Model: F120Q (Case Version), Included Fan Specs / Quantity: 2, Included Fan Specs / Speed: 1,350 ± 150 RPM, Included Fan Specs / Airflow: 60.2 CFM, Included Fan Specs / Static Pressure: 1.05 mmH₂O, Included Fan Specs / Noise Level: 24.1 dBA, Included Fan Specs / Fan Connector: 3-pin DC, Product Info / Warranty: 2 years, Product Info / Model Number: CC-H52FW-01 (White) / CC-H52FB-01 (Black), Product Info / UPC: 810074845908 (White) / 810074845915 (Black), Product Info / EAN: 5056547205847 (White) / 5056547205854 (Black), Key Specs / Dimensions (H x W x D): 465 x 225 x 430 mm (18.3 x 8.9 x 16.9 in), Key Specs / Volume: 45.0 L, Key Specs / Motherboard Support: E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX, Key Specs / GPU Clearance: Up to 410 mm (16.1 in), Key Specs / CPU Cooler Clearance: Up to 170 mm (6.7 in), Key Specs / Front I/O: 1x USB 3.2 Type-A, 1x USB 3.2 Type-C, 1x headset jack

Güncel mağaza teklifleri

Inventus · Satıcı: Inventus · 6.218,23 TL · Kargo: 0,00 TL · Son gözlem: 2026-10-29 14:09:49 UTC
