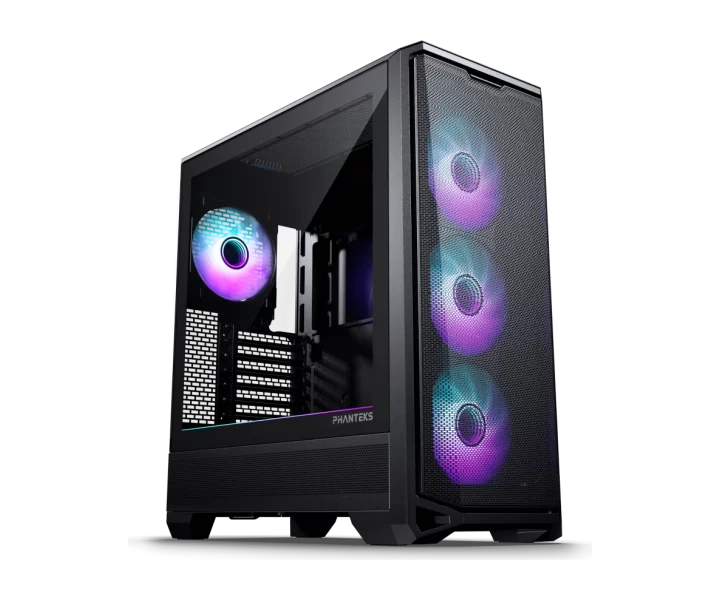

Phanteks Eclipse G400A özellikleri ve fiyatları

Phanteks Eclipse G400A teknik özellikleri

Model kodu

PH-EC400GA_DBK01

part Number

PH-EC400GA_DBK01

case Form Factor

Mid-tower

motherboard Support

General / Mainboard Support: *E-ATX | ATX | Micro-ATX | Mini-ITX *Up to 280 mm wide | General / Rear ATX Mainboard Support: MSI Project Zero | ASUS BTF | Gigabyte Project Stealth

Boyutlar

495 x 230 x 522 mm | 19.5 x 9.05 x 20.55 in

panel Materials

Steel chassis | Tempered glass

front Io

1x USB 3.0 1x USB-C 3.0 Gen2 Microphone | Headphone Combo Reset button Power button + LED

Garanti

5 Years limited Learn more

vertical Gpu Support

3-slots Riser Cable sold separately

expansion Slots

7

drive Bays

General / Internal 2.5″ Bay: 2 + 1x 3.5″ HDD | General / Internal 3.5″ Bay: 2 + 0x 2.5″ SSD

fan Mounts

Fans 120 | 140 / Total Fans: 7x | 6x | Fans 120 | 140 / Top: 3x | 2x | Fans 120 | 140 / Front: – | 3x 3x 140 Pre-Installed | Fans 120 | 140 / Side: – | – | Fans 120 | 140 / Rear: 1x | 1x 1x 140 Pre-Installed | Fans 120 | 140 / Bottom: 3x | –

radiator Support

Radiators 120 | 140 / Top: Max. 360 | 280 | Radiators 120 | 140 / Front: – | – | Radiators 120 | 140 / Rear: 120 | – | Radiators 120 | 140 / Bottom: – | –

clearance Conditions

Clearance / CPU Cooler Height: 184 mm | 7.24 in | Clearance / GPU Length: 415 mm | 16.33 in | Clearance / GPU Width: 184 mm | 7.24 in | Clearance / Power Supply Length: 270 mm | 10.60 in | Clearance / Top Radiator Length x Width x Height: 360 Radiator 415 x 138 x 60 mm | 16.33 x 5.43 x 2.36 in 280 Radiator 360 x 147 x 65 mm | 14.17 x 5.78 x 2.55 in | Clearance / Rear Radiator Length x Width: 170 x 132 mm | 6.69 x 5.19 in

gpu Max Length Mm

415

cpu Cooler Max Height Mm

184

psu Max Length Mm

270

Ağırlık

8630 g

Kutu içeriği

Extra / Scope of Delivery: 1x Eclipse G400A chassis 4x M25G2-140 fans (Pre-installed) 1x D-RGB mainboard adapter, Extra / Accessory Box: 30x Zip ties 4x Screw cover corner L 4x Screw cover corner R 4x Screw cover bridge, Extra / Screws: 18x Mainboard | SSD screws 4x Power supply screws 8x HDD screws 12x 30 mm fan screws 1x Mainboard stand-off 1x Stand-off removal tool 1x Extra R-side panel screw

included Fans

1x Eclipse G400A chassis 4x M25G2-140 fans (Pre-installed) 1x D-RGB mainboard adapter

case Features

General / Rear ATX Mainboard Support: MSI Project Zero | ASUS BTF | Gigabyte Project Stealth, General / Side Window: Yes, General / Vertical GPU Support: 3-slots Riser Cable sold separately

Üreticinin ayrıntılı teknik bilgileri

General / Model No.: PH-EC400GA_DBK01; General / UPC Code: 886523303558; General / Case Dimensions: 495 x 230 x 522 mm | 19.5 x 9.05 x 20.55 in; General / Form Factor: Mid-tower; General / Mainboard Support: *E-ATX | ATX | Micro-ATX | Mini-ITX *Up to 280 mm wide; General / Rear ATX Mainboard Support: MSI Project Zero | ASUS BTF | Gigabyte Project Stealth; General / Materials: Steel chassis | Tempered glass; General / Side Window: Yes; General / PCI Slots: 7; General / Vertical GPU Support: 3-slots Riser Cable sold separately; General / Internal 2.5″ Bay: 2 + 1x 3.5″ HDD; General / Internal 3.5″ Bay: 2 + 0x 2.5″ SSD; General / Front I/O: 1x USB 3.0 1x USB-C 3.0 Gen2 Microphone | Headphone Combo Reset button Power button + LED; Fans 120 | 140 / Total Fans: 7x | 6x; Fans 120 | 140 / Top: 3x | 2x; Fans 120 | 140 / Front: – | 3x 3x 140 Pre-Installed; Fans 120 | 140 / Side: – | –; Fans 120 | 140 / Rear: 1x | 1x 1x 140 Pre-Installed; Fans 120 | 140 / Bottom: 3x | –; Radiators 120 | 140 / Top: Max. 360 | 280; Radiators 120 | 140 / Front: – | –; Radiators 120 | 140 / Rear: 120 | –; Radiators 120 | 140 / Bottom: – | –; Clearance / CPU Cooler Height: 184 mm | 7.24 in; Clearance / GPU Length: 415 mm | 16.33 in; Clearance / GPU Width: 184 mm | 7.24 in; Clearance / Power Supply Length: 270 mm | 10.60 in, Clearance / Top Radiator Length x Width x Height: 360 Radiator 415 x 138 x 60 mm | 16.33 x 5.43 x 2.36 in 280 Radiator 360 x 147 x 65 mm | 14.17 x 5.78 x 2.55 in; Clearance / Rear Radiator Length x Width: 170 x 132 mm | 6.69 x 5.19 in; Extra / Net Weight: 8.63 kg | 19.02 lbs; Extra / Gross Weight: 10.50 kg | 23.14 lbs; Extra / Warranty: 5 Years limited Learn more; Extra / Scope of Delivery: 1x Eclipse G400A chassis 4x M25G2-140 fans (Pre-installed) 1x D-RGB mainboard adapter; Extra / Accessory Box: 30x Zip ties 4x Screw cover corner L 4x Screw cover corner R 4x Screw cover bridge; Extra / Screws: 18x Mainboard | SSD screws 4x Power supply screws 8x HDD screws 12x 30 mm fan screws 1x Mainboard stand-off 1x Stand-off removal tool 1x Extra R-side panel screw
