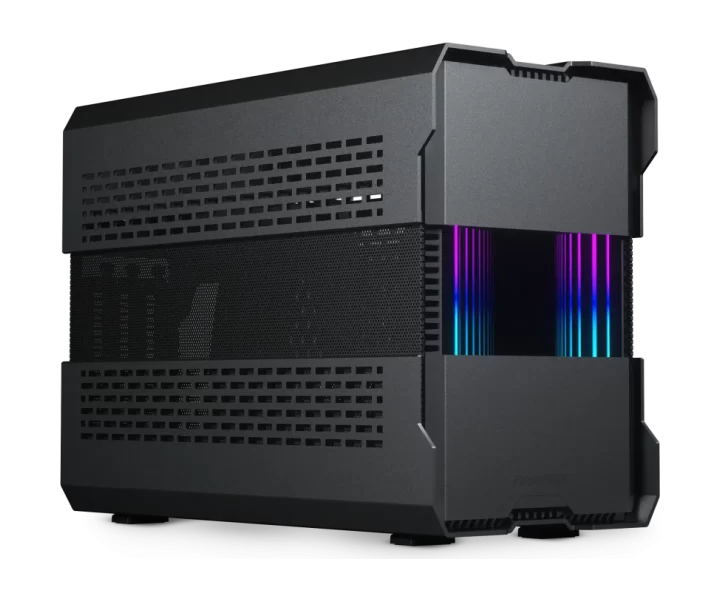

Phanteks Evolv Shift XT özellikleri ve fiyatları

Phanteks Evolv Shift XT teknik özellikleri

Model kodu

PH-ES121XT_DBK01

part Number

PH-ES121XT_DBK01

case Form Factor

Small Form Factor (SFF)

motherboard Support

General / Mainboard Support: Mini-ITX

Boyutlar

Small: 371 x 173 x 211 mm | 14.60 x 6.81 x 8.31 in Medium: 371 x 173 x 244 mm | 14.60 x 6.81 x 9.61 in Large: 371 x 173 x 272 mm | 14.60 x 6.81 x 10.71 in

panel Materials

Aluminum panels | Steel chassis | Tempered glass Infinity Mirror

front Io

1x USB-C GEN 2 1x USB 3.0 D-RGB Mode Button D-RGB Color Button Power Button

Garanti

5 Years limited Learn more

vertical Gpu Support

3-slots pre-installed Riser Cable PCI-e 4.0 X16

expansion Slots

3

drive Bays

General / Internal 2.5″ Bay: 1 | General / Internal 3.5″ Bay: –

fan Mounts

Fans 120 | 140 / Total Fans: 2x | 2x | Fans 120 | 140 / Top: 2x | 2x | Fans 120 | 140 / Front: – | – | Fans 120 | 140 / Side: – | – | Fans 120 | 140 / Rear: – | – | Fans 120 | 140 / Bottom: – | –

radiator Support

Radiators 120 | 140 / Top: Max. 240 | – | Radiators 120 | 140 / Front: – | – | Radiators 120 | 140 / Side: – | – | Radiators 120 | 140 / Rear: – | – | Radiators 120 | 140 / Bottom: – | –

clearance Conditions

Clearance / CPU Cooler Height: 72 mm | 2.83 in | Clearance / GPU Length: 324 mm | 12.76 in | Clearance / GPU Height: 147 mm | 5.79 in | Clearance / GPU Thickness: 3-slot, 62 mm | 2.44 in | Clearance / Power Supply Size: SFX | SFX-L (SFX is recommended) | Clearance / Top Radiator Length x Width: 315 x 150 mm | 12.40 x 5.51 in | Clearance / Top Radiator Radiator + Fan Thickness: 28 + 32 mm | 1.10 + 1.25 in | Clearance / Side Radiator Length x Width: – | Clearance / Bottom Radiator Length x Width: –

gpu Max Length Mm

324

cpu Cooler Max Height Mm

72

Ağırlık

4200 g

Kutu içeriği

Extra / Scope of Delivery: 1x Evolv Shift XT chassis 1x SSD bracket, Extra / Accessory Box: 6x Zip ties 1x Rear cover – Air boost 1x Rear cover – Liquid cooled 1x Phanteks badge, Extra / Screws: 9x Mainboard | SSD screws 4x Power supply screws 2x Top panel standoff (spare) 2x Rear cover screws 1x Screwdriver (PH2)

case Features

General / Side Window: No, General / Vertical GPU Support: 3-slots pre-installed Riser Cable PCI-e 4.0 X16

Üreticinin ayrıntılı teknik bilgileri

General / Model No.: PH-ES121XT_DBK01; General / UPC Code: 886523302308; General / Case Dimensions: Small: 371 x 173 x 211 mm | 14.60 x 6.81 x 8.31 in Medium: 371 x 173 x 244 mm | 14.60 x 6.81 x 9.61 in Large: 371 x 173 x 272 mm | 14.60 x 6.81 x 10.71 in; General / Form Factor: Small Form Factor (SFF); General / Mainboard Support: Mini-ITX; General / Materials: Aluminum panels | Steel chassis | Tempered glass Infinity Mirror; General / Side Window: No; General / PCI Slots: 3; General / Vertical GPU Support: 3-slots pre-installed Riser Cable PCI-e 4.0 X16; General / Internal 2.5″ Bay: 1; General / Internal 3.5″ Bay: –; General / Front I/O: 1x USB-C GEN 2 1x USB 3.0 D-RGB Mode Button D-RGB Color Button Power Button; Fans 120 | 140 / Total Fans: 2x | 2x; Fans 120 | 140 / Top: 2x | 2x; Fans 120 | 140 / Front: – | –; Fans 120 | 140 / Side: – | –; Fans 120 | 140 / Rear: – | –; Fans 120 | 140 / Bottom: – | –; Radiators 120 | 140 / Top: Max. 240 | –; Radiators 120 | 140 / Front: – | –; Radiators 120 | 140 / Side: – | –; Radiators 120 | 140 / Rear: – | –; Radiators 120 | 140 / Bottom: – | –; Clearance / CPU Cooler Height: 72 mm | 2.83 in; Clearance / GPU Length: 324 mm | 12.76 in; Clearance / GPU Height: 147 mm | 5.79 in; Clearance / GPU Thickness: 3-slot, 62 mm | 2.44 in; Clearance / Power Supply Size: SFX | SFX-L (SFX is recommended); Clearance / Top Radiator Length x Width: 315 x 150 mm | 12.40 x 5.51 in, Clearance / Top Radiator Radiator + Fan Thickness: 28 + 32 mm | 1.10 + 1.25 in; Clearance / Side Radiator Length x Width: –; Clearance / Bottom Radiator Length x Width: –; Extra / Net Weight: 4.20 kg | 9.26 lbs; Extra / Gross Weight: 5.00 kg | 11.02 lbs; Extra / Warranty: 5 Years limited Learn more; Extra / Scope of Delivery: 1x Evolv Shift XT chassis 1x SSD bracket; Extra / Accessory Box: 6x Zip ties 1x Rear cover – Air boost 1x Rear cover – Liquid cooled 1x Phanteks badge; Extra / Accessory Envelope: 1x Top filters (set of 3); Extra / Screws: 9x Mainboard | SSD screws 4x Power supply screws 2x Top panel standoff (spare) 2x Rear cover screws 1x Screwdriver (PH2)

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
