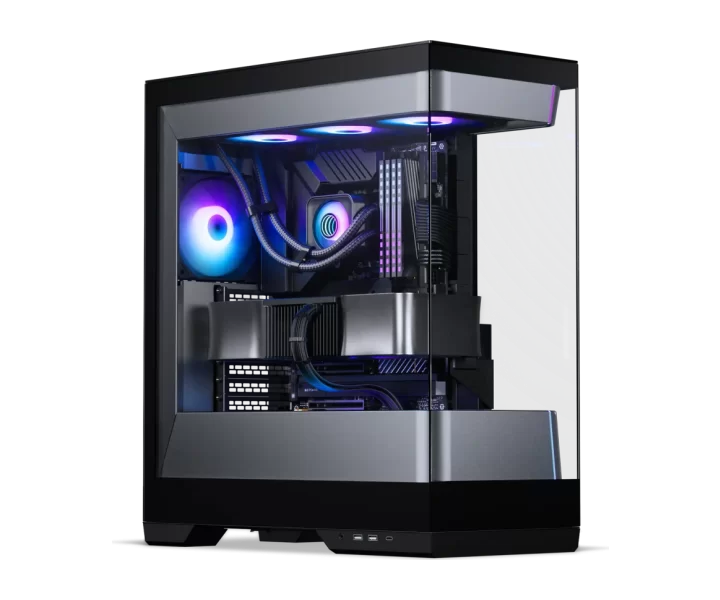

Phanteks Evolv S2 özellikleri ve fiyatları

Phanteks Evolv S2 teknik özellikleri

Model kodu

PH-ES524S2_DBK01

part Number

PH-ES524S2_DBK01

case Form Factor

Mid-Tower

motherboard Support

General / Mainboard Support: *E-ATX | ATX | Micro-ATX | Mini-ITX *Up to 280 mm wide

Boyutlar

455 x 230 x 525 mm | 17.91 x 9.05 x 20.66 in

panel Materials

Steel chassis | Tempered glass window | ABS plastic

front Io

2x USB 3.0 1x USB-C 3.2 Gen2x2 1x Microphone | Headphone combo Power button Reset button

Garanti

5 Years Limited Learn more

vertical Gpu Support

Yes Riser cable & bracket sold separately

fan Mounts

Fans 120 | 140 / Total Fans: 7 | – | Fans 120 | 140 / Top: 3 | – | Fans 120 | 140 / Front: – | – | Fans 120 | 140 / Mid Plate: 3 | – | Fans 120 | 140 / Rear: 1 | –

clearance Conditions

Clearance / CPU Cooler Height: 175 mm | 6.88 in | Clearance / GPU Length: 395 mm | 15.55 in | Clearance / GPU Width: 175 mm | 6.88 in | Clearance / Power Supply: 210 mm | 8.26 in | Clearance / Top 360 Radiator Length x Width x Height: 410 x 125 x 55 mm | 16.14 x 4.92 x 2.16 in

gpu Max Length Mm

395

cpu Cooler Max Height Mm

175

Ağırlık

9900 g

Kutu içeriği

Extra / Scope of Delivery: 1x Evolv S2 chassis 1x Storage bracket Pre-installed 1x M25-120 | Regular Pre-installed 3x M25-120 | Reverse Pre-installed, Extra / Accessory Box: 6x Zip ties 1x Stand-off removal tool, Extra / Screws: 18x Mainboard | SSD screws 4x Power supply screws 8x HDD screws 1x Mainboard stand-off

case Features

General / Vertical GPU Support: Yes Riser cable & bracket sold separately

Üreticinin ayrıntılı teknik bilgileri

General / Model No.: PH-ES524S2_DBK01; General / UPC Code: 886523303749; General / Case Dimensions: 455 x 230 x 525 mm | 17.91 x 9.05 x 20.66 in; General / From Factor: Mid-Tower; General / Mainboard Support: *E-ATX | ATX | Micro-ATX | Mini-ITX *Up to 280 mm wide; General / Rear Mainboard Support: ATX; General / Materials: Steel chassis | Tempered glass window | ABS plastic; General / Color: Black; General / Expansion Slots: 7; General / Vertical GPU Support: Yes Riser cable & bracket sold separately; General / Internal 2.5″ Positions: 2 + 1x 3.5″ HDD; General / Internal 3.5″ Positions: 2 + 0x 2.5″ SSD; General / Front I/O: 2x USB 3.0 1x USB-C 3.2 Gen2x2 1x Microphone | Headphone combo Power button Reset button; Fans 120 | 140 / Total Fans: 7 | –; Fans 120 | 140 / Top: 3 | –; Fans 120 | 140 / Front: – | –; Fans 120 | 140 / Mid Plate: 3 | –; Fans 120 | 140 / Rear: 1 | –; Radiator 120 | 140 / Top: Max. 360 | –; Radiator 120 | 140 / Front: – | –; Radiator 120 | 140 / Mid Plate: – | –; Radiator 120 | 140 / Rear: – | –; Clearance / CPU Cooler Height: 175 mm | 6.88 in; Clearance / GPU Length: 395 mm | 15.55 in; Clearance / GPU Width: 175 mm | 6.88 in; Clearance / Power Supply: 210 mm | 8.26 in; Clearance / Top 360 Radiator Length x Width x Height: 410 x 125 x 55 mm | 16.14 x 4.92 x 2.16 in; Extra / Net Weight: 9.9 kg | 21.83 lbs; Extra / Gross Weight: 11.5 kg | 25.35 lbs; Extra / Warranty: 5 Years Limited Learn more, Extra / Scope of Delivery: 1x Evolv S2 chassis 1x Storage bracket Pre-installed 1x M25-120 | Regular Pre-installed 3x M25-120 | Reverse Pre-installed; Extra / Accessory Box: 6x Zip ties 1x Stand-off removal tool; Extra / Screws: 18x Mainboard | SSD screws 4x Power supply screws 8x HDD screws 1x Mainboard stand-off

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
