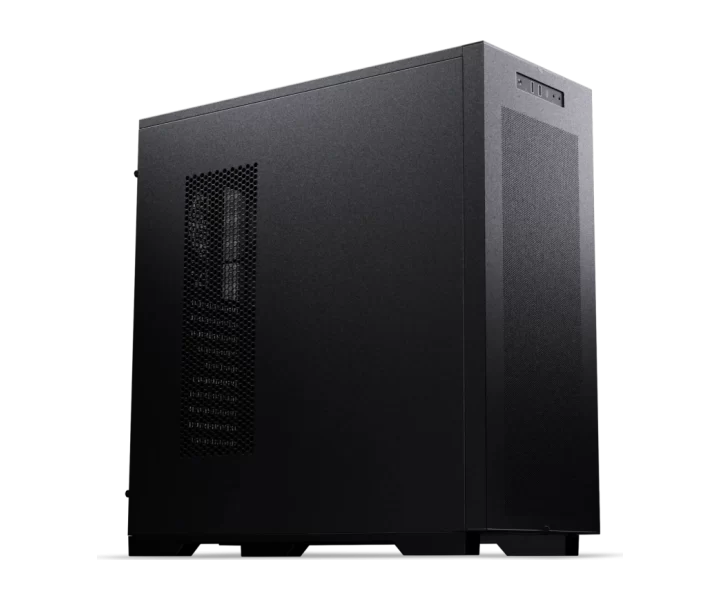

Phanteks Enthoo Pro 2 Server V2 özellikleri ve fiyatları

Phanteks Enthoo Pro 2 Server V2 teknik özellikleri

Model kodu

PH-ES620PC_BK03

part Number

PH-ES620PC_BK03

case Form Factor

Full-Tower

motherboard Support

General / Mainboard Support: SSI-EEB | XL-ATX | E-ATX | ATX | Micro-ATX | Mini-ITX

Boyutlar

570 x 240 x 550 mm | 22.44 x 9.44 x 21.65 in

panel Materials

Steel chassis | Aluminum panels | ABS plastic

front Io

2x USB 3.0 1x USB-C 3.2 Gen2x2 1x Microphone | Headphone combo Power button Reset button

Garanti

5 Years Limited Learn more

vertical Gpu Support

Yes Riser cable & bracket sold separately

fan Mounts

Fans 120 | 140 / Total Fans: 15 | 6 | Fans 120 | 140 / Top: 3 | 3 | Fans 120 | 140 / Front: 4 | 3 | Fans 120 | 140 / Side: 4 | – | Fans 120 | 140 / Optional Fan Bracket: 3 | – | Fans 120 | 140 / Rear: 1 | – | Fans 120 | 140 / Bottom: – | –

clearance Conditions

Clearance / CPU Cooler Height: 195 mm | 7.67 in | Clearance / GPU Length: 503 mm | 19.80 in | Clearance / Top Radiator Length x Width x Height: 475 x 120 x 55 mm | 18.70 x 4.72 x 2.16 in | Clearance / Side Radiator Length x Width x Height: 525 x 134 x 35 mm | 20.66 x 5.27 x 1.37 in On the right side of chassis

gpu Max Length Mm

503

cpu Cooler Max Height Mm

195

Ağırlık

11320 g

Kutu içeriği

Extra / Scope of Delivery: 1x Enthoo Pro 2 Server V2 chassis 3x SSD bracket Pre-installed 4x SSD cover Pre-installed, Extra / Accessory Box: 4x Stackable HDD bracket 4x GPU support bracket 1x Left side fan bracket 1x Server PSU bracket 6x Zip ties 1x Stand-off removal tool, Extra / Screws: 38x Mainboard | SSD screws 7x Power supply screws 7x Fan screws 10x Thumb screws 16x HDD screws 1x Mainboard stand-off

case Features

General / Vertical GPU Support: Yes Riser cable & bracket sold separately

Üreticinin ayrıntılı teknik bilgileri

General / Model No.: PH-ES620PC_BK03; General / UPC Code: 886523304173; General / Case Dimensions: 570 x 240 x 550 mm | 22.44 x 9.44 x 21.65 in; General / From Factor: Full-Tower; General / Mainboard Support: SSI-EEB | XL-ATX | E-ATX | ATX | Micro-ATX | Mini-ITX; General / Materials: Steel chassis | Aluminum panels | ABS plastic; General / Color: Black; General / Expansion Slots: 11; General / Vertical GPU Support: Yes Riser cable & bracket sold separately; General / Internal 2.5″ Positions: 11 + 2x 3.5″ HDD; General / Internal 3.5″ Positions: 10 + 3x 2.5″ SSD; General / Front I/O: 2x USB 3.0 1x USB-C 3.2 Gen2x2 1x Microphone | Headphone combo Power button Reset button; Fans 120 | 140 / Total Fans: 15 | 6; Fans 120 | 140 / Top: 3 | 3; Fans 120 | 140 / Front: 4 | 3; Fans 120 | 140 / Side: 4 | –; Fans 120 | 140 / Optional Fan Bracket: 3 | –; Fans 120 | 140 / Rear: 1 | –; Fans 120 | 140 / Bottom: – | –; Radiator 120 | 140 / Top: Max. 360 | –; Radiator 120 | 140 / Front: Max. 480 | Max. 420; Radiator 120 | 140 / Rear: Max. 120 | –; Radiator 120 | 140 / Side: Max. 480 | –; Clearance / CPU Cooler Height: 195 mm | 7.67 in; Clearance / GPU Length: 503 mm | 19.80 in; Clearance / Top Radiator Length x Width x Height: 475 x 120 x 55 mm | 18.70 x 4.72 x 2.16 in; Clearance / Side Radiator Length x Width x Height: 525 x 134 x 35 mm | 20.66 x 5.27 x 1.37 in On the right side of chassis; Extra / Net Weight: 11.32 kg | 24.95 lbs, Extra / Gross Weight: 13.14 kg | 28.96 lbs; Extra / Warranty: 5 Years Limited Learn more; Extra / Scope of Delivery: 1x Enthoo Pro 2 Server V2 chassis 3x SSD bracket Pre-installed 4x SSD cover Pre-installed; Extra / Accessory Box: 4x Stackable HDD bracket 4x GPU support bracket 1x Left side fan bracket 1x Server PSU bracket 6x Zip ties 1x Stand-off removal tool; Extra / Screws: 38x Mainboard | SSD screws 7x Power supply screws 7x Fan screws 10x Thumb screws 16x HDD screws 1x Mainboard stand-off
