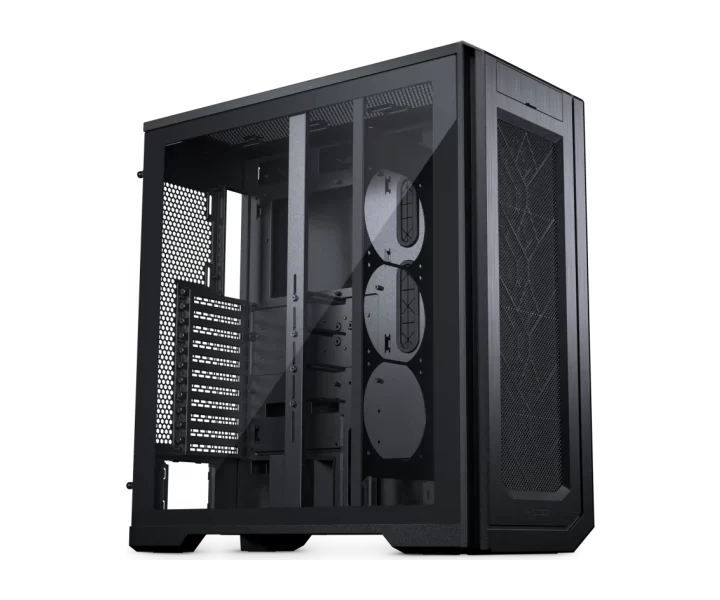

Phanteks Enthoo Pro II – Server Edition | TG özellikleri ve fiyatları

Phanteks Enthoo Pro II – Server Edition | TG teknik özellikleri

Model kodu

PH-ES620PTG_BK02

part Number

PH-ES620PTG_BK02

case Form Factor

Full Tower

motherboard Support

General / Mainboard Support: XL-ATX | SSI-EEB | E-ATX | ATX | Micro-ATX | Mini-ITX

Boyutlar

240 x 580 x 560 mm | 9.45 x 22.83 x 22.05 in

panel Materials

Steel chassis | Tempered glass

front Io

1x USB-C GEN 2 4x USB 3.0 Microphone | Headphone Combo Reset Button Power Button

Garanti

5 Years limited Learn more

vertical Gpu Support

3-slots Riser Cable sold separately

expansion Slots

11

drive Bays

General / Internal 2.5″ Bay: 11 | General / Internal 3.5″ Bay: 10 | 4 Included + 3x 2.5″ SSD

fan Mounts

Fans / Total Fans 120 mm | 140 mm: 15x | 6x | Fans / Top: 3x | 3x | Fans / Front: 4x | 3x | Fans / Side: 4x | – | Fans / Bracket: 3x | – | Fans / Rear: 1x | –

radiator Support

Radiators / Top: Max. 360 | – | Radiators / Front: Max. 480 | 420 | Radiators / Side: Max. 480 | – | Radiators / Rear: 120 | – | Radiators / Bracket: – | –

clearance Conditions

Clearance / CPU Cooler Height: 195 mm | 7.67 in | Clearance / GPU Length: 503 mm | 19.95 in | Clearance / Mainboard Height x Width: Max. 375 x 330 mm | 14.76 x 12.99 in | Clearance / Top Radiator Length x Width: 120 x 475 mm (Max. 55 mm mainboard height) | 4.72 x 18.70 in (Max. 2.16″ mainboard height) | Clearance / Front Radiator Length x Width: 142 x 475 mm | 5.59 x 18.70 in | Clearance / Side Radiator Length x Width x Height: 134 x 525 x 35 mm | 5.27 x 20.66 x 1.37 in

gpu Max Length Mm

503

cpu Cooler Max Height Mm

195

Ağırlık

13190 g

Kutu içeriği

Extra / Scope of Delivery: 1x Enthoo Pro II Server Edition chassis 1x Left side bracket 3x SSD bracket 4x HDD bracket, Extra / Accessory Box: 6x Zip ties 1x GPU support bracket 1x Server PSU bracket 1x Phanteks case badge, Extra / Screws: 18x Mainboard | SSD screws 5x Power supply screws 12x Fan screws 1x Motherboard stand-off 2x HDD cage screws

case Features

General / Side Window: Yes, General / Vertical GPU Support: 3-slots Riser Cable sold separately

Üreticinin ayrıntılı teknik bilgileri

General / Model No.: PH-ES620PTG_BK02; General / UPC Code: 886523302735; General / Case Dimensions: 240 x 580 x 560 mm | 9.45 x 22.83 x 22.05 in; General / Form Factor: Full Tower; General / Mainboard Support: XL-ATX | SSI-EEB | E-ATX | ATX | Micro-ATX | Mini-ITX; General / Materials: Steel chassis | Tempered glass; General / Side Window: Yes; General / PCI Slots: 11; General / Vertical GPU Support: 3-slots Riser Cable sold separately; General / Internal 2.5″ Bay: 11; General / Internal 3.5″ Bay: 10 | 4 Included + 3x 2.5″ SSD; General / Front I/O: 1x USB-C GEN 2 4x USB 3.0 Microphone | Headphone Combo Reset Button Power Button; Fans / Total Fans 120 mm | 140 mm: 15x | 6x; Fans / Top: 3x | 3x; Fans / Front: 4x | 3x; Fans / Side: 4x | –; Fans / Bracket: 3x | –; Fans / Rear: 1x | –; Radiators / Top: Max. 360 | –; Radiators / Front: Max. 480 | 420; Radiators / Side: Max. 480 | –; Radiators / Rear: 120 | –; Radiators / Bracket: – | –; Clearance / CPU Cooler Height: 195 mm | 7.67 in; Clearance / GPU Length: 503 mm | 19.95 in; Clearance / Mainboard Height x Width: Max. 375 x 330 mm | 14.76 x 12.99 in; Clearance / Top Radiator Length x Width: 120 x 475 mm (Max. 55 mm mainboard height) | 4.72 x 18.70 in (Max. 2.16″ mainboard height); Clearance / Front Radiator Length x Width: 142 x 475 mm | 5.59 x 18.70 in; Clearance / Side Radiator Length x Width x Height: 134 x 525 x 35 mm | 5.27 x 20.66 x 1.37 in, Extra / Net Weight: 13.19 kg | 29.08 lbs; Extra / Gross Weight: 15.47 kg | 34.11 lbs; Extra / Warranty: 5 Years limited Learn more; Extra / Scope of Delivery: 1x Enthoo Pro II Server Edition chassis 1x Left side bracket 3x SSD bracket 4x HDD bracket; Extra / Accessory Box: 6x Zip ties 1x GPU support bracket 1x Server PSU bracket 1x Phanteks case badge; Extra / Screws: 18x Mainboard | SSD screws 5x Power supply screws 12x Fan screws 1x Motherboard stand-off 2x HDD cage screws
