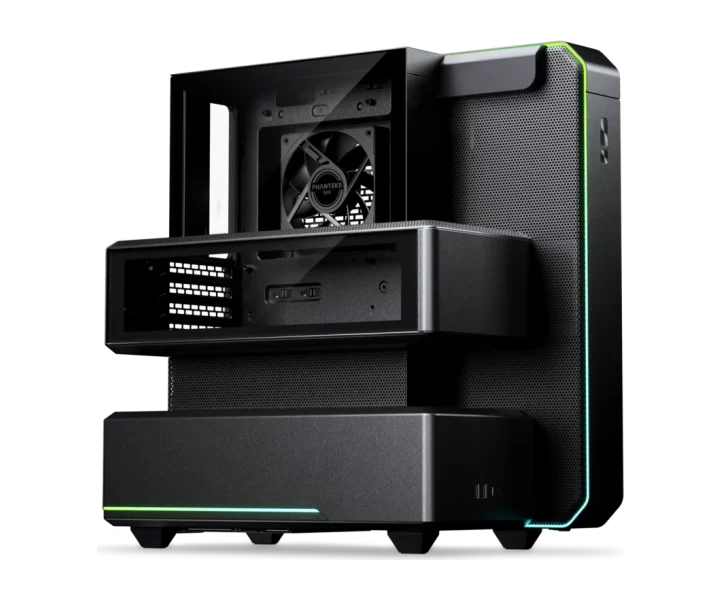

Phanteks EX5 özellikleri ve fiyatları

Phanteks EX5 teknik özellikleri

Model kodu

PH-EX526_DBK01

part Number

PH-EX526_DBK01

case Form Factor

Mid-Tower

motherboard Support

General / Mainboard Support: ATX | Micro-ATX | Mini-ITX

Boyutlar

449 x 234 x 474 mm | 17.67 x 9.21 x 18.66 in

panel Materials

Steel panels | Tempered glass window | ABS plastic

front Io

2x USB 3.0 1x USB-C 3.2 Gen2x2 1x Microphone | Headphone combo Power button Reset button

Garanti

5 Years Limited Learn more

vertical Gpu Support

No

fan Mounts

Fans 120 | 140 / Total Fans: 4 | – | Fans 120 | 140 / Top: – | – | Fans 120 | 140 / Front: – | – | Fans 120 | 140 / Side: 3+1 | – | Fans 120 | 140 / Rear: – | – | Fans 120 | 140 / Bottom: – | –

clearance Conditions

Clearance / CPU Cooler Height: 72 mm | 2.83 in | Clearance / GPU Length: 358 mm | 14.09 in | Clearance / GPU Width: 175 mm | 6.88 in | Clearance / Power Supply Length: 210 mm | 8.26 in | Clearance / GPU PCI-slot 1 Thickness: 4.6 Slots 93 mm | 3.66 in | Clearance / GPU PCI-slot 2 Thickness: 3.6 Slots 73 mm | 2.87 in | Clearance / GPU PCI-slot 3 Thickness: 2.6 Slots 53 mm | 2.08 in | Clearance / Side 360 Radiator Length x Width x Height: 413 x 134 x 60 mm | 16.25 x 5.27 x 2.36 in

gpu Max Length Mm

358

cpu Cooler Max Height Mm

72

psu Max Length Mm

210

Ağırlık

7850 g

Kutu içeriği

Extra / Scope of Delivery: 1x EX5 chassis 1x HDD bracket Pre-installed 1x SSD bracket Pre-installed, Extra / Accessory Box: 6x Zip ties 1x Stand-off removal tool 1x ARGB mainboard adapter 80 mm, Extra / Screws: 14x Mainboard | SSD screws 4x Power supply | GPU bracket screws 8x HDD screws 1x Mainboard stand-off 1x GPU bracket 241-308 mm 1x GPU bracket 275-358 mm

case Features

General / Vertical GPU Support: No

Üreticinin ayrıntılı teknik bilgileri

General / Model No.: PH-EX526_DBK01; General / UPC Code: 886523304722; General / Case Dimensions: 449 x 234 x 474 mm | 17.67 x 9.21 x 18.66 in; General / From Factor: Mid-Tower; General / Mainboard Support: ATX | Micro-ATX | Mini-ITX; General / Materials: Steel panels | Tempered glass window | ABS plastic; General / Color: Black; General / Expansion Slots: 4 Starting from first slot position; General / Vertical GPU Support: No; General / Internal 2.5″ Positions: 1 + 1x 3.5″ HDD; General / Internal 3.5″ Positions: 1 + 1x 2.5″ SSD; General / Front I/O: 2x USB 3.0 1x USB-C 3.2 Gen2x2 1x Microphone | Headphone combo Power button Reset button; Fans 120 | 140 / Total Fans: 4 | –; Fans 120 | 140 / Top: – | –; Fans 120 | 140 / Front: – | –; Fans 120 | 140 / Side: 3+1 | –; Fans 120 | 140 / Rear: – | –; Fans 120 | 140 / Bottom: – | –; Radiator 120 | 140 / Top: – | –; Radiator 120 | 140 / Front: – | –; Radiator 120 | 140 / Side: Max. 360 | –; Radiator 120 | 140 / Rear: – | –; Radiator 120 | 140 / Bottom: – | –; Clearance / CPU Cooler Height: 72 mm | 2.83 in; Clearance / GPU Length: 358 mm | 14.09 in; Clearance / GPU Width: 175 mm | 6.88 in; Clearance / Power Supply Length: 210 mm | 8.26 in; Clearance / GPU PCI-slot 1 Thickness: 4.6 Slots 93 mm | 3.66 in; Clearance / GPU PCI-slot 2 Thickness: 3.6 Slots 73 mm | 2.87 in; Clearance / GPU PCI-slot 3 Thickness: 2.6 Slots 53 mm | 2.08 in, Clearance / Side 360 Radiator Length x Width x Height: 413 x 134 x 60 mm | 16.25 x 5.27 x 2.36 in; Extra / Net Weight: 7.85 kg | 17.30 lbs; Extra / Gross Weight: 9.56 kg | 21.07 lbs; Extra / Warranty: 5 Years Limited Learn more; Extra / Scope of Delivery: 1x EX5 chassis 1x HDD bracket Pre-installed 1x SSD bracket Pre-installed; Extra / Accessory Box: 6x Zip ties 1x Stand-off removal tool 1x ARGB mainboard adapter 80 mm; Extra / Screws: 14x Mainboard | SSD screws 4x Power supply | GPU bracket screws 8x HDD screws 1x Mainboard stand-off 1x GPU bracket 241-308 mm 1x GPU bracket 275-358 mm
