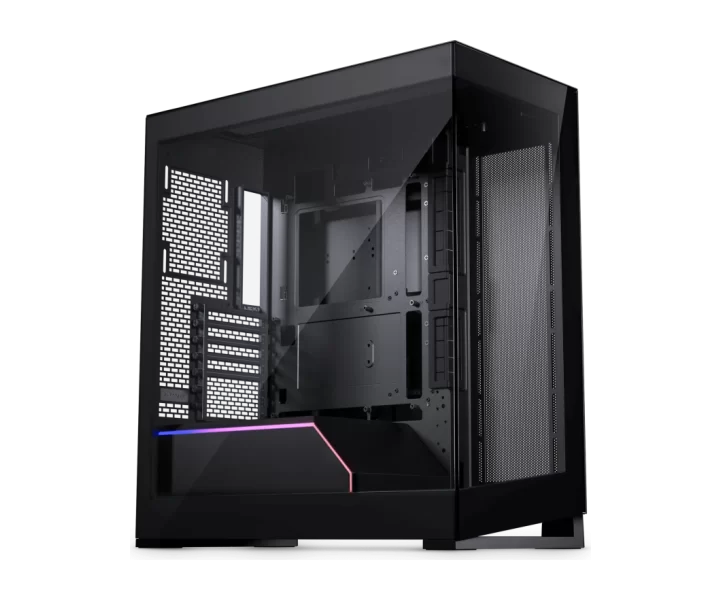

Phanteks NV5 MKII özellikleri ve fiyatları

Phanteks NV5 MKII teknik özellikleri

Model kodu

PH-NV523TG_DBK02

part Number

PH-NV523TG_DBK02

case Form Factor

Mid-Tower

motherboard Support

General / Mainboard Support: *E-ATX | ATX | Micro-ATX | Mini-ITX *Up to 280mm without GPU Support Bracket

Boyutlar

239 x 477 x 528 mm | 9.4 x 18.8 x 20.8 in

panel Materials

Steel chassis | Tempered glass

front Io

1x USB-C 3.2 Gen 2 2x USB 3.0 Microphone | Headphone D-RGB Mode Button D-RGB Color Button Power Button

Garanti

5 Years limited Learn more

vertical Gpu Support

3-slots Riser Cable sold separately

expansion Slots

7

drive Bays

General / Internal 2.5″ Bay: 4 | General / Internal 3.5″ Bay: 3

fan Mounts

Fans 120 | 140 / Total Fans: 8x | – | Fans 120 | 140 / Top: 3x | – | Fans 120 | 140 / Front: – | – | Fans 120 | 140 / Side: 3x | – | Fans 120 | 140 / Rear: 1x | – | Fans 120 | 140 / Bottom: 1x | –

radiator Support

Radiators 120 | 140 / Top: Max. 360 | – | Radiators 120 | 140 / Front: – | – | Radiators 120 | 140 / Side: Max. 360 | – | Radiators 120 | 140 / Rear: 120 | – | Radiators 120 | 140 / Bottom: – | –

clearance Conditions

Clearance / CPU Cooler Height: 180 mm | 7.08 in | Clearance / GPU Length: 440 mm | 17.32 in | Clearance / GPU Height: 170 mm | 6.69 in | Clearance / Power Supply Length: 230 mm | 9.05 in | Clearance / Top Radiator Length x Width: 134 x 430 x 62 mm | 5.27 x 16.92 x 2.44 in | Clearance / Front Radiator Length x Width: – | – | Clearance / Side Radiator Length x Width: 130 x 420 x 62 mm | 5.11 x 16.53 x 2.44 in | Clearance / Rear Radiator Length x Width: 132 x 170 mm | 5.19 x 6.69 in

gpu Max Length Mm

440

cpu Cooler Max Height Mm

180

psu Max Length Mm

230

Ağırlık

11280 g

Kutu içeriği

Extra / Scope of Delivery: 1x NV5 chassis, Extra / Accessory Box: 6x Zip ties 1x GPU support bracket, Extra / Screws: 22x Mainboard | SSD screws 4x Power supply screws 4x Thumb screws 12x Case screws 1x Motherboard stand-off 1x Stand-off removal tool

case Features

General / Side Window: Yes, General / Vertical GPU Support: 3-slots Riser Cable sold separately

Üreticinin ayrıntılı teknik bilgileri

General / Model No.: PH-NV523TG_DBK02; General / UPC Code: 886523303466; General / Case Dimensions: 239 x 477 x 528 mm | 9.4 x 18.8 x 20.8 in; General / Form Factor: Mid-Tower; General / Mainboard Support: *E-ATX | ATX | Micro-ATX | Mini-ITX *Up to 280mm without GPU Support Bracket; General / Materials: Steel chassis | Tempered glass; General / Side Window: Yes; General / PCI Slots: 7; General / Vertical GPU Support: 3-slots Riser Cable sold separately; General / Internal 2.5″ Bay: 4; General / Internal 3.5″ Bay: 3; General / Front I/O: 1x USB-C 3.2 Gen 2 2x USB 3.0 Microphone | Headphone D-RGB Mode Button D-RGB Color Button Power Button; Fans 120 | 140 / Total Fans: 8x | –; Fans 120 | 140 / Top: 3x | –; Fans 120 | 140 / Front: – | –; Fans 120 | 140 / Side: 3x | –; Fans 120 | 140 / Rear: 1x | –; Fans 120 | 140 / Bottom: 1x | –; Radiators 120 | 140 / Top: Max. 360 | –; Radiators 120 | 140 / Front: – | –; Radiators 120 | 140 / Side: Max. 360 | –; Radiators 120 | 140 / Rear: 120 | –; Radiators 120 | 140 / Bottom: – | –; Clearance / CPU Cooler Height: 180 mm | 7.08 in; Clearance / GPU Length: 440 mm | 17.32 in; Clearance / GPU Height: 170 mm | 6.69 in; Clearance / Power Supply Length: 230 mm | 9.05 in; Clearance / Top Radiator Length x Width: 134 x 430 x 62 mm | 5.27 x 16.92 x 2.44 in; Clearance / Front Radiator Length x Width: – | –; Clearance / Side Radiator Length x Width: 130 x 420 x 62 mm | 5.11 x 16.53 x 2.44 in, Clearance / Rear Radiator Length x Width: 132 x 170 mm | 5.19 x 6.69 in; Extra / Net Weight: 11.28 kg | 24.9 lbs; Extra / Gross Weight: 13.97 kg | 30.8 lbs; Extra / Warranty: 5 Years limited Learn more; Extra / Scope of Delivery: 1x NV5 chassis; Extra / Accessory Box: 6x Zip ties 1x GPU support bracket; Extra / Screws: 22x Mainboard | SSD screws 4x Power supply screws 4x Thumb screws 12x Case screws 1x Motherboard stand-off 1x Stand-off removal tool
