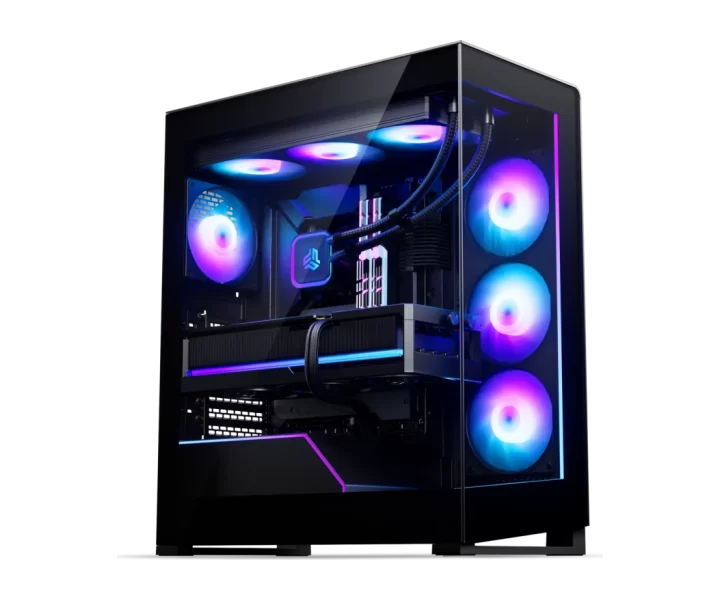

Phanteks NV5X özellikleri ve fiyatları

Phanteks NV5X teknik özellikleri

Model kodu

PH-NV523X_DBK01

part Number

PH-NV523X_DBK01

case Form Factor

Mid-Tower

motherboard Support

General / Mainboard Support: *E-ATX | ATX | Micro-ATX | Mini-ITX *Up to 280 mm wide

Boyutlar

594 x 293 x 526 mm | 23.38 x 11.53 x 20.70 in

panel Materials

Steel chassis | Aluminum panels | Tempered glass window | ABS plastic

front Io

2x USB 3.0 1x USB-C 3.2 Gen2x2 1x Microphone | Headphone combo Power button Reset button

Garanti

5 Years Limited Learn more

vertical Gpu Support

Yes Riser cable & bracket sold separately

fan Mounts

Fans 120 | 140 / Total Fans: 7 | – | Fans 120 | 140 / Top: 3 | – | Fans 120 | 140 / Front: – | – | Fans 120 | 140 / Side: 3 | – | Fans 120 | 140 / Rear: 1 | – | Fans 120 | 140 / Bottom: – | –

clearance Conditions

Clearance / CPU Cooler Height: 170 mm | 6.69 in | Clearance / GPU Length: 430 mm | 16.92 in | Clearance / GPU Width: 170 mm | 6.69 in | Clearance / Power Supply: 195 mm | 7.67 in | Clearance / Top 360 Radiator Length x Width x Height: 400 x 120 x 60 mm | 15.74 x 4.72 x 2.63 in | Clearance / Side 360 Radiator Length x Width x Height: 400 x 120 x 60 mm | 15.74 x 4.72 x 2.63 in | Clearance / Rear 120 Radiator Length x Width: 120 x 180 mm | 4.72 x 7.08 in

gpu Max Length Mm

430

cpu Cooler Max Height Mm

170

Ağırlık

8300 g

Kutu içeriği

Extra / Scope of Delivery: 1x NV5X chassis 1x S25-360 fan Pre-installed 1x S25-120 fan Pre-installed 1x SSD bracket Pre-installed 1x GPU support bracket Pre-installed, Extra / Accessory Box: 6x Zip ties 1x Stand-off removal tool, Extra / Screws: 22x Mainboard | SSD screws 4x Power supply screws 4x HDD screws 4x HDD stand-off screws 4x HDD rubber 1x Mainboard stand-off

included Fans

1x NV5X chassis 1x S25-360 fan Pre-installed 1x S25-120 fan Pre-installed 1x SSD bracket Pre-installed 1x GPU support bracket Pre-installed

case Features

General / Vertical GPU Support: Yes Riser cable & bracket sold separately

Üreticinin ayrıntılı teknik bilgileri

General / Model No.: PH-NV523X_DBK01; General / UPC Code: 886523304364; General / Case Dimensions: 594 x 293 x 526 mm | 23.38 x 11.53 x 20.70 in; General / From Factor: Mid-Tower; General / Mainboard Support: *E-ATX | ATX | Micro-ATX | Mini-ITX *Up to 280 mm wide; General / Materials: Steel chassis | Aluminum panels | Tempered glass window | ABS plastic; General / Color: Black; General / Expansion Slots: 7; General / Vertical GPU Support: Yes Riser cable & bracket sold separately; General / Internal 2.5″ Positions: 3 + 1x 3.5″ HDD; General / Internal 3.5″ Positions: 1 + 3x 2.5″ SSD; General / Front I/O: 2x USB 3.0 1x USB-C 3.2 Gen2x2 1x Microphone | Headphone combo Power button Reset button; Fans 120 | 140 / Total Fans: 7 | –; Fans 120 | 140 / Top: 3 | –; Fans 120 | 140 / Front: – | –; Fans 120 | 140 / Side: 3 | –; Fans 120 | 140 / Rear: 1 | –; Fans 120 | 140 / Bottom: – | –; Radiator 120 | 140 / Top: Max. 360 | –; Radiator 120 | 140 / Front: – | –; Radiator 120 | 140 / Side: Max. 360 Only with vertical GPU bracket | –; Radiator 120 | 140 / Rear: 120 | –; Radiator 120 | 140 / Bottom: – | –; Clearance / CPU Cooler Height: 170 mm | 6.69 in; Clearance / GPU Length: 430 mm | 16.92 in; Clearance / GPU Width: 170 mm | 6.69 in; Clearance / Power Supply: 195 mm | 7.67 in; Clearance / Top 360 Radiator Length x Width x Height: 400 x 120 x 60 mm | 15.74 x 4.72 x 2.63 in, Clearance / Side 360 Radiator Length x Width x Height: 400 x 120 x 60 mm | 15.74 x 4.72 x 2.63 in; Clearance / Rear 120 Radiator Length x Width: 120 x 180 mm | 4.72 x 7.08 in; Extra / Net Weight: 8.30 kg | 18.30 lbs; Extra / Gross Weight: 9.90 kg | 21.83 lbs; Extra / Warranty: 5 Years Limited Learn more; Extra / Scope of Delivery: 1x NV5X chassis 1x S25-360 fan Pre-installed 1x S25-120 fan Pre-installed 1x SSD bracket Pre-installed 1x GPU support bracket Pre-installed; Extra / Accessory Box: 6x Zip ties 1x Stand-off removal tool; Extra / Screws: 22x Mainboard | SSD screws 4x Power supply screws 4x HDD screws 4x HDD stand-off screws 4x HDD rubber 1x Mainboard stand-off
