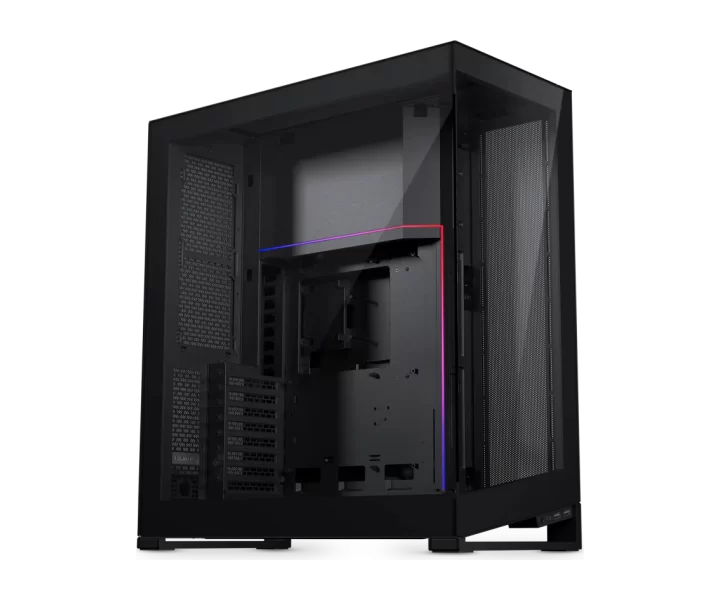

Phanteks NV7 özellikleri ve fiyatları

Phanteks NV7 teknik özellikleri

Model kodu

PH-NV723TG_DBK01

part Number

PH-NV723TG_DBK01

case Form Factor

Full Tower

motherboard Support

General / Mainboard Support: *E-ATX | ATX | Micro-ATX | Mini-ITX *Up to 277mm wide with LED Cover

Boyutlar

253 x 532 x 586 mm | 10.0 x 20.9 x 23.1 in

panel Materials

Steel chassis | Tempered glass

front Io

2x USB 3.0 USB-C Gen2 Microphone | Headphone Combo Power Button D-RGB Mode Button D-RGB Color Button D-RGB Speed Button D-RGB Channel Button

Garanti

5 Years limited Learn more

vertical Gpu Support

3-slots Riser Cable sold separately

expansion Slots

8

drive Bays

General / Internal 2.5″ Bay: 6 + 1x 3.5″ HDD | General / Internal 3.5″ Bay: 2 + 2x 2.5″ SSD

fan Mounts

Fans 120 | 140 / Total Fans: 12x | 3x | Fans 120 | 140 / Top: 3x | – | Fans 120 | 140 / Front: – | – | Fans 120 | 140 / Side: 4x | – | Fans 120 | 140 / Rear: 2x | – | Fans 120 | 140 / Bottom: 3x | 3x

radiator Support

Radiators 120 | 140 / Top: Max. 360 | – | Radiators 120 | 140 / Front: – | – | Radiators 120 | 140 / Side: Max. 360 | – | Radiators 120 | 140 / Rear: 120 | – | Radiators 120 | 140 / Bottom: Max. 360 | 280

clearance Conditions

Clearance / CPU Cooler Height: 185 mm | 7.28 in | Clearance / GPU Length: 450 mm | 17.71 in | Clearance / Power Supply Length: 255 mm | 10.03 in | Clearance / Top Radiator Length x Width: 132 x 440 mm | 5.19 x 17.32 in | Clearance / Front Radiator Length x Width: – | – | Clearance / Side Radiator Length x Width x Height: 132 x 440 x 65 mm | 5.19 x 17.32 x 2.55 in | Clearance / Rear Radiator Length x Width: 132 x 320 mm | 5.19 x 12.59 in

gpu Max Length Mm

450

cpu Cooler Max Height Mm

185

psu Max Length Mm

255

Ağırlık

16900 g

Kutu içeriği

Extra / Scope of Delivery: 1x NV7 chassis, Extra / Accessory Box: 2x Airflow covers 1x Microfiber cloth 6x Zip ties 1x GPU support bracket, Extra / Screws: 34x Mainboard | SSD screws 4x Power supply screws 4x Thumb screws 12x Case screws 9x HDD screws 1x Motherboard stand-off 1x Stand-off removal tool 1x Extra R-side panel screw

case Features

General / Side Window: Yes, General / Vertical GPU Support: 3-slots Riser Cable sold separately

Üreticinin ayrıntılı teknik bilgileri

General / Model No.: PH-NV723TG_DBK01; General / UPC Code: 886523302780; General / Case Dimensions: 253 x 532 x 586 mm | 10.0 x 20.9 x 23.1 in; General / Form Factor: Full Tower; General / Mainboard Support: *E-ATX | ATX | Micro-ATX | Mini-ITX *Up to 277mm wide with LED Cover; General / Materials: Steel chassis | Tempered glass; General / Side Window: Yes; General / PCI Slots: 8; General / Vertical GPU Support: 3-slots Riser Cable sold separately; General / Internal 2.5″ Bay: 6 + 1x 3.5″ HDD; General / Internal 3.5″ Bay: 2 + 2x 2.5″ SSD; General / Front I/O: 2x USB 3.0 USB-C Gen2 Microphone | Headphone Combo Power Button D-RGB Mode Button D-RGB Color Button D-RGB Speed Button D-RGB Channel Button; Fans 120 | 140 / Total Fans: 12x | 3x; Fans 120 | 140 / Top: 3x | –; Fans 120 | 140 / Front: – | –; Fans 120 | 140 / Side: 4x | –; Fans 120 | 140 / Rear: 2x | –; Fans 120 | 140 / Bottom: 3x | 3x; Radiators 120 | 140 / Top: Max. 360 | –; Radiators 120 | 140 / Front: – | –; Radiators 120 | 140 / Side: Max. 360 | –; Radiators 120 | 140 / Rear: 120 | –; Radiators 120 | 140 / Bottom: Max. 360 | 280; Clearance / CPU Cooler Height: 185 mm | 7.28 in; Clearance / GPU Length: 450 mm | 17.71 in; Clearance / Power Supply Length: 255 mm | 10.03 in; Clearance / Top Radiator Length x Width: 132 x 440 mm | 5.19 x 17.32 in; Clearance / Front Radiator Length x Width: – | –, Clearance / Side Radiator Length x Width x Height: 132 x 440 x 65 mm | 5.19 x 17.32 x 2.55 in; Clearance / Rear Radiator Length x Width: 132 x 320 mm | 5.19 x 12.59 in; Extra / Net Weight: 16.90 kg | 37.25 lbs; Extra / Gross Weight: 19.70 kg | 43.43 lbs; Extra / Warranty: 5 Years limited Learn more; Extra / Scope of Delivery: 1x NV7 chassis; Extra / Accessory Box: 2x Airflow covers 1x Microfiber cloth 6x Zip ties 1x GPU support bracket; Extra / Screws: 34x Mainboard | SSD screws 4x Power supply screws 4x Thumb screws 12x Case screws 9x HDD screws 1x Motherboard stand-off 1x Stand-off removal tool 1x Extra R-side panel screw
