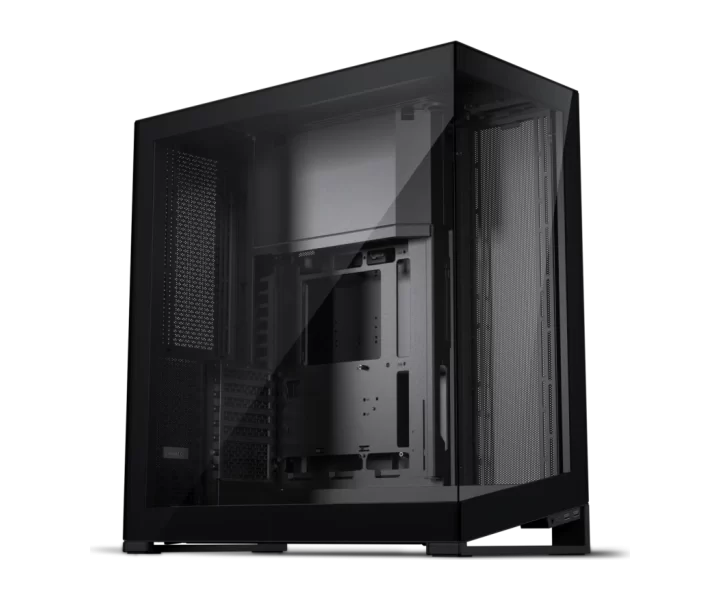

Phanteks NV9 MKII özellikleri ve fiyatları

Phanteks NV9 MKII teknik özellikleri

Model kodu

PH-NV923TG_DBK02

part Number

PH-NV923TG_DBK02

case Form Factor

Full Tower

motherboard Support

General / Mainboard Support: *E-ATX | ATX | Micro-ATX | Mini-ITX *Up to 280 mm wide

Boyutlar

575 x 280 x 615 mm | 22.63 x 11.02 x 24.21 in

panel Materials

Steel chassis | Aluminum panels | Tempered glass window | ABS plastic

front Io

2x USB 3.0 1x USB-C 3.2 Gen2x2 1x Microphone | Headphone combo Power button Reset button D-RGB mode D-RGB color D-RGB speed

Garanti

5 Years Limited Learn more

vertical Gpu Support

Yes Riser cable & bracket sold separately

fan Mounts

Fans 120 | 140 / Total Fans: 12 | 11 | Fans 120 | 140 / Top: 3 | 3 | Fans 120 | 140 / Front: – | – | Fans 120 | 140 / Side: 4 | 3 | Fans 120 | 140 / Rear: 2 | 2 | Fans 120 | 140 / Bottom: 3 | 3

clearance Conditions

Clearance / CPU Cooler Height: 205 mm | 8.07 in | Clearance / GPU Length: 490 mm | 19.29 in | Clearance / GPU Width: 205 mm | 8.07 in | Clearance / Power Supply: 210 mm | 8.26 in | Clearance / Top 360 Radiator Length x Width: 515 x 154 mm | 20.27 x 6.06 in | Clearance / Side 480 Radiator Length x Width: 525 x 154 mm | 20.66 x 6.06 in | Clearance / Rear 240 Radiator Length x Width: 325 x 154 mm | 12.79 x 6.06 in

gpu Max Length Mm

490

cpu Cooler Max Height Mm

205

Ağırlık

19520 g

Kutu içeriği

Extra / Scope of Delivery: 1x NV9 MKII chassis 1x Storage bracket Pre-installed, Extra / Accessory Box: 1x GPU support bracket 2x Airflow covers 6x Zip ties 1x D-RGB mainboard adapter 500 mm 1x Microfiber cloth, Extra / Screws: 34x Mainboard | SSD screws 4x Power supply screws 9x HDD screws 4x thumbscrews 1x Mainboard stand-off 1x Stand-off removal tool 1x Extra right-side panel screw

case Features

General / Vertical GPU Support: Yes Riser cable & bracket sold separately

Üreticinin ayrıntılı teknik bilgileri

General / Model No.: PH-NV923TG_DBK02; General / UPC Code: 886523303480; General / Case Dimensions: 575 x 280 x 615 mm | 22.63 x 11.02 x 24.21 in; General / From Factor: Full Tower; General / Mainboard Support: *E-ATX | ATX | Micro-ATX | Mini-ITX *Up to 280 mm wide; General / Materials: Steel chassis | Aluminum panels | Tempered glass window | ABS plastic; General / Color: Black; General / Expansion Slots: 8; General / Vertical GPU Support: Yes Riser cable & bracket sold separately; General / Internal 2.5″ Positions: 6 + 0x 3.5″ HDD; General / Internal 3.5″ Positions: 3 + 2x 2.5″ SSD *Max 24mm HDD height when SSDs installed; General / Front I/O: 2x USB 3.0 1x USB-C 3.2 Gen2x2 1x Microphone | Headphone combo Power button Reset button D-RGB mode D-RGB color D-RGB speed; Fans 120 | 140 / Total Fans: 12 | 11; Fans 120 | 140 / Top: 3 | 3; Fans 120 | 140 / Front: – | –; Fans 120 | 140 / Side: 4 | 3; Fans 120 | 140 / Rear: 2 | 2; Fans 120 | 140 / Bottom: 3 | 3; Radiator 120 | 140 / Top: Max. 360 | 420; Radiator 120 | 140 / Front: – | –; Radiator 120 | 140 / Side: Max. 480 | 420; Radiator 120 | 140 / Rear: Max. 240 | 280; Radiator 120 | 140 / Bottom: Max. 360 | 420; Clearance / CPU Cooler Height: 205 mm | 8.07 in; Clearance / GPU Length: 490 mm | 19.29 in; Clearance / GPU Width: 205 mm | 8.07 in; Clearance / Power Supply: 210 mm | 8.26 in; Clearance / Top 360 Radiator Length x Width: 515 x 154 mm | 20.27 x 6.06 in, Clearance / Side 480 Radiator Length x Width: 525 x 154 mm | 20.66 x 6.06 in; Clearance / Rear 240 Radiator Length x Width: 325 x 154 mm | 12.79 x 6.06 in; Extra / Net Weight: 19.52 kg | 43.03 lbs; Extra / Gross Weight: 23.00 kg | 50.70 lbs; Extra / Warranty: 5 Years Limited Learn more; Extra / Scope of Delivery: 1x NV9 MKII chassis 1x Storage bracket Pre-installed; Extra / Accessory Box: 1x GPU support bracket 2x Airflow covers 6x Zip ties 1x D-RGB mainboard adapter 500 mm 1x Microfiber cloth; Extra / Screws: 34x Mainboard | SSD screws 4x Power supply screws 9x HDD screws 4x thumbscrews 1x Mainboard stand-off 1x Stand-off removal tool 1x Extra right-side panel screw
