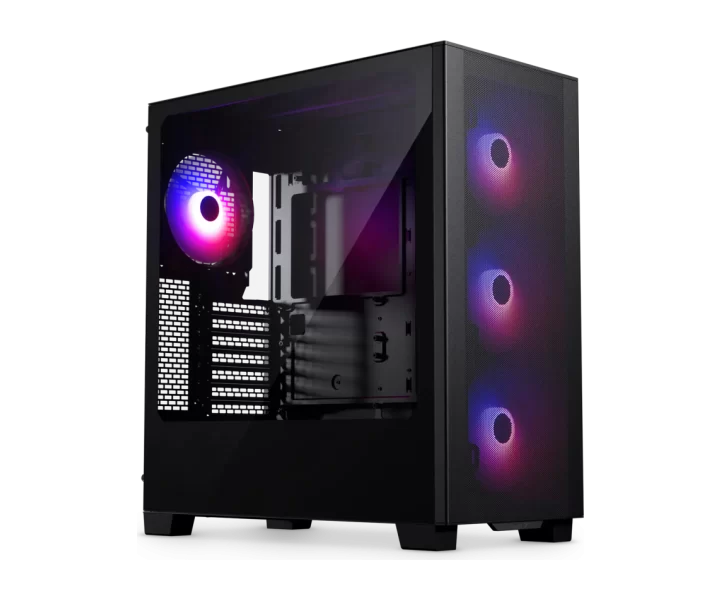

Phanteks XT Pro Ultra özellikleri ve fiyatları

Phanteks XT Pro Ultra teknik özellikleri

Model kodu

PH-XT523P1_DBK01

part Number

PH-XT523P1_DBK01

case Form Factor

Mid-Tower

motherboard Support

General / Mainboard Support: E-ATX* | ATX | Micro-ATX | Mini-ITX *Up to 280mm wide | General / Rear ATX Mainboard Support: MSI Project Zero | ASUS BTF | Gigabyte Project Stealth

Boyutlar

450 x 230 x 500 mm | 17.7×9.05×19.68 in

panel Materials

Steel chassis | Tempered glass | ABS plastic

front Io

1x USB-C 3.2 Gen2 1x USB 3.0 Microphone | Headphone combo Power Button Reset Button

Garanti

5 Years limited Learn more

vertical Gpu Support

3-slots Riser Cable sold separately

expansion Slots

7

drive Bays

General / Internal 2.5″ Bay: 5 + 1x 3.5″ HDD | General / Internal 3.5″ Bay: 2 + 3x 2.5″ SSD

fan Mounts

Fans / Total Fans 120 mm | 140 mm: 10x | 6x | Fans / Top: 3x | 2x | Fans / Front: 3x | 3x | Fans / Side: – | – | Fans / Rear: 1x | 1x | Fans / Midplate: 3x | –

radiator Support

Radiators / Top: Max. 360 | – | Radiators / Front: Max. 240 | – | Radiators / Side: – | – | Radiators / Rear: 120 | – | Radiators / Midplate: – | –

clearance Conditions

Clearance / CPU Cooler Height: 184 mm | 7.24 in | Clearance / GPU Length: 415 mm | 16.33 in | Clearance / GPU Width: 184 mm | 7.24 in | Clearance / Power Supply Length: 270 mm | 10.62 in | Clearance / Top Radiator Length x Width x Height: 415 x 138 x 60 mm | 16.33 x 5.43 x 2.36 in | Clearance / Front Radiator Length x Width: 170 x 132 mm | 6.69 x 5.19 in | Clearance / Side Radiator Length x Width: – | Clearance / Midplate Radiator Length x Width: –

gpu Max Length Mm

415

cpu Cooler Max Height Mm

184

psu Max Length Mm

270

Ağırlık

7550 g

Kutu içeriği

Extra / Scope of Delivery: 1x XT Pro Ultra chassis 4x M25-140 D-RGB fans, Extra / Accessory: 30x Zip ties, Extra / Screws: 30x Mainboard | SSD screws 4x Power supply screws 8x HDD screws 4x Thumb screws 12x 30mm Fan Screw 1x Motherboard stand-off 1x Stand-off removal tool

included Fans

1x XT Pro Ultra chassis 4x M25-140 D-RGB fans

case Features

General / Rear ATX Mainboard Support: MSI Project Zero | ASUS BTF | Gigabyte Project Stealth, General / Side Window: Yes, General / Vertical GPU Support: 3-slots Riser Cable sold separately

Üreticinin ayrıntılı teknik bilgileri

General / Model No.: PH-XT523P1_DBK01; General / UPC Code: 886523303138; General / Case Dimensions: 450 x 230 x 500 mm | 17.7×9.05×19.68 in; General / Form Factor: Mid-Tower; General / Mainboard Support: E-ATX* | ATX | Micro-ATX | Mini-ITX *Up to 280mm wide; General / Rear ATX Mainboard Support: MSI Project Zero | ASUS BTF | Gigabyte Project Stealth; General / Materials: Steel chassis | Tempered glass | ABS plastic; General / Side Window: Yes; General / PCI Slots: 7; General / Vertical GPU Support: 3-slots Riser Cable sold separately; General / Internal 2.5″ Bay: 5 + 1x 3.5″ HDD; General / Internal 3.5″ Bay: 2 + 3x 2.5″ SSD; General / Front I/O: 1x USB-C 3.2 Gen2 1x USB 3.0 Microphone | Headphone combo Power Button Reset Button; Fans / Total Fans 120 mm | 140 mm: 10x | 6x; Fans / Top: 3x | 2x; Fans / Front: 3x | 3x; Fans / Side: – | –; Fans / Rear: 1x | 1x; Fans / Midplate: 3x | –; Radiators / Top: Max. 360 | –; Radiators / Front: Max. 240 | –; Radiators / Side: – | –; Radiators / Rear: 120 | –; Radiators / Midplate: – | –; Clearance / CPU Cooler Height: 184 mm | 7.24 in; Clearance / GPU Length: 415 mm | 16.33 in; Clearance / GPU Width: 184 mm | 7.24 in; Clearance / Power Supply Length: 270 mm | 10.62 in; Clearance / Top Radiator Length x Width x Height: 415 x 138 x 60 mm | 16.33 x 5.43 x 2.36 in; Clearance / Front Radiator Length x Width: 170 x 132 mm | 6.69 x 5.19 in; Clearance / Side Radiator Length x Width: –, Clearance / Midplate Radiator Length x Width: –; Extra / Net Weight: 7.55 kg | 16.64 lbs; Extra / Gross Weight: 9.45 kg | 20.83 lbs; Extra / Warranty: 5 Years limited Learn more; Extra / Scope of Delivery: 1x XT Pro Ultra chassis 4x M25-140 D-RGB fans; Extra / Accessory: 30x Zip ties; Extra / Screws: 30x Mainboard | SSD screws 4x Power supply screws 8x HDD screws 4x Thumb screws 12x 30mm Fan Screw 1x Motherboard stand-off 1x Stand-off removal tool
