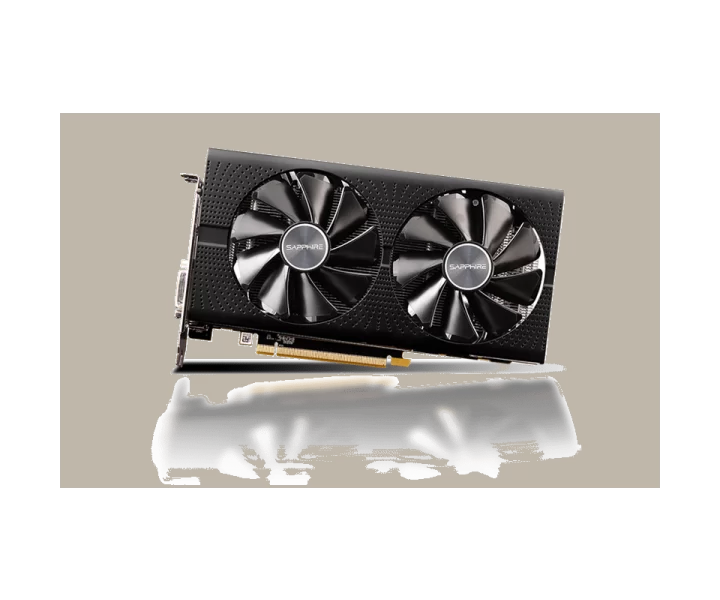

SAPPHIRE PULSE RX 580 4G G5 11265-09 özellikleri ve fiyatları

SAPPHIRE PULSE RX 580 4G G5 11265-09 teknik özellikleri

Model kodu

11265-09

part Number

11265-09

Grafik işlemci

RX 580, 14 nm FinFET 4th Graphics Core Next (GCN)

Grafik belleği (VRAM)

4 GB

Grafik belleği türü

GDDR5

Ekran kartı arayüzü

PCI-Express 3.0

GPU saat hızı ve çalışma koşulları

Up to 1366 MHz, Boost

Akış işlemcisi sayısı

2304

Görüntü çıkışları ve kullanım koşulları

1x DVI-D 2x HDMI 2x DisplayPort 1.4

En yüksek görüntü çözünürlüğü

DisplayPort: 5120×2880@60Hz HDMI: 4096×2160@60Hz DVI:2560x1600@60Hz

bios Mode

UEFI

Soğutma sistemi

Dual-X Cooling Technology Two ball bearing fan Fan Quick Connect

Boyutlar

2 Slots Occupied 230X125X40 Dimension/mm

power Consumption Conditions

<225W

Güç bağlantıları

1 x 8-pin Power Connector PCI Express® compliant motherboard with one x16 graphics slot

HDMI bağlantı sayısı

2 adet

DisplayPort bağlantı sayısı

2 adet

DirectX desteği

DirectX® 12

OpenGL sürümü

OpenGL® 4.5

Diğer ekran kartı özellikleri

Sapphire Features: Dual-X Cooling Long Life Dual Ball Bearing Fans Intelligent Fan Control III Quick Connect System Long Life Capacitor Backplate Black Diamond 4 Chokes Fuse protection, AMD Features: Radeon™ VR Ready Premium Radeon™ Software Radeon™ FreeSync Technology AMD LiquidVR™ Technology 4th Gen GCN Architecture Radeon™ Chill Radeon™ ReLive DirectX® 12 Technology AMD Eyefinity Technology (Gaming) AMD App Acceleration AMD CrossFire™ Technology AMD CrossFire™ (Bridgeless) 3rd Gen 14nm Process Technology OpenCL 2.0 OpenGL 4.5 AMD PowerTune Technology TrueAudio Next Unified Video Decoder (UVD) Video Code Engine (VCE) Virtual Super Resolution The Vulkan® API

Üreticinin ayrıntılı teknik bilgileri

GPU: RX 580, 14 nm FinFET 4th Graphics Core Next (GCN), Engine Clock: Up to 1366 MHz, Boost, Stream Processors: 2304, Memory Size/Bus: 4GB GDDR5/256-bit, Memory Clock: 7000 MHz effective, Displays: Maximum 5 Outputs, Interface: PCI-Express 3.0, Resolution: DisplayPort: 5120×2880@60Hz HDMI: 4096×2160@60Hz DVI:2560x1600@60Hz, Output: 1x DVI-D 2x HDMI 2x DisplayPort 1.4, BIOS Support: UEFI, API: OpenGL® 4.5 OpenCL 2.0 DirectX® 12 Shader Model 5.0, Game Index: 1440p gaming, Sapphire Features: Dual-X Cooling Long Life Dual Ball Bearing Fans Intelligent Fan Control III Quick Connect System Long Life Capacitor Backplate Black Diamond 4 Chokes Fuse protection, AMD Features: Radeon™ VR Ready Premium Radeon™ Software Radeon™ FreeSync Technology AMD LiquidVR™ Technology 4th Gen GCN Architecture Radeon™ Chill Radeon™ ReLive DirectX® 12 Technology AMD Eyefinity Technology (Gaming) AMD App Acceleration AMD CrossFire™ Technology AMD CrossFire™ (Bridgeless) 3rd Gen 14nm Process Technology OpenCL 2.0 OpenGL 4.5 AMD PowerTune Technology TrueAudio Next Unified Video Decoder (UVD) Video Code Engine (VCE) Virtual Super Resolution The Vulkan® API, Cooler Type: Dual-X Cooling Technology Two ball bearing fan Fan Quick Connect, Form Factor: 2 Slots Occupied 230X125X40 Dimension/mm, Power Consumption: <225W, OS: Windows® 11, 10, Windows® 7, 64bit operating system required, System Requirement: 500 Watt or greater power supply (Recommended) 1 x 8-pin Power Connector PCI Express® compliant motherboard with one x16 graphics slot
