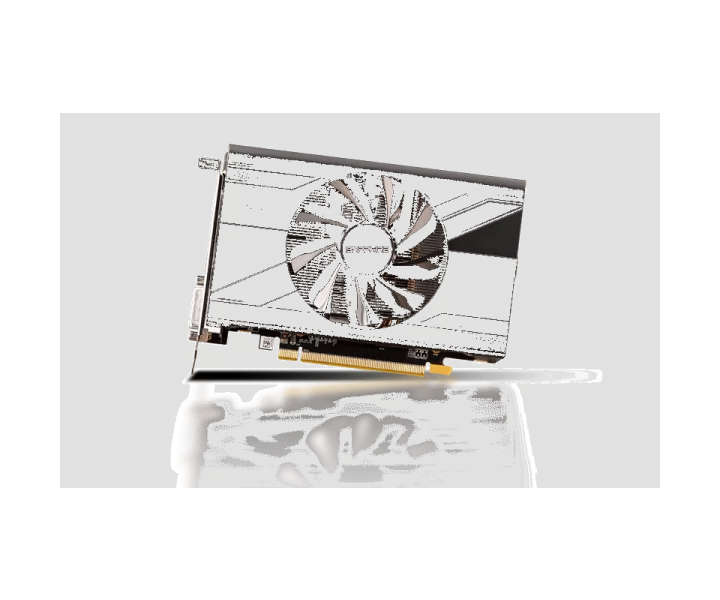

SAPPHIRE PULSE RX 570 ITX 8G G5 11266-37 özellikleri ve fiyatları

SAPPHIRE PULSE RX 570 ITX 8G G5 11266-37 teknik özellikleri

Model kodu

11266-37

part Number

11266-37

Grafik işlemci

RX 570, 14 nm FinFET 4th Graphics Core Next (GCN)

Grafik belleği (VRAM)

8 GB

Grafik belleği türü

GDDR5

Ekran kartı arayüzü

PCI-Express 3.0

GPU saat hızı ve çalışma koşulları

Up to 1244 MHz, Boost

Akış işlemcisi sayısı

2048

Görüntü çıkışları ve kullanım koşulları

1x DVI-D 1x HDMI 1x DisplayPort 1.4

En yüksek görüntü çözünürlüğü

DisplayPort: 5120×2880@60Hz HDMI: 4096×2160@60Hz DVI:2560x1600@60Hz

bios Mode

UEFI

Soğutma sistemi

Single fan

Boyutlar

2 Slots, ITX Dimension: 170(L)X112(W)X36(H)mm

Kart uzunluğu

170 mm

power Consumption Conditions

<150W

Güç bağlantıları

1 x 6-pin Power Connector PCI Express® 2

HDMI bağlantı sayısı

1 adet

DisplayPort bağlantı sayısı

1 adet

DirectX desteği

DirectX® 12

OpenGL sürümü

OpenGL® 4.5

Diğer ekran kartı özellikleri

Sapphire Features: Intelligent Fan Control III Long Life Capacitor Fuse protection, AMD Features: Radeon™ VR Ready Premium Radeon™ Software Radeon™ FreeSync Technology AMD LiquidVR™ Technology 4th Gen GCN Architecture Radeon™ Chill Radeon™ ReLive DirectX® 12 Technology AMD Eyefinity Technology (Gaming) AMD App Acceleration AMD CrossFire™ Technology AMD CrossFire™ (Bridgeless) 3rd Gen 14nm Process Technology OpenCL 2.0 OpenGL 4.5 AMD PowerTune Technology TrueAudio Next Unified Video Decoder (UVD) Video Code Engine (VCE) Virtual Super Resolution The Vulkan® API

Üreticinin ayrıntılı teknik bilgileri

GPU: RX 570, 14 nm FinFET 4th Graphics Core Next (GCN), Engine Clock: Up to 1244 MHz, Boost, Stream Processors: 2048, Memory Size/Bus: 8GB GDDR5/256-bit, Memory Clock: 6000 MHz effective, Displays: Maximum 3 Outputs, Interface: PCI-Express 3.0, Resolution: DisplayPort: 5120×2880@60Hz HDMI: 4096×2160@60Hz DVI:2560x1600@60Hz, Output: 1x DVI-D 1x HDMI 1x DisplayPort 1.4, BIOS Support: UEFI, API: OpenGL® 4.5 OpenCL 2.0 DirectX® 12 Shader Model 5.0, Game Index: 1080p gaming, Sapphire Features: Intelligent Fan Control III Long Life Capacitor Fuse protection, AMD Features: Radeon™ VR Ready Premium Radeon™ Software Radeon™ FreeSync Technology AMD LiquidVR™ Technology 4th Gen GCN Architecture Radeon™ Chill Radeon™ ReLive DirectX® 12 Technology AMD Eyefinity Technology (Gaming) AMD App Acceleration AMD CrossFire™ Technology AMD CrossFire™ (Bridgeless) 3rd Gen 14nm Process Technology OpenCL 2.0 OpenGL 4.5 AMD PowerTune Technology TrueAudio Next Unified Video Decoder (UVD) Video Code Engine (VCE) Virtual Super Resolution The Vulkan® API, Cooler Type: Single fan, Form Factor: 2 Slots, ITX Dimension: 170(L)X112(W)X36(H)mm, Power Consumption: <150W, OS: Windows® 11, 10, Windows® 7, 64bit operating system required, System Requirement: 500 Watt or greater power supply (Recommended) 1 x 6-pin Power Connector PCI Express® 2.0 or higher version based PC is required with one X16 lane graphics slot available on the motherboard in order for the card to be compatible with.

Güncel mağaza teklifleri

Son 48 saat içinde doğrulanmış, stokta mağaza teklifi yok. Eski fiyatlar güncel teklif olarak gösterilmez.
